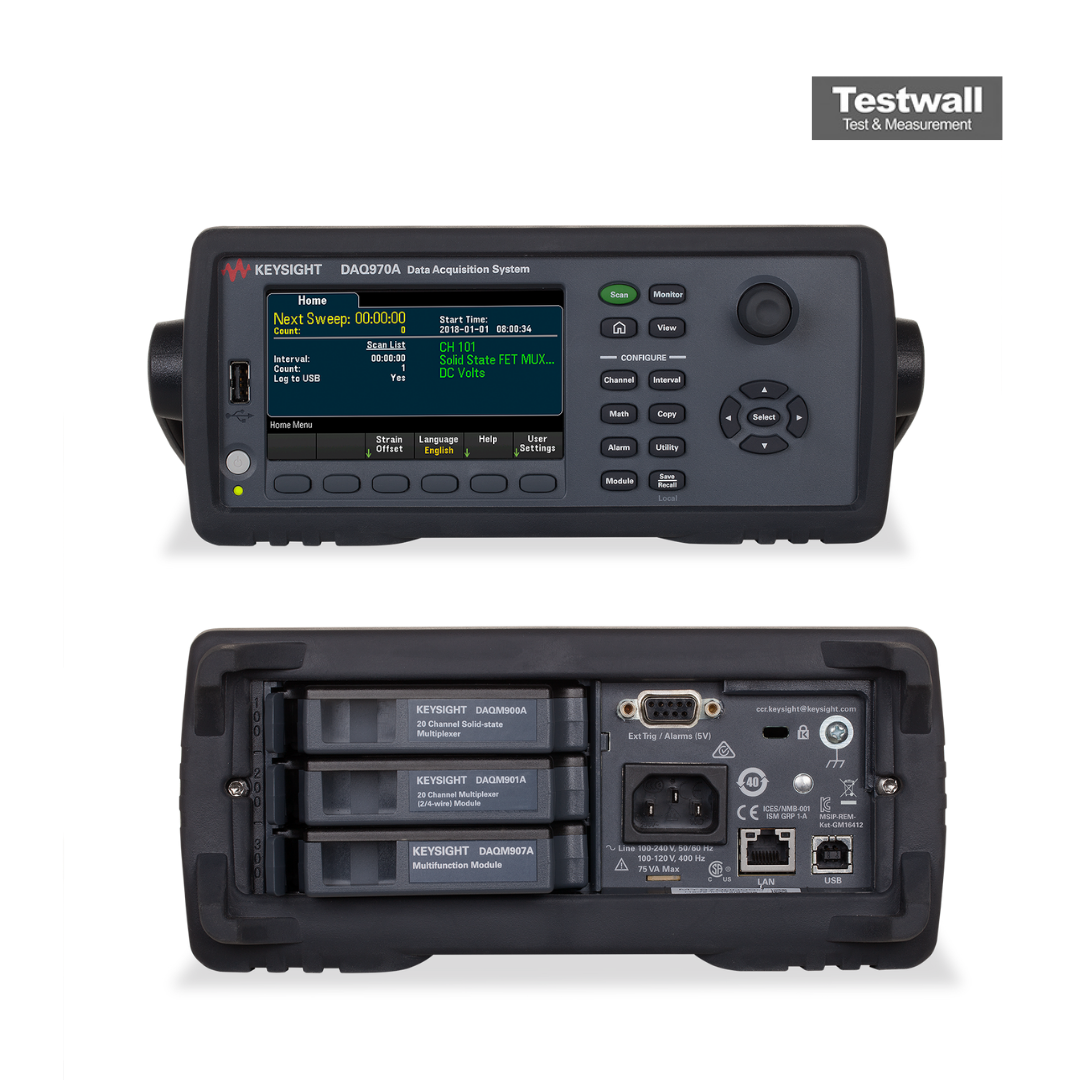

Keysight (Agilent) DAQ970A
| Atributo | Valor |
|---|---|
| Canales de medición | Hasta 120 canales con múltiples módulos de complemento |
| Resolución de voltaje DC | 100 nV |
| Precisión de voltaje DC | 0,004% de lectura + 0,0035% de rango |
| Rango de medición de temperatura | -200 °C a +1820 °C (según el tipo de sensor utilizado) |
| Velocidad de medición | Hasta 450 lecturas por segundo en modo DCV rápido |
| Interfaces de comunicación | USB, LAN (LXI Core), GPIB (opcional) |
| Pantalla | Pantalla táctil a color de 4,3 pulgadas |
| Capacidad de almacenamiento interno | Hasta 100.000 lecturas en memoria interna |
| Ranuras para módulos | 3 ranuras para módulos de complemento intercambiables |
| Fuente de alimentación | 100-240 V CA, 50/60 Hz |
Keysight (Agilent) DAQ970A Options:
- DAQ970A - Z54 - ANSI Z540 compliant calibration
| Model | DAQ970A |
|---|

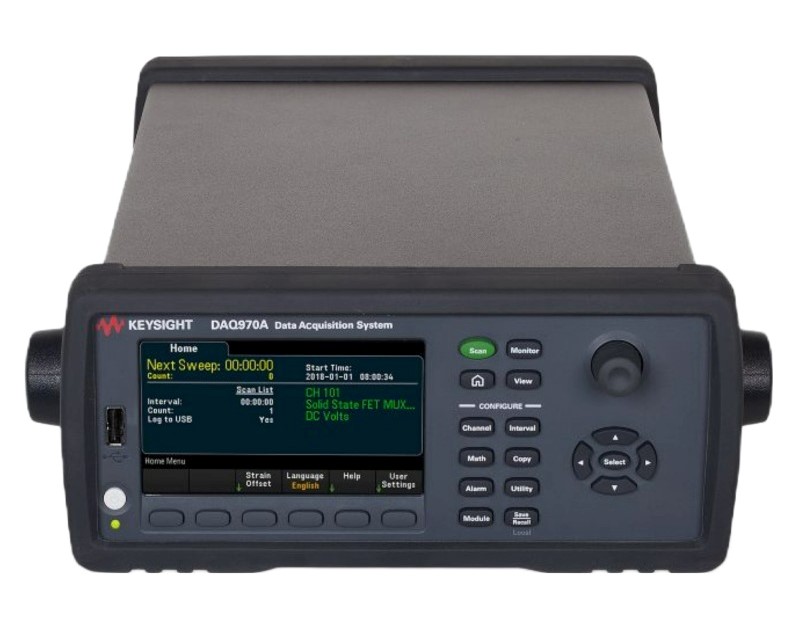

Keysight (Agilent) DAQ970A Data Acquisition System
The Keysight DAQ970A is the next-generation data acquisition (DAQ) system with a 3-slot mainframe and your choice of 8 plug-in modules. The DAQ970A features 6 ½ digits (22 bits) of resolution, 0.004% basic dcV accuracy, and ultra-low reading noise. The internal autoranging DMM directly measures 12 diffe functions, eliminating the need for expensive external signal conditioning. Three module slots and seven switch/control modules allow you to customize the DAQ970A to meet your unique requirements. The DMM is installed inside the chassis rather than in one of the slots, leaving all three mainframe slots free for switch and control modules.
Whether you're an R&D engineer working on characterizing your latest design, or a manufacturing engineer building a test system or troubleshooting a process, the DAQ970A Data Acquisition/ System offers the best combination of price and measurement performance. Configured with a 20-channel relay multiplexer, the DAQ970A becomes a powerful, low-cost data logger for simple characterization applications. A complete selection of plug-in modules gives you high quality measurement, switching, and control capabilities to choose from. Modules include both low-frequency and RF multiplexers, a matrix switch, a general-purpose switch, and a multifunction module that includes digital input/output, analog output, and totalizer capabilities. You can mix and match modules to get just the functionality you need right now €”then change or add more channels later as your application grows.
Specifications for the Keysight (Agilent) DAQ970A Data Acquisition System Include:
- 3-slot mainframe with USB and LAN
- 6 1/2-digit (22-bit) internal DMM, scanning up to 450 channels per second with new solid-state multiplexer module
- 8 switch and control plug-in modules to choose from
- Built-in signal conditioning measures thermocouples, RTDs and thermistors, AC/DC volts and current; resistance, frequency/period, diode test and capacitance
- 100k readings of non-volatile memory holds data when power is removed
- Hi/LO alarm limits on each channel, plus 4 TTL alarm outputs
- BenchVue software enabled: BenchVue DAQ Control and Analysis app enables you to create tests without programming
