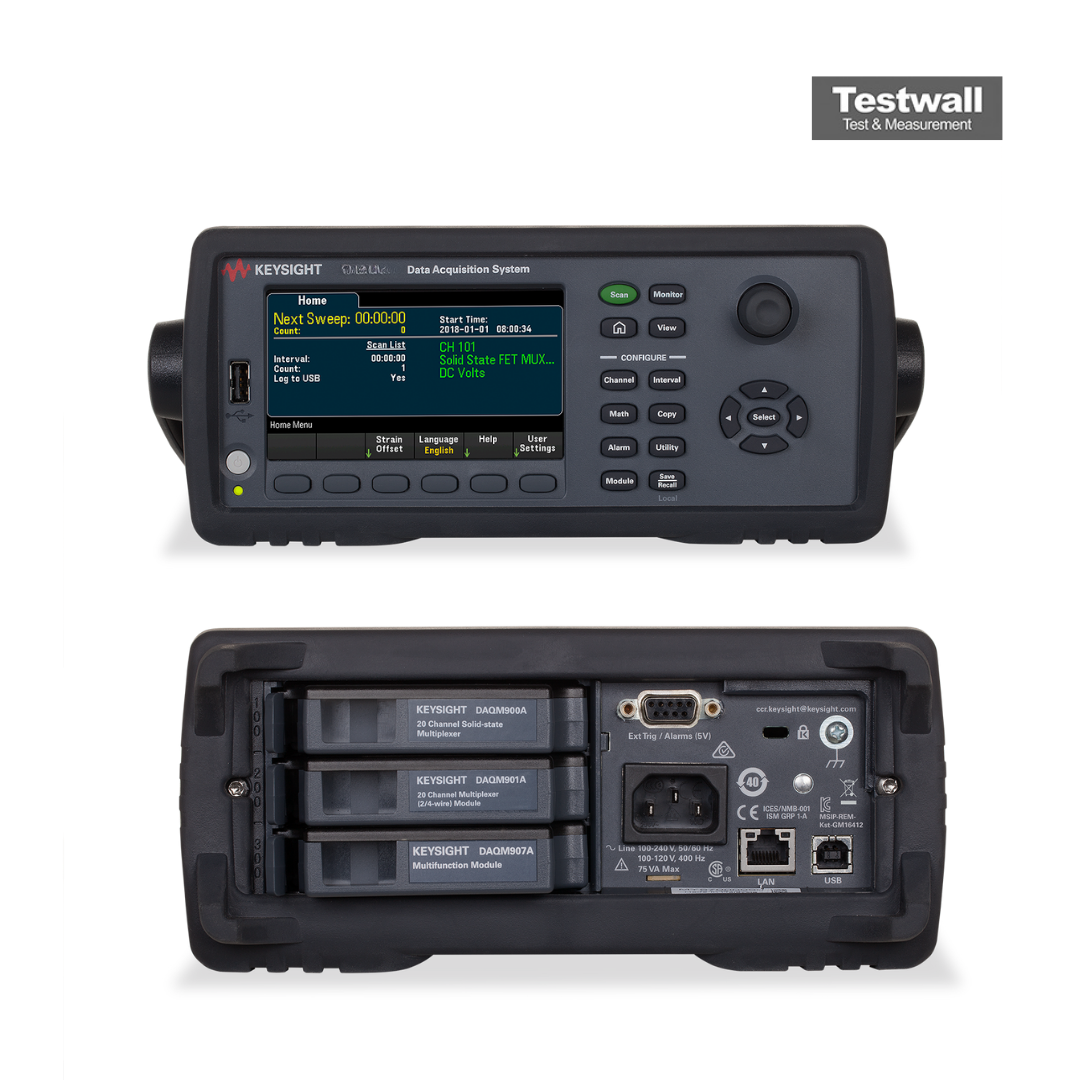

Keysight (Agilent) DAQ973A
| Atributo | Valor |
|---|---|
| Número de canales | Hasta 120 canales multiplexados (con módulos opcionales) |
| Velocidad de medición | Hasta 450 lecturas por segundo |
| Resolución de voltaje DC | Hasta 6½ dígitos |
| Rango de voltaje DC | 100 mV a 300 V |
| Rango de temperatura | -200 °C a 1820 °C (con termopares compatibles) |
| Interfaz de comunicación | USB, LAN (LXI), GPIB (opcional) |
| Ranuras para módulos | 3 ranuras para módulos de medición intercambiables |
| Memoria interna | Hasta 500.000 lecturas de memoria interna |
| Pantalla | Pantalla gráfica a color de 4,3 pulgadas |
| Alimentación eléctrica | 100 V a 240 V CA, 50/60 Hz |
Keysight (Agilent) DAQ973A Options:
- DAQ973A - Z54 - ANSI Z540 compliant calibration
| Model | DAQ973A |
|---|

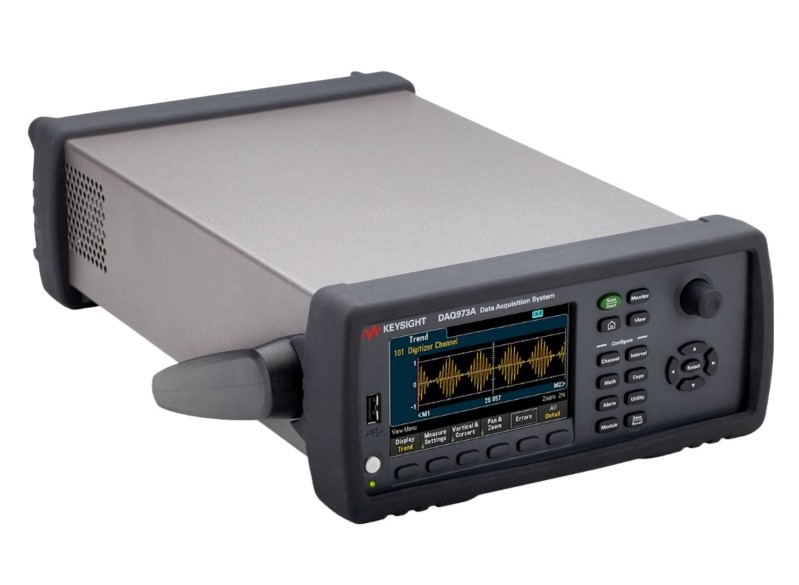

Keysight (Agilent) DAQ973A Data Acquisition System
The Keysight DAQ973A features 6 ½ digits (22 bits) of resolution, 0.003% basic dcV accuracy, and ultra-low reading noise. Combine that with scan rates of up to 450 channels/sec, and you've got the speed and accuracy you need to get the job done right the first time. Whether you need to measure temperature, ac/dc volts, resistance, frequency, or current, the DAQ973A can handle it. The internal auto-ranging DMM directly measures 12 diffe functions, eliminating the need for expensive external signal conditioning.
The Keysight DAQ973A is easy to use for a multitude of data logging and monitoring applications, either stand-alone or with a computer. Its flexible, modular design makes it scalable from 4 to 120 channels, and lets you add actuator, digital I/O, and analog output channels for simple control. Its small size, ruggedized features and USB memory port on the DAQ973A make it perfect for portable applications. Use USB, LAN or GPIB interfaces for simple connection to the PC and support of remote applications. The DAQ973A can be set up at remote locations and accessed through the Web interface on a network connection or through the USB port by copying instrument configurations and measurement data results to a USB flash drive.
Specifications for the Keysight (Agilent) DAQ973A Data Acquisition System Include:
| Resolution | 6.5 Digits |
| dcV accuracy | 0.003% |
| acV accuracy | 0.05% |
| Scan Rate | 450 ch/s |
