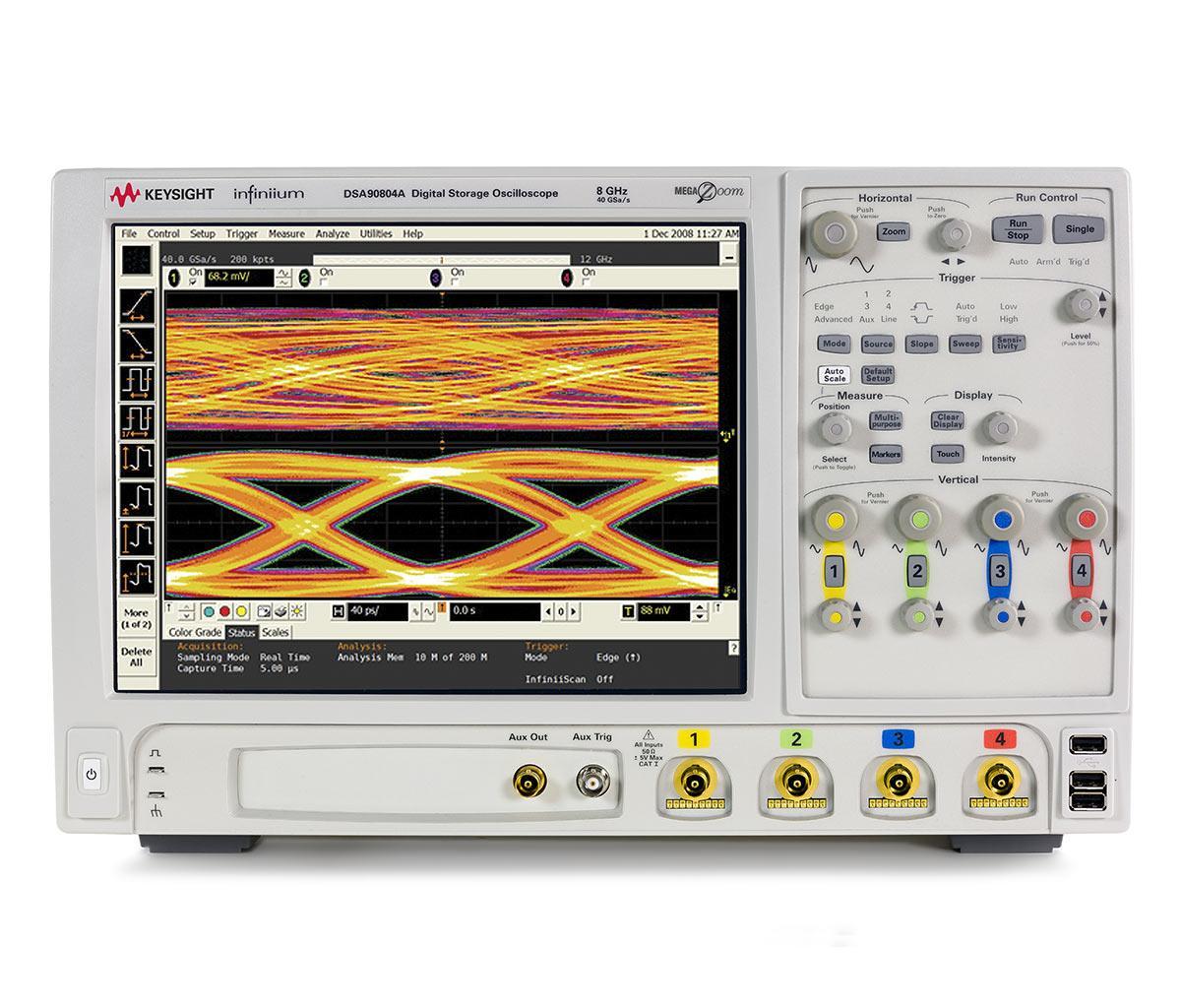

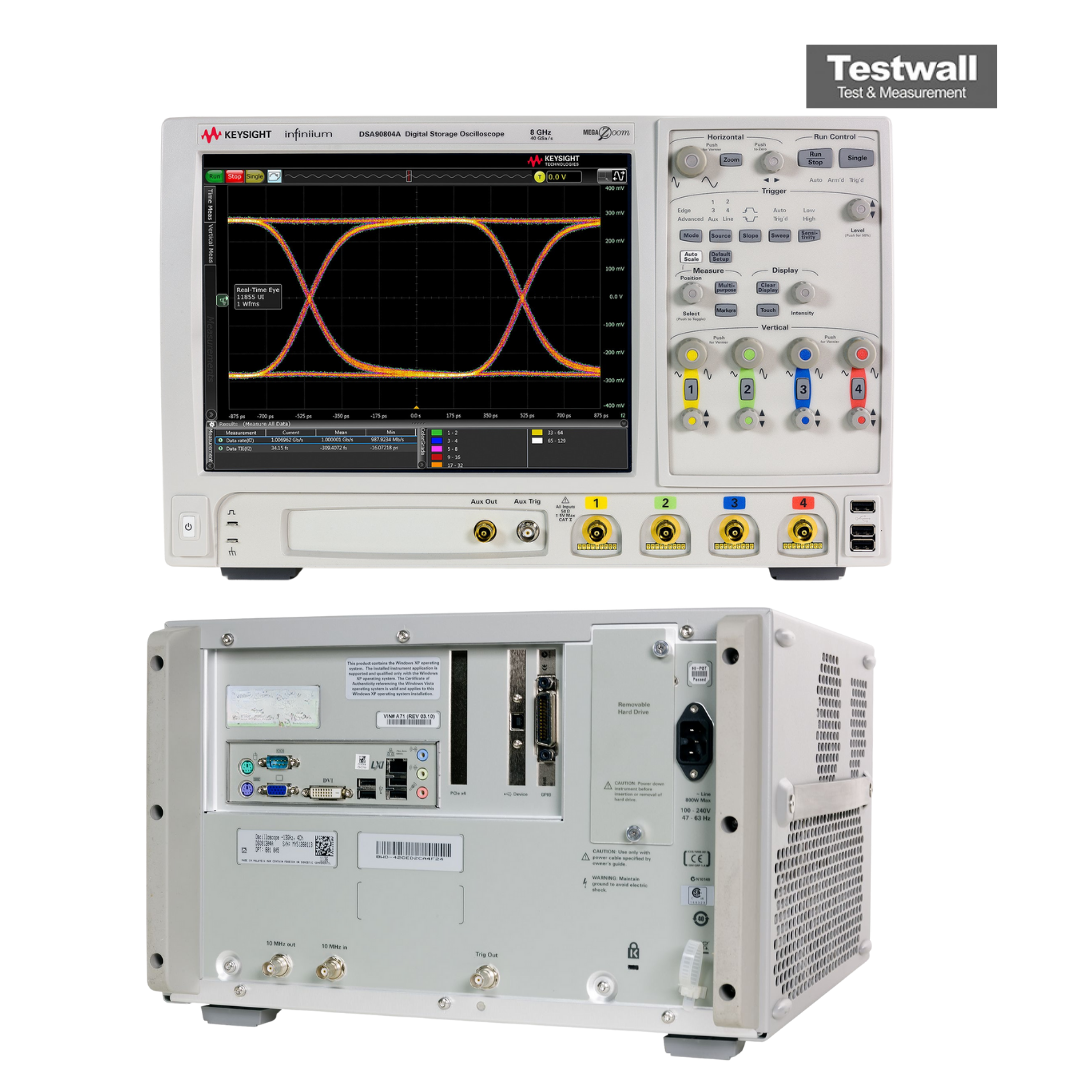

Keysight Technologies DSA90804A 4 Ch 8 GHz Digital Signal Analyzer
4 Ch 8 GHz Digital Signal Analyzer
8 GHz Ancho de banda analógico
4 canales Número de canales
40 GSa/s Tasa de muestreo máxima
hasta 2 Gpuntos por canal Profundidad de memoria
8 bits Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda analógico | 8 GHz |
| Número de canales | 4 canales |
| Tasa de muestreo máxima | 40 GSa/s |
| Profundidad de memoria | hasta 2 Gpuntos por canal |
| Resolución vertical | 8 bits |
| Sensibilidad vertical | 1 mV/div a 1 V/div |
| Rango de base de tiempos | 20 ps/div a 4 ks/div |
| Impedancia de entrada | 50 Ω |
| Pantalla | Pantalla táctil a color de 15 pulgadas |
| Sistema operativo | Windows 7 de 64 bits |
Keysight Technologies DSA90804A 4 Ch 8 GHz Digital Signal Analyzer Options:
- DSA90804A - 002 - EZJIT Jitter Analysis Software
- DSA90804A - 003 - High Speed Serial Data Analysis Software
- DSA90804A - 004 - EZJIT Plus Jitter Analysis Software
- DSA90804A - 005 - Noise Reduction and Bandwidth Control
- DSA90804A - 006 - My Infiniium Integration Package
- DSA90804A - 007 - I2C and SPI Low-speed Data Analysis
- DSA90804A - 008 - CAN Serial Data Analysis Software
- DSA90804A - 009 - InfiniiScan Event Identification Software
- DSA90804A - 010 - Infiniium User Defined Function Software
- DSA90804A - 011 - Infiniium Application Remote Program Interface Software
- DSA90804A - 020M - Acquisition Memory Upgrade: 10 MPts to 20 MPts
- DSA90804A - 021 - Ethernet Electrical Performance Validation and Compliance Software
- DSA90804A - 022 - PCI Express Electrical Performance Validation and Compliance Software
- DSA90804A - 023 - HDMI Electrical Performance Validation and Compliance Software
- DSA90804A - 024 - Fully Buffered DIMM Validation and Compliance Software
- DSA90804A - 025 - Fibre Channel Validation and Compliance Software
- DSA90804A - 026 - Serial ATA Electrical Performance Validation and Compliance Software
- DSA90804A - 027 - Serial Attached SCSI Electrical Performance Validation and Compliance Software
- DSA90804A - 028 - DisplayPort Validation and Compliance Software
- DSA90804A - 029 - USB 2.0 Validation and Compliance Software
- DSA90804A - 030 - XAUI Electrical Validation and Compliance Software with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support
- DSA90804A - 031 - DDR1 Validation and Compliance Software
- DSA90804A - 032 - DDR2 Validation and Compliance Software
- DSA90804A - 033 - DDR3 Validation and Compliance Software
- DSA90804A - 050M - Acquisition Memory Upgrade: 20 MPts to 50 MPts
- DSA90804A - 100 - Acquisition Memory Upgrade: 50 MPts to 100 MPts
- DSA90804A - 200 - Acquisition Memory Upgrade: 100 MPts to 200 MPts
- DSA90804A - 500 - Acquisition Memory Upgrade: 200 MPts to 500 MPts
- DSA90804A - 01G - Acquisition Memory Upgrade: 500 MPts to 1 GPts
- DSA90804A - 801 - 80 GBytes or greater removable hard disk drive
- DSA90804A - 803 - Additional 2 GByte CPU Memory (4 GByte total)
- DSA90804A - 805 - GPIB card
- DSA90804A - 807 - High Impedance Adapter (includes one 10073C passive probe)
- DSA90804A - 821 - Precision BNC to SMA adaptors (qty 2)
- DSA90804A - 1CM - Rackmount Kit
- DSA90804A - A6J - ANSI Z540 compliant calibration
- DSA90804A - 1A7 - ISO17025 compliant calibration
| Model | DSA90804A |
|---|
El Keysight (Agilent) DSA90804A es un analizador Infiniium de 8 GHz, 4 canales (ampliable a 13 GHz), 40 GSa/s, hasta 1 Gpt. Bajo ruido (~1,15 mVrms), análisis de jitter y protocolos integrados.
Compatible con de-embedding y software de aplicaciones seriales.
Testwall puede suministrar el Keysight (Agilent) DSA90804A usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza fiabilidad. Contáctenos para calibración o reparación del Keysight (Agilent) DSA90804A.
