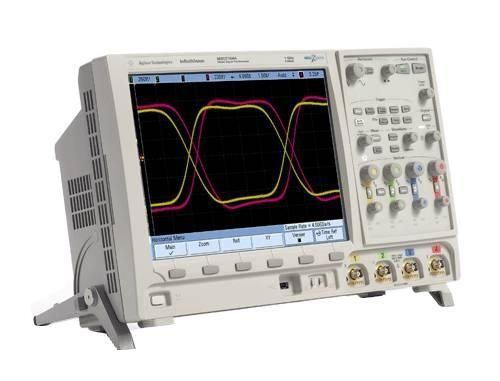

Keysight Technologies DSO7054A 4 Ch 500MHz Oscilloscope - Infiniium S Series
4 Ch 500MHz Oscilloscope - Infiniium S Series
500 MHz Ancho de banda
4 canales analógicos Número de canales
4 GSa/s Tasa de muestreo máxima
8 Mpts por canal Profundidad de memoria
8 bits Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 500 MHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 8 Mpts por canal |
| Resolución vertical | 8 bits |
| Rango de escala vertical | 1 mV/div a 5 V/div |
| Rango de base de tiempos | 1 ns/div a 50 s/div |
| Pantalla | Pantalla LCD en color de 12,1 pulgadas |
| Tasa de actualización de forma de onda | 100.000 formas de onda por segundo |
| Interfaz y conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight Technologies DSO7054A 4 Ch 500MHz Oscilloscope - Infiniium S Series Options:
- DSO7054A - SEC - Secure Environment Mode (prevents oscilloscope setup and trace information from being stored in internal memory)
- DSO7054A - A6J - ANSI Z540 Compliant Calibration
- DSO7054A - N2735 - Mixed Signal Oscilloscope (MSO) Upgrade
- DSO7054A - N2736A - Mixed Signal Oscilloscope (MSO) Upgrade
- DSO7054A - N2737A - Mixed Signal Oscilloscope (MSO) Upgrade
- DSO7054A - N5423A - I2C/SPI Serial Decode Option (Option LSS)
- DSO7054A - N5424A - CAN/LIN Automotive Triggering and Decode (Option AMS)
- DSO7054A - N5432A - FlexRay Triggering and Decode Option (Option FRS)
- DSO7054A - N5406A - FPGA Dynamic Probe for Xilinx (Option 001 Oscilloscope-locked or Option 002 PC-locked license)
- DSO7054A - N5434A - FPGA Dynamic Probe for Altera (Option 001 Oscilloscope-locked or Option 002 PC-locked license)
- DSO7054A - N5457A - UART/RS232 Trigger and Decode Option (Option 232)
| Model | DSO7054A |
|---|
The Keysight (Agilent) DSO7054A offers 500 MHz bandwidth, 4 analog channels, and a 4 GSa/s sample rate, built into a compact 6.5-inch-deep design with an XGA display.
Equipped with 8 Mpts memory, serial decode support, segmented memory, and advanced power and signal analysis tools.
Testwall puede suministrar the used Keysight (Agilent) DSO7054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Contáctenos directly if you need calibration or repair of the Keysight (Agilent) DSO7054A.
