Keysight (Agilent) E36232A
| Fabricante | Keysight (Agilent) |
| Modelo | E36232A |
| Producto | Power Supply, 60V, 2A, 200W, Single Channel |
| Tipo | Usado |

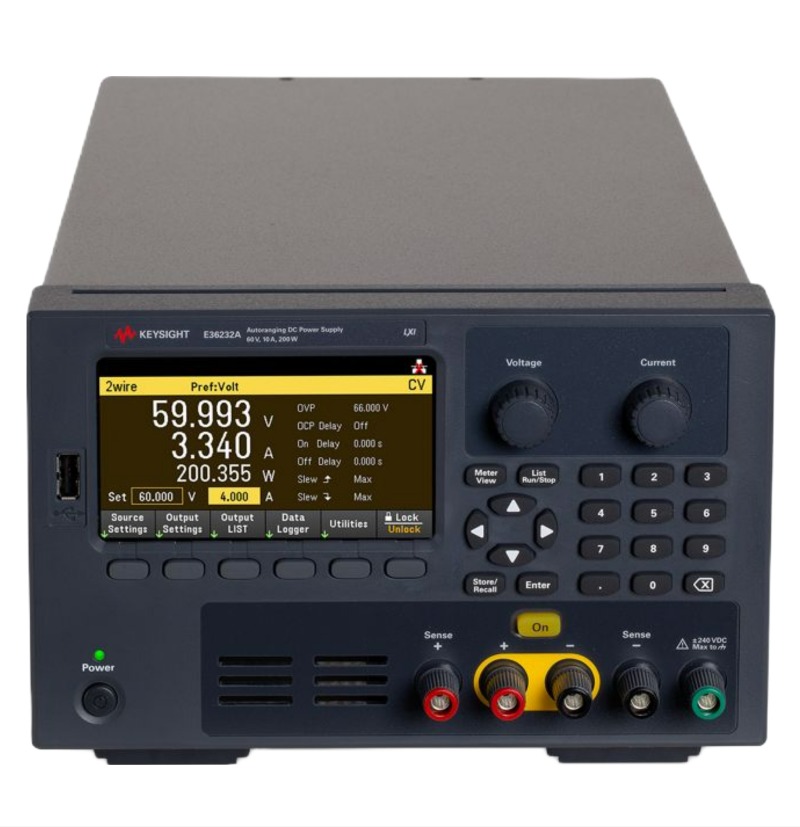

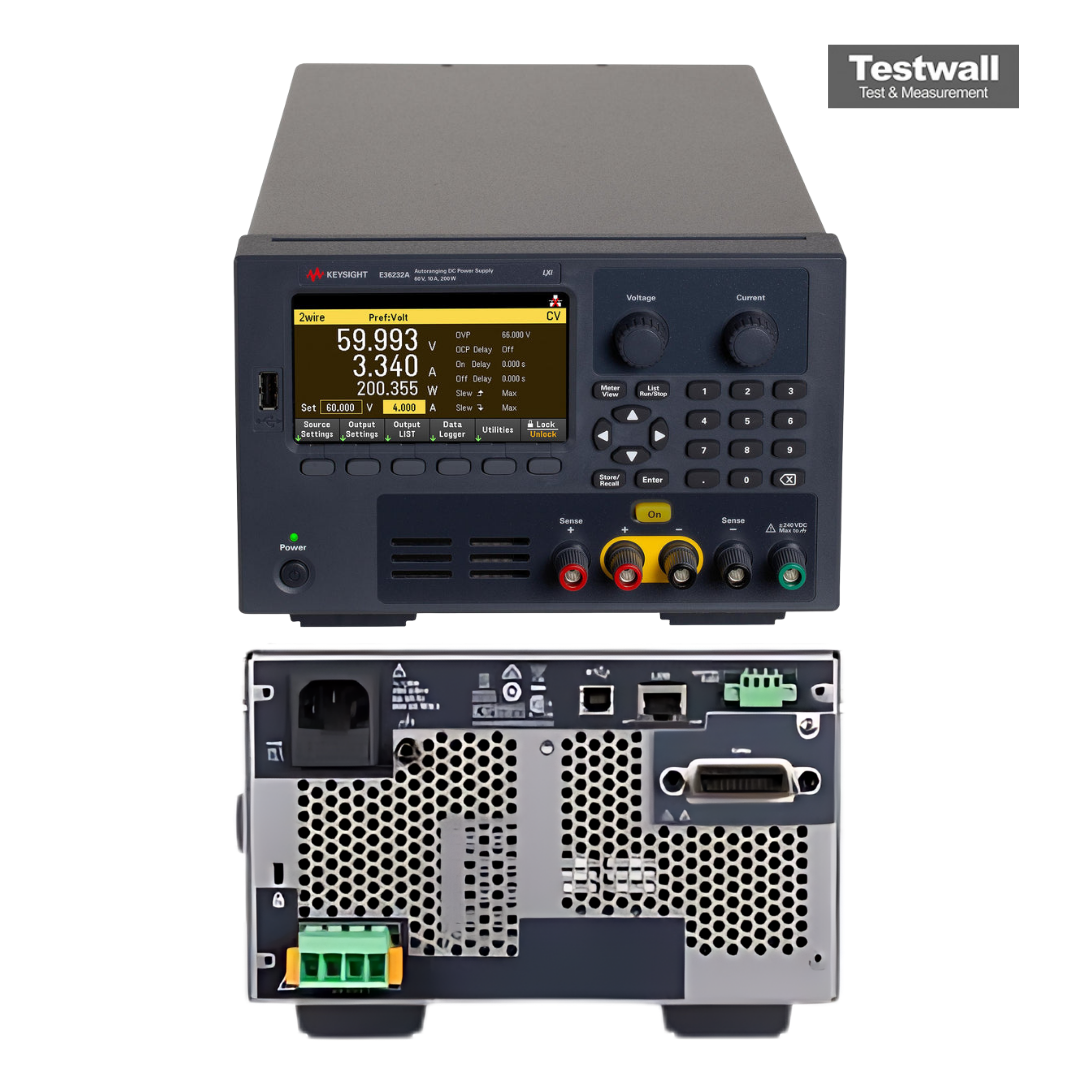

Keysight (Agilent) E36232A DC Power Supply
When you need 200W of power on the bench, the E36232A is ready for your application. With low output ripple/noise and layers of device protection, you can test with confidence and power your next insight. The E36232A is fully SCPI programmable power supplies with built-in USB, LAN, and optional GPIB interfaces. Advance features include data logging, LIST mode, and synchronization through input and output triggers. High cur applications benefit from an adjustable slew rate and remote 4-wire sense. Adjustable slew rate is necessary to avoid large inrush currents while remote sense ensures the correct output voltage at the DUT compensating for losses in the leads due to the higher currents.
Making meaningful measurements starts with powering your device correctly. The Keysight E36232A provides clean power with less than 350 µVrms ripple and noise. Precise output control allows voltage set with 0.03% accuracy and cur set with 0.1% accuracy. For currents, a low measurement range of less than 100 mA improves the measurement resolution and accuracy. Load and line regulation better than 0.01% ensure a steady output when power line and load changes occur, giving you more peace of mind. The 4.3-inch LCD color display shows the voltage and cur of all channels with diffe views. Color coding of the knobs, display, and binding posts help avoid setup and connection errors. Two individual knobs for voltage and cur with rotary encoder control for precise setting and instrument keypad allows quick adjustments and configurations in less time.
Specifications for the Keysight (Agilent) E36232A DC Power Supply Include:
| Voltage Range | 0 - 60V |
| Cur Range | 0 - 10A |
| Total Power | 200W |
| Channels | 1 |
