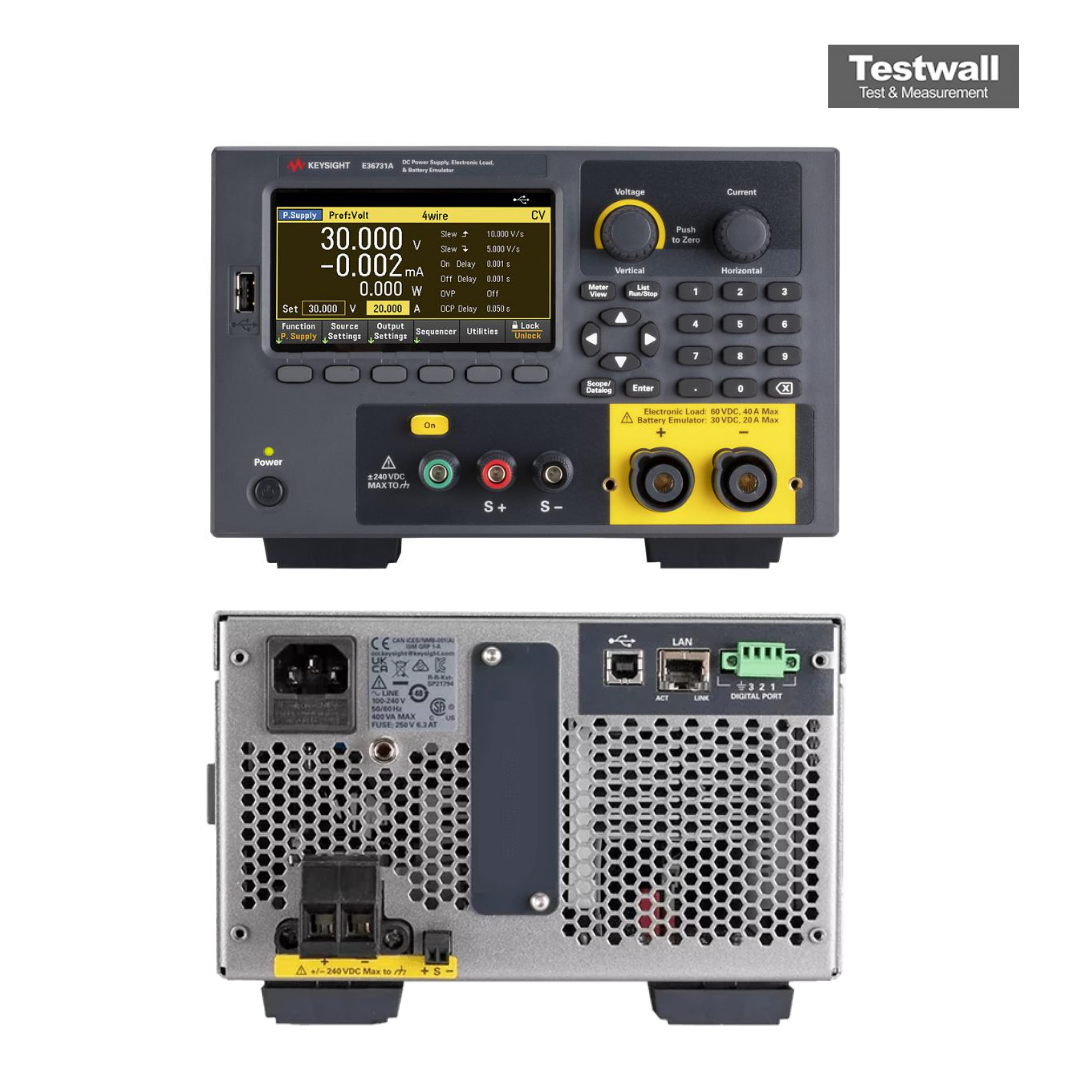

Keysight (Agilent) E36731A
| Atributo | Valor |
|---|---|
| Tensión de salida | 0 - 8 V |
| Corriente de salida máxima | 20 A |
| Potencia máxima de salida | 160 W |
| Número de canales de salida | 1 |
| Interfaz de comunicación | USB, LAN (LXI), GPIB opcional |
| Resolución de programación de tensión | 1 mV |
| Resolución de programación de corriente | 1 mA |
| Tensión de alimentación | 100 - 240 V CA, 50/60 Hz |
| Dimensiones (An x Al x Pr) | 212 mm x 88 mm x 380 mm (media unidad de rack, 2U) |
| Temperatura de funcionamiento | 0 °C a 40 °C |
Keysight (Agilent) E36731A Options:
- E36731A - SEC - NISPOM and file security
- E36731A - UK6 - Commercial calibration with test result data
- E36731ABV - E36731A Battery Emulator and Profiler with BV9211B Software (12-month Transportable License)
- BV9210B - PathWave BenchVue Advanced Battery Test And Emulation Software for Four Instrument
- BV9211B - PathWave BenchVue Advanced Battery Test And Emulation Software for a Single Instrument
- EL34GPBU - GPIB user-installable interface module
- 1CM104A - Rack mount flange kit with two flange brackets
- 1CM105A - Rack mount flange kit without handles and two flange brackets
- 1CM116A - Rack mount flange kit with one flange bracket, one half-module bracket
- 1CN107A - Handle kit with two front handles
- 1CP108A - Rack mount flange and handle kit with two brackets and front handles
| Model | E36731A |
|---|

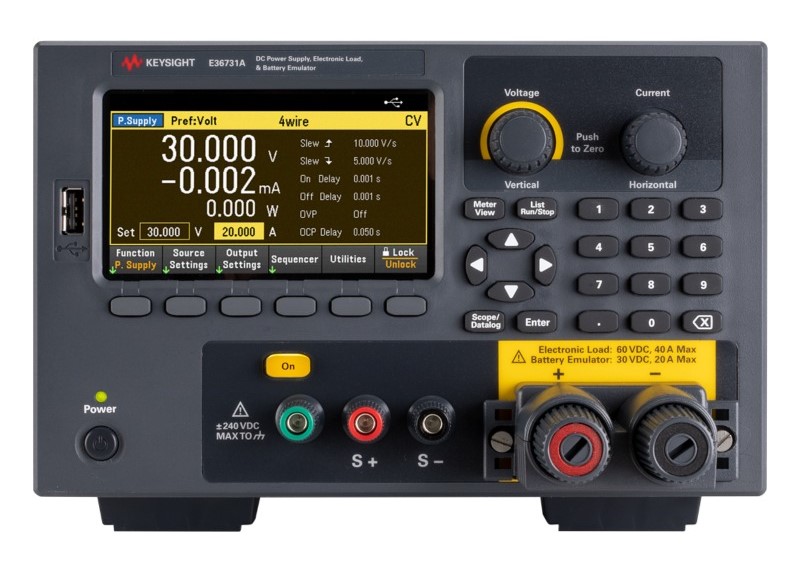

KEYSIGHT E36731A Battery Emulator & Profiler
The Keysight E36731A battery emulator and profiler is an integrated electronic load and power supply developed to use with Keysight PathWave BenchVue battery emulation software. You can perform charge, discharge of a battery, and use it to automatically create battery profiles at various test conditions, which you can then use to emulate the diffe states of charge (SoC) of your device under test (DUT). Additionally, the easy-to-use battery cycler lets you monitor battery aging and stability.
Generating a battery profile ensures you get the most accurate models for emulating your device's battery in various operating scenarios. The Keysight E36731A plus BV9211B solution creates a battery profile by discharging or charging a physical battery with either a static cur condition or a previously created dynamic loading profile. The emulation function allows you to quickly change and output the desired battery operating conditions to cover various test scenarios without having to wait for an actual battery to go through discharging or charging conditions. The Keysight E36731A ships standard with LAN and USB.
Specifications for the KEYSIGHT E36731A Battery Emulator & Profiler Include:
| Max Voltage | 30 V |
| Max Current | 20 A |
| Max Power | 200 W |
| Number of Channels | 1 Channel |
