Keysight (Agilent) E4367A
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 2 GHz - 26.5 GHz |
| Potencia de Salida Máxima | +17 dBm |
| Tipo de Instrumento | Amplificador de Señal / Módulo de Expansión para Generador de Señales |
| Compatibilidad | Compatible con la serie Keysight E4360 Generadores de Señales Modulares |
| Impedancia | 50 Ohmios |
| Conector de Salida | Tipo N (hembra) |
| Resolución de Frecuencia | 0.001 Hz |
| Rango de Nivel de Potencia | -110 dBm a +17 dBm |
| Temperatura de Operación | 0 °C a +55 °C |
| Dimensiones del Módulo | Formato de módulo simple para chasis E4360A |
Keysight (Agilent) E4367A Options:
- E4367A - 908 - Rack Mount Kit (Required for rack mounting. Standard rack mount hardware will not work.)
- E4367A - FLR - Filler Panel Kit (Required when you have only 1 module in a mainframe. Each filler panel kit contains one filler panel.)
- E4367A - 0L1 - Full documentation on CD-ROM and printed Users Guide
- E4367A - 0B0 - Full documentation on CD-ROM only. No printed documentation package.
- E4367A - 0L2 - Extra copy of standard printed documentation package
- E4367A - 900 - Power Cord, United Kingdom
- E4367A - 901 - Power Cord, Australia, New Zealand
- E4367A - 902 - Power Cord, Europe
- E4367A - 903 - Power Cord, USA, Canada – 120 V (Note: Maximum output power is limited to 600 W at 100/120 Vac. To achieve full output power of 1200 W, must use option 904 and operate at 220/240 Vac.)
- E4367A - 904 - Power Cord, USA, Canada – 240 V
- E4367A - 906 - Power Cord, Switzerland
- E4367A - 912 - Power Cord, Denmark
- E4367A - 917 - Power Cord, India
- E4367A - 918 - Power Cord, Japan
- E4367A - 919 - Power Cord, Israel
- E4367A - 920 - Power Cord, Argentina
- E4367A - 921 - Power Cord, Chile
- E4367A - 922 - Power Cord, China
- E4367A - 923 - Power Cord, South Africa
- E4367A - 927 - Power Cord, Brazil, Philippine, Thailand
- E4367A - 931 - Power Cord, Taiwan
- E4367A - 932 - Power Cord, Cambodia
- E4367A - 1A7 - ISO 17025 Calibration Certificate
- E4367A - A6J - ANSI/NCSL Z540 Calibration Certificate
- E4367A - UK6 - Commercial calibration with test results data
| Model | E4367A |
|---|

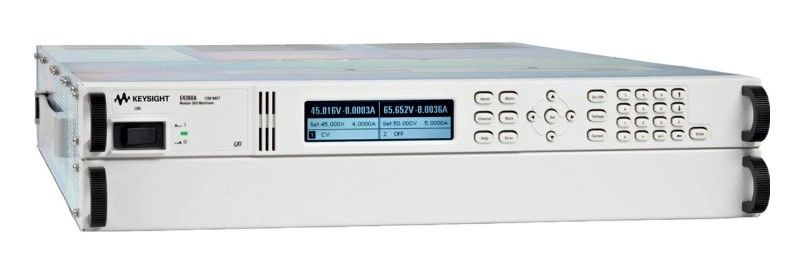

Keysight (Agilent) E4367A Solar Array Simulator
The Keysight E4367A is a preconfigured solar array simulator consisting of one E4360A mainframe and two E4361A modules. It is shipped as fully tested and assembled dual output solar array simulator. The Keysight E4361A is a 510W solar array simulator DC power module that simulates the output characteristics of a solar array. The E4361A is primarily a cur source with very low output capacitance. It offers fast I-V curve changes allowing you to accurately simulate the output of diffe solar arrays under various environmental conditions (ex. temperature, age, eclipse, spin etc.).
Additionally, the E4360A SAS mainframe saves valuable rack space with its 2U high size. LAN, USB, and GPIB interfaces are standard. To simplify test system software development, the 14360A System Control Tool software package is shipped free with every E4360A SAS mainframe. This software simplifies the programming and control of multiple SASs. It allows a single function call to setup and control up to 100 E4360 outputs in a SAS system.
Specifications for the Keysight (Agilent) E4367A Solar Array Simulator Include:
| Voltage Range | 0 - 65V |
| Cur Range | 0 - 8.5A |
| Total Power (per module) | 510W |
| Included modules | 2 |
