Keysight (Agilent) E4368A
| Atributo | Valor |
|---|---|
| Tensión de salida máxima | 60 V |
| Corriente de salida máxima | 5 A |
| Potencia de salida máxima | 300 W |
| Número de salidas | 1 |
| Interfaz de comunicación | GPIB, RS-232 |
| Tipo de fuente de alimentación | Fuente de alimentación CC programable |
| Resolución de tensión programable | 10 mV |
| Resolución de corriente programable | 5 mA |
| Tensión de entrada (CA) | 100 - 240 V CA, 50/60 Hz |
| Factor de forma | Media anchura de rack 2U |
Keysight (Agilent) E4368A Options:
- E4368A - 908 - Rack Mount Kit (Required for rack mounting. Standard rack mount hardware will not work.)
- E4368A - FLR - Filler Panel Kit (Required when you have only 1 module in a mainframe. Each filler panel kit contains one filler panel.)
- E4368A - 0L1 - Full documentation on CD-ROM and printed Users Guide
- E4368A - 0B0 - Full documentation on CD-ROM only. No printed documentation package.
- E4368A - 0L2 - Extra copy of standard printed documentation package
- E4368A - 900 - Power Cord, United Kingdom
- E4368A - 901 - Power Cord, Australia, New Zealand
- E4368A - 902 - Power Cord, Europe
- E4368A - 903 - Power Cord, USA, Canada – 120 V (Maximum output power is limited to 600 W at 100/120 Vac)
- E4368A - 904 - Power Cord, USA, Canada – 240 V
- E4368A - 906 - Power Cord, Switzerland
- E4368A - 912 - Power Cord, Denmark
- E4368A - 917 - Power Cord, India
- E4368A - 918 - Power Cord, Japan
- E4368A - 919 - Power Cord, Israel
- E4368A - 920 - Power Cord, Argentina
- E4368A - 921 - Power Cord, Chile
- E4368A - 922 - Power Cord, China
- E4368A - 923 - Power Cord, South Africa
- E4368A - 927 - Power Cord, Brazil, Philippine, Thailand
- E4368A - 931 - Power Cord, Taiwan
- E4368A - 932 - Power Cord, Cambodia
- E4368A - 1A7 - ISO 17025 Calibration Certificate
- E4368A - A6J - ANSI/NCSL Z540 Calibration Certificate
- E4368A - UK6 - Commercial calibration with test results data
| Model | E4368A |
|---|

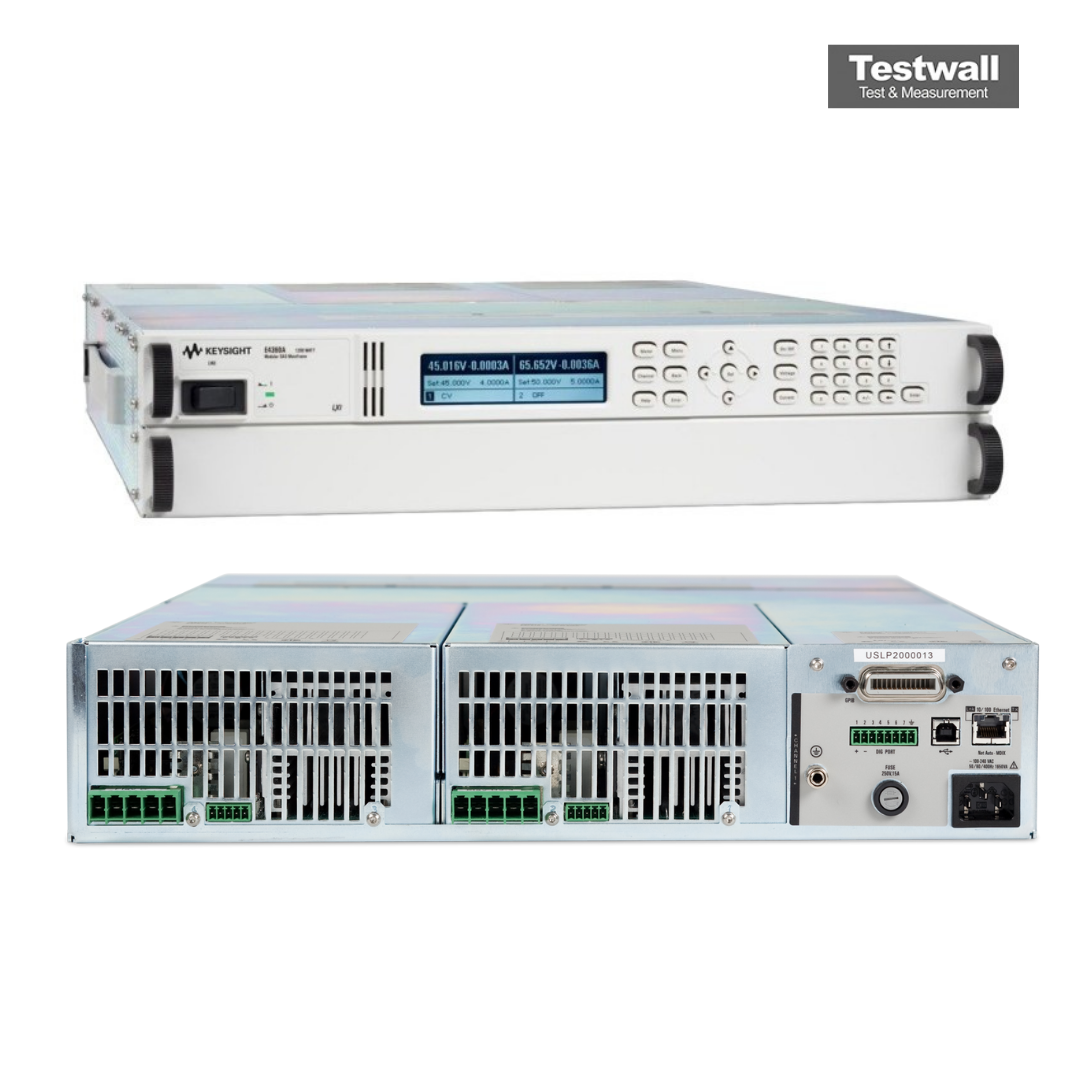

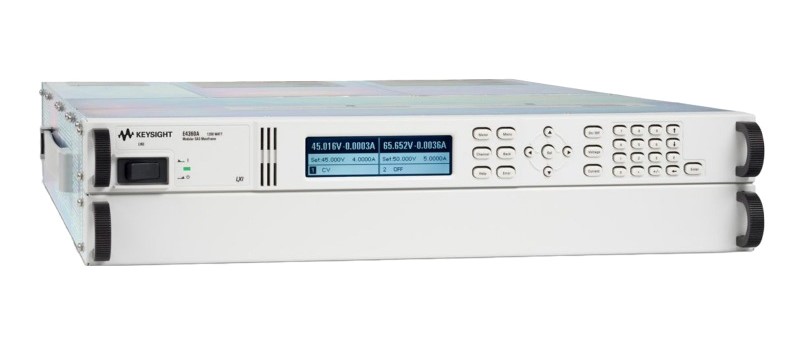

Keysight (Agilent) E4368A Solar Array Simulator
The Keysight E4368A is a preconfigured solar array simulator consisting of one E4360A mainframe and two E4362A modules. It is shipped as fully tested and assembled dual output solar array simulator. The Keysight E4362A is a 600W solar array simulator DC power module that simulates the output characteristics of a solar array. The E4362A is primarily a cur source with very low output capacitance. It offers fast I-V curve changes allowing you to accurately simulate the output of diffe solar arrays under various environmental conditions (ex. temperature, age, eclipse, spin etc.).
Additionally, the E4360A SAS mainframe saves valuable rack space with its 2U high size. LAN, USB, and GPIB interfaces are standard. To simplify test system software development, the 14360A System Control Tool software package is shipped free with every E4360A SAS mainframe. This software simplifies the programming and control of multiple SASs. It allows a single function call to setup and control up to 100 E4360 outputs in a SAS system.
Specifications for the Keysight (Agilent) E4368A Solar Array Simulator Include:
| Voltage Range | 0 - 130V |
| Cur Range | 0 - 5A |
| Total Power (per module) | 600W |
| Included modules | 2 |
