Keysight (Agilent)

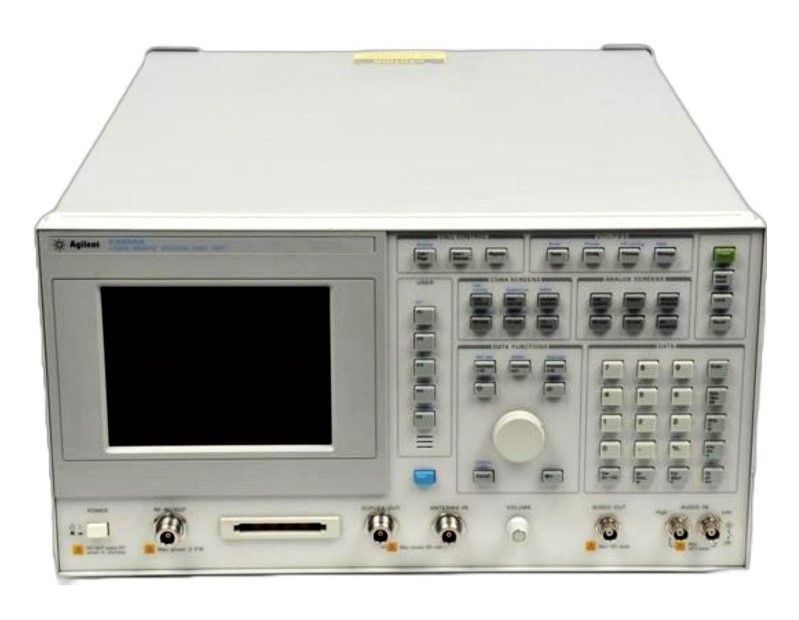

Keysight (Agilent) E8285A
CDMA PCS Mobile Station Test Set
800 MHz / 1900 MHz (AMPS/CDMA) Rango de Frecuencia
-110 dBm a +10 dBm Potencia de Salida RF
AMPS, CDMA (IS-95), CDMA2000 1xRTT Estándares Soportados
-60 dBm a +40 dBm Rango de Medición de Potencia
50 Ohmios Impedancia
| Atributo | Valor |
|---|---|
| Rango de Frecuencia | 800 MHz / 1900 MHz (AMPS/CDMA) |
| Potencia de Salida RF | -110 dBm a +10 dBm |
| Estándares Soportados | AMPS, CDMA (IS-95), CDMA2000 1xRTT |
| Rango de Medición de Potencia | -60 dBm a +40 dBm |
| Impedancia | 50 Ohmios |
| Interfaz de Control | GPIB (IEEE-488), RS-232 |
| Alimentación Eléctrica | 100 - 240 V CA, 50/60 Hz |
| Dimensiones (An x Al x Pr) | 426 mm x 222 mm x 576 mm |
| Peso | Aproximadamente 23 kg |
| Temperatura de Funcionamiento | 0 °C a 55 °C |
Keysight (Agilent) E8285A Options:
- E8285A - 102 - Spectrum Analyzer
- E8285A - 011 - CCITT Weighting Filter (for TACS phones)
- E8285A - 013 - C-Message Weighting Filter
- 83217A - 001 - AMPS/NAMPS/CDMA Test Software
- 83217A - 003 - JTACS/NTACS/CDMA Test Software
- 83217A - 004 - CDMA/PCS/AMPS/NAMPS Test Software
| Model | E8285A |
|---|
The HP/Agilent Technologies E8285A CDMA/PCS mobile station test set provides CDMA mobile phone manufacturers with increased measurement speed, improved accuracy, and flexibility to increase test throughput and product quality. Built from the industry standard Agilent Technologies 8924C, the HP/Agilent E8285A offers proven performance and reliability with increased capabilities for manufacturing all cur types of TIA/EIA-95 based CDMA mobile phones in a single test set. The Agilent E8285A additionally provides flexible base station emulation and a large set of capabilities which enables CDMA mobile phone designers to produce high quality designs in less time.
Other features and specifications include:
- CDMA cellular, CDMA PCS, and analog cellular coverage in one One-button call setup
- Built in AWGN source for calibrated E b /N t receiver testing
- Flexible base station emulation
- Extremely fast CDMA and analog testing
- High accuracy and repeatability
- Gated power and open loop response graphical measurements
- Simultaneous receiver and transmitter measurements
- Electronic attenuator and RF front end
- CDMA and analog authentication testing
- CDMA SMS testing
- Soft and softer handoffs
