Keysight (Agilent) J7211A
| Atributo | Valor |
|---|---|
| Rango de atenuación | 0 dB a 110 dB |
| Paso de atenuación | 1 dB |
| Rango de frecuencia | DC a 4 GHz |
| Impedancia | 50 Ohmios |
| Potencia máxima de entrada | 1 W (30 dBm) |
| Conector | SMA (hembra) |
| Tensión máxima de CC | ±50 V |
| Precisión de atenuación | ±1 dB (típico a 4 GHz) |
| Temperatura de funcionamiento | 0 °C a +55 °C |
| Dimensiones (An x Al x Pr) | 212 mm x 88 mm x 272 mm |
Keysight (Agilent) J7211A Options:
- J7211A - 001 - Type-N (f) connector
- J7211A - 002 - SMA (f) connector
- J7211A - UK6 - Commercial calibration certificate with test data
- J7211A - 908 - Rackmount Kit, 1 instrument
- J7211A - 909 - Rackmount Kit, 2 instruments
| Model | J7211A |
|---|

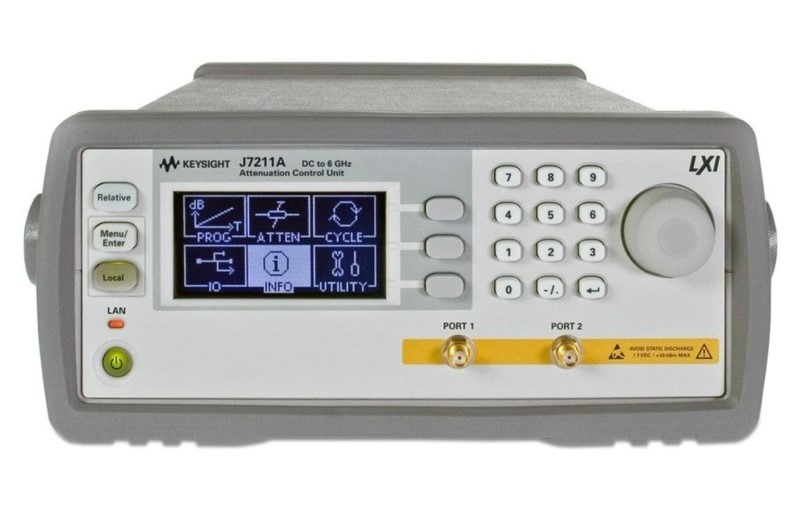

KEYSIGHT J7211A
The Keysight J7211A attenuation control unit provides an integrated solution for R&D and manufacturing engineers in wireless communication, aerospace and defense and electronic component industries. Operating from DC to 6 GHz, the J7211A provides attenuation up to 121 dB with a 1 dB step size. A unique attenuation sweep function lets users select the start / stop attenuation, step size, dwell time and number of cycles for your application. The Keysight J7211A offers exceptional < 0.03 dB insertion loss repeatability per section for the entire 5 million cycles which reduces your cost of ownership.
Designed in a compact half-rack, 2 unit high-form factor, the Keysight J7211A ensures ease-of-use in benchtop applications and greater efficiency and throughput in ATE testing. GPIB, USB and LAN connectivity (LXI Class C Compliant) allow easy remote control and triggering.
Features and specifications of the Keysight J7211A Attenuation Control Unit include:
Attenuator Control Capability
- Attenuation sweep function €“ define the sweep time, number of cycles and step size for your application
- Relative attenuation step function - set attenuation relative to any value
- Attenuation steps - 0 dB to 121 dB, 121 dB to 0 dB, or back and forth for the preset number of cycles (1 to 1000)
- User selectable sweep time - 50 ms to 10 s; 50 ms incremental
Specifications
- 0.03 dB insertion loss repeatability per section for the entire 5 million cycles
- Excellent attenuation accuracy and flatness
Remote Control and Programming
- LXI Class C compliant for easy remote integration
