Keysight (Agilent) M9384B
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 1 MHz a 44 GHz |
| Potencia de salida máxima | +23 dBm (típico) |
| Resolución de frecuencia | 0,001 Hz |
| Pureza espectral (ruido de fase) | -135 dBc/Hz a 10 kHz de separación (a 1 GHz) |
| Factor de forma | PXIe (módulo de 3 ranuras) |
| Modulación soportada | AM, FM, PM, pulso y modulación I/Q |
| Ancho de banda de modulación I/Q | Hasta 2 GHz |
| Conector de salida RF | 2,92 mm (macho) |
| Interfaz de control | PXIe, compatible con controlador embebido o externo vía MXI |
| Alimentación requerida | Suministrada por chasis PXIe |
Keysight (Agilent) M9384B Options:
- M9384B - F14 - Frequency range 1 MHz to 14 GHz (M9384B only)
- M9384B - F20 - Frequency range 1 MHz to 20 GHz (M9384B only)
- M9384B - F32 - Frequency range 1 MHz to 31.8 GHz (M9384B only)
- M9384B - F44 - Frequency range 1 MHz to 44 GHz
- M9384B - PCH - Relative phase adjustments: channel 1 versus channel 2
- M9384B - 002 - Dual channel configuration
- M9384B - 1EH - Harmonic filters below 2 GHz
- M9384B - 1EB - Higher maximum output power option
- M9384B - 1EE - Higher maximum output power option
- M9384B - 1ES - Spectral purity option
- M9384B - ST5 - Phase noise option (with F32 or F44)
- M9384B - ST6 - Phase noise option
- M9384B - PMR - Pulse modulation option
- M9384B - PME - Pulse modulation option
- M9384B - 320 - Pulse train generator (SCPI only)
- M9384B - EXT - External I/Q input
- M9384B - DIQ - I/Q baseband output
- M9384B - D05 - Internal baseband generator, sample rate 1 Hz to 625 MHz
- M9384B - D06 - Internal baseband generator, sample rate 1 Hz to 625 MHz
- M9384B - D10 - Internal baseband generator, sample rate 1 Hz to 1.28 GHz
- M9384B - D11 - Internal baseband generator, sample rate 1 Hz to 1.28 GHz
- M9384B - D20 - Internal baseband generator, sample rate 1 Hz to 2.56 GHz
- M9384B - D21 - Internal baseband generator, sample rate 1 Hz to 2.56 GHz
- M9384B - D2E - Internal baseband generator, sample rate 1 Hz to 2.56 GHz (frequency dependent)
- M9384B - M05 - Arbitrary waveform playback memory 512 MSa
- M9384B - M10 - Arbitrary waveform playback memory 1024 MSa
| Model | M9384B |
|---|
Keysight (Agilent) M9384B VXG Microwave Signal Generator

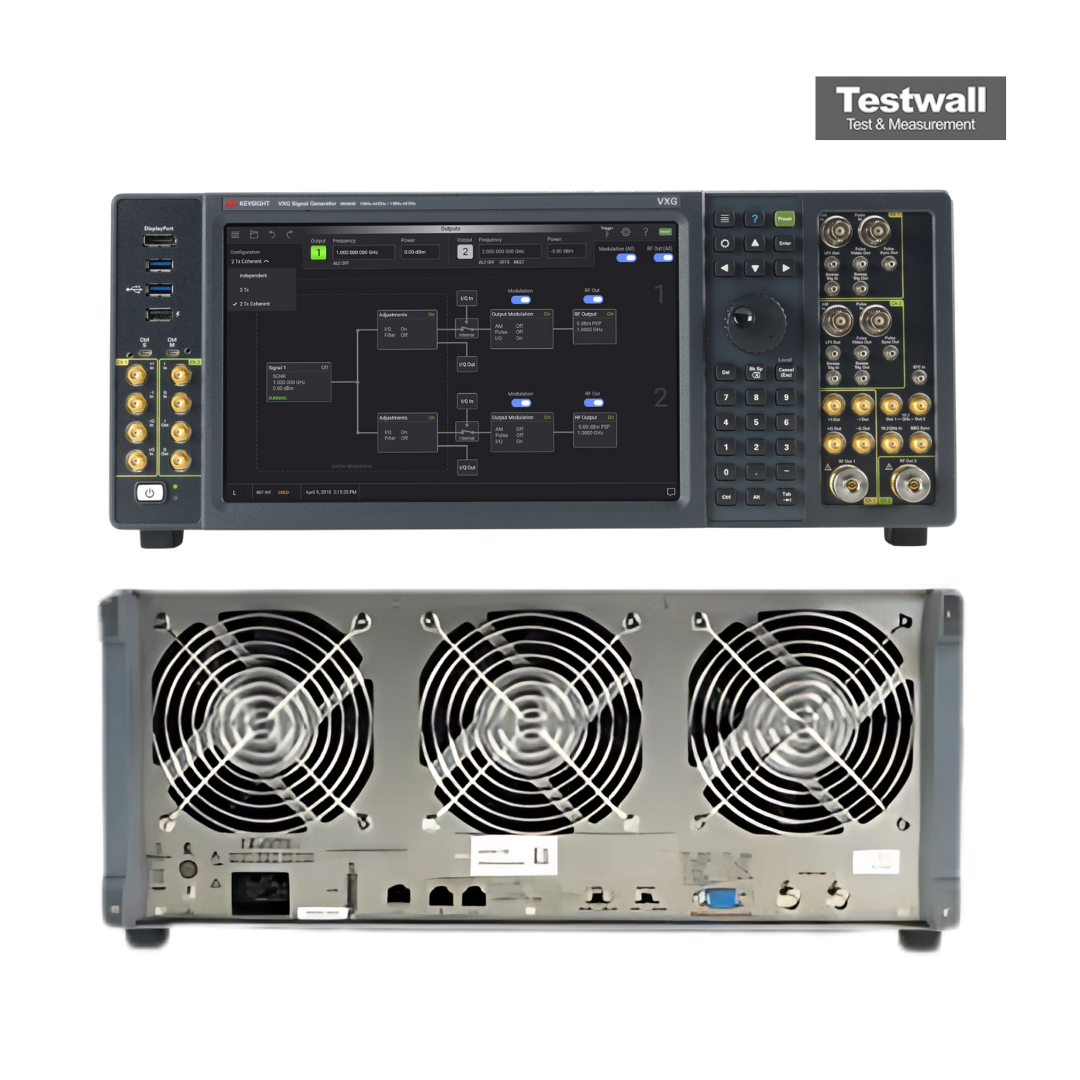

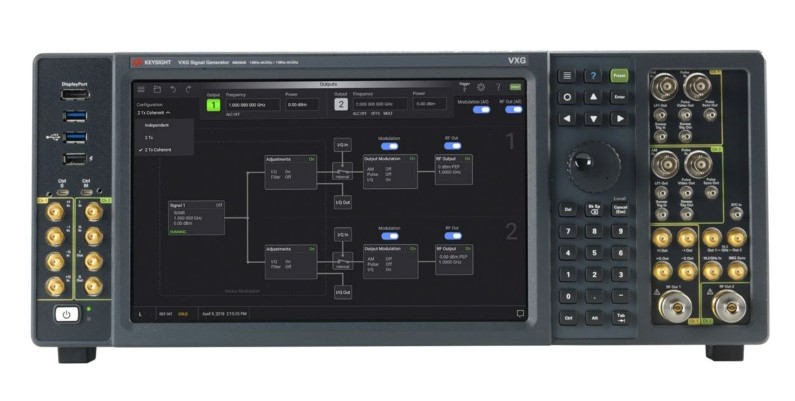

The Keysight M9384B is a dual-channel, multi-touch vector signal generator that operates from 1 Mhz to 44 GHz with a 2 GHz RF Bandwidth. This signal generator has an output power range from -110 to 23 dBm. The high output power allows it to compensate for system loss and enable 5G power amplifier and over-the-air (OTA) testing. It has phase cohe LO and baseband synchronization for multi-user or beamforming MIMO OTA testing. This signal generator is compatible with Keysight's PathWave Signal Generation software which can help accelerate design and test workflows.
Keysight's 5G waveform generation and analysis testbed solution leverages the Keysight M9384B VXG microwave signal generator's enhanced capabilities for 5G development teams to efficiently validate new designs across both frequency range 1 (FR1) and frequency range 2 (FR2) as defined by 3GPP. The testbed solution uniquely addresses the challenges of 5G NR conformance test and enables Keysight to quickly integrate new technology into market-ready solutions that enable customers to move faster and achieve first-to-market goals. It has a new graphical user interface for 5G NR that delivers a streamlined experience when creating standard-compliant test signals.
Specifications for the Keysight (Agilent) M9384B VXG Microwave Signal Generator Include:
| Frequency | 1 MHz to 44 GHz |
| Output Power @1 GHz | -120 dBm to +21 dBm |
| Harmonics @1 GHz | -54 dBc |
| Phase Noise @1 GHz (20 kHz offset) | -140 dBc/Hz |
