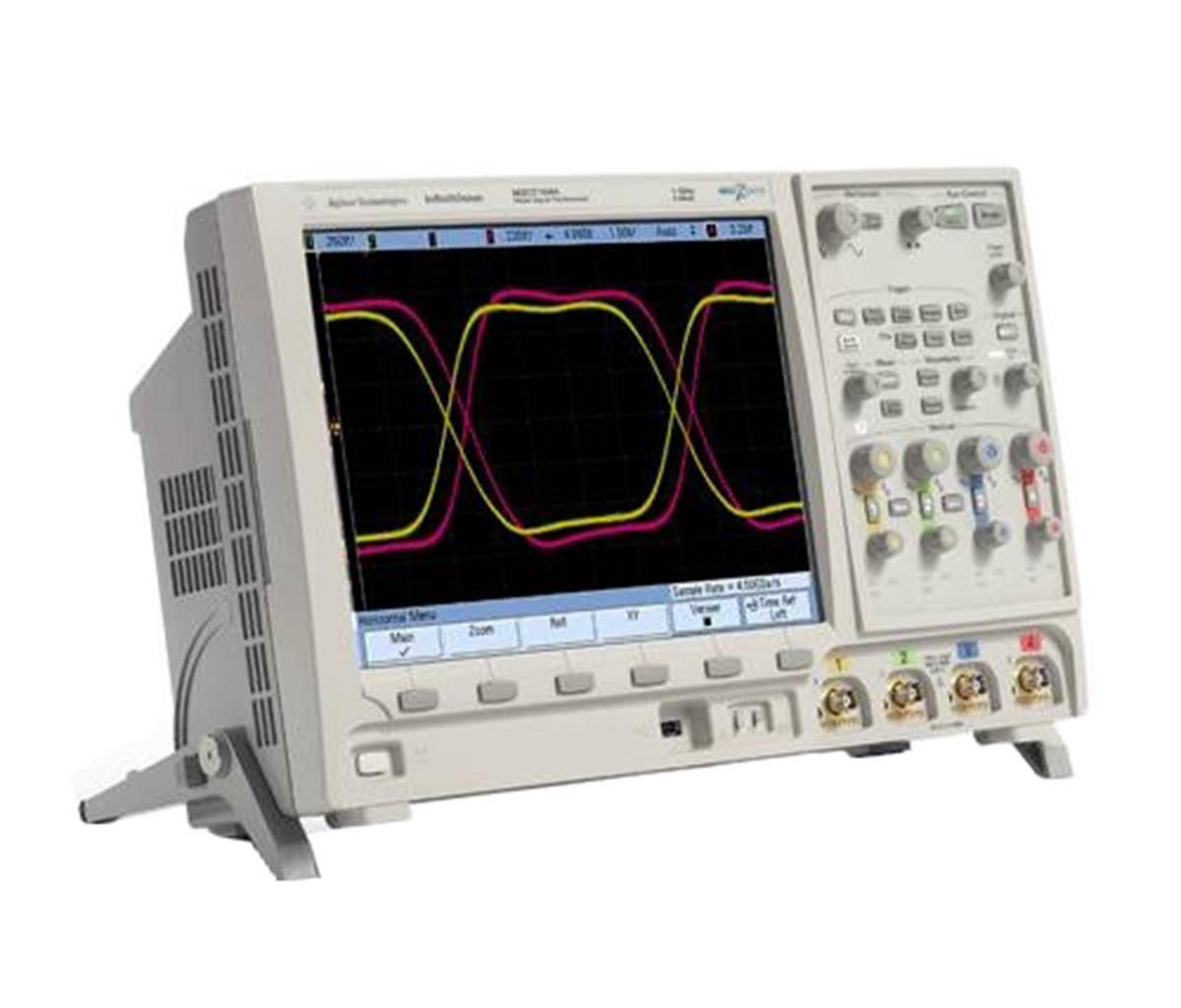

Keysight Technologies MSO7054A 500MHz, 4+16 channel Mixed Signal Oscilloscope
500MHz, 4+16 channel Mixed Signal Oscilloscope
500 MHz Ancho de banda
4 canales analógicos Número de canales analógicos
16 canales digitales Número de canales digitales
4 GSa/s Tasa de muestreo máxima
8 Mpts (estándar), hasta 32 Mpts (opcional) Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 500 MHz |
| Número de canales analógicos | 4 canales analógicos |
| Número de canales digitales | 16 canales digitales |
| Tasa de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 8 Mpts (estándar), hasta 32 Mpts (opcional) |
| Pantalla | Pantalla LCD en color de 12,1 pulgadas (XGA) |
| Tasa de captura de formas de onda | Hasta 1.000.000 formas de onda por segundo (modo MegaZoom) |
| Rango de escala vertical | 1 mV/div a 5 V/div |
| Base de tiempos | 1 ns/div a 50 s/div |
| Interfaces de conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight (Agilent) MSO7054A 500MHz, 4+16 channel Mixed Signal Oscilloscope Options:
- MSO7054A - SEC - Secure Environment Mode (available at time of purchase only)
- MSO7054A - A6J - ANSI Z540 Compliant Calibration
- MSO7054A - N2735 - Mixed Signal Oscilloscope (MSO) Upgrade
- MSO7054A - N2736A - Mixed Signal Oscilloscope (MSO) Upgrade
- MSO7054A - N2737A - Mixed Signal Oscilloscope (MSO) Upgrade
- MSO7054A - LSS - I2C/SPI Serial Decode Option (N5423A after purchase)
- MSO7054A - AMS - CAN/LIN Automotive Triggering and Decode (N5424A after purchase)
- MSO7054A - FRS - FlexRay Trigger and Decode (N5432A)
- MSO7054A - 232 - UART/RS232 Trigger and Decode (N5457A)
| Model | MSO7054A |
|---|
The Keysight (Agilent) MSO7104A provides 1 GHz analog bandwidth and 4 analog + 16 digital channels, 4 GSa/s sampling, and MegaZoom 8 Mpts memory with >100,000 wfms/s waveform update speed.
Supports extensive serial protocol decoding and FPGA debug, with 12.1″ XGA display for signal clarity.
Testwall can supply the used Keysight (Agilent) MSO7104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO7104A.
