Keysight (Agilent)

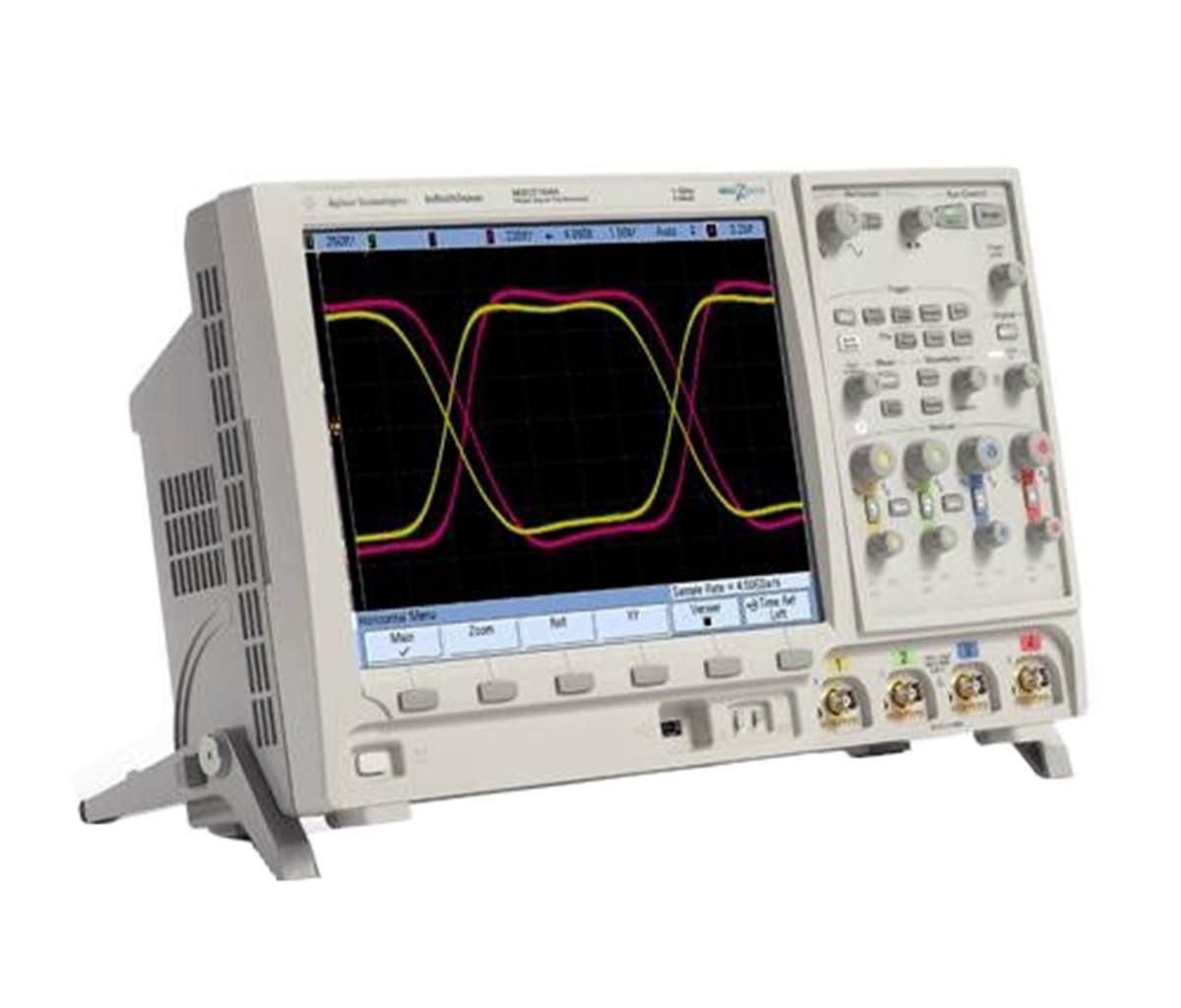

Keysight Technologies MSO7104A 1GHz, 4+16 channel Mixed Signal Oscilloscope
1GHz, 4+16 channel Mixed Signal Oscilloscope
1 GHz Ancho de banda
4 canales Número de canales analógicos
16 canales Número de canales digitales
4 GSa/s (en tiempo real) Frecuencia de muestreo máxima
8 Mpuntos por canal (estándar) Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales analógicos | 4 canales |
| Número de canales digitales | 16 canales |
| Frecuencia de muestreo máxima | 4 GSa/s (en tiempo real) |
| Profundidad de memoria | 8 Mpuntos por canal (estándar) |
| Resolución vertical | 8 bits |
| Pantalla | Pantalla de color XGA de 12,1 pulgadas |
| Tasa de captura de formas de onda | Hasta 1.000.000 formas de onda por segundo (modo MegaZoom) |
| Rango de escala de tiempo | 1 ns/div a 50 s/div |
| Interfaz y conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight Technologies MSO7104A 1GHz, 4+16 channel Mixed Signal Oscilloscope Options:
- MSO7104A - SEC - Secure Environment Mode (prevents oscilloscope setup and trace information from being stored in the oscilloscope's internal memory)
- MSO7104A - A6J - ANSI Z540 Compliant Calibration
- MSO7104A - N2735 - Mixed Signal Oscilloscope (MSO) upgrade license
- MSO7104A - N2736A - Mixed Signal Oscilloscope (MSO) upgrade license
- MSO7104A - N2737A - Mixed Signal Oscilloscope (MSO) upgrade license
- MSO7104A - N5423A - I2C/SPI serial decode option (Option LSS)
- MSO7104A - N5424A - CAN/LIN automotive triggering and decode (Option AMS)
- MSO7104A - N5432A - FlexRay trigger and decode option
- MSO7104A - N5406A - FPGA dynamic probe for Xilinx (Option 001 Oscilloscope-locked license or Option 002 PC-locked license)
- MSO7104A - N5434A - FPGA dynamic probe for Altera (Option 001 Oscilloscope-locked license or Option 002 PC-locked license)
| Model | MSO7104A |
|---|
The Keysight (Agilent) MSO7104A provides 1 GHz analog bandwidth and 4 analog + 16 digital channels, 4 GSa/s sampling, and MegaZoom 8 Mpts memory with >100,000 wfms/s waveform update speed.
Supports extensive serial protocol decoding and FPGA debug, with 12.1″ XGA display for signal clarity.
Testwall can supply the used Keysight (Agilent) MSO7104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) MSO7104A.
