Keysight (Agilent) N4392A
| Atributo | Valor |
|---|---|
| Rango de frecuencia | hasta 28 GHz |
| Tipo de instrumento | Analizador de módulo óptico coherente |
| Velocidad de datos soportada | hasta 100 Gbps |
| Formatos de modulación soportados | DP-QPSK, DP-16QAM, DP-BPSK |
| Interfaz de conexión | Conector óptico LC dúplex |
| Longitud de onda de operación | 1528 nm a 1568 nm (banda C) |
| Potencia óptica de entrada máxima | +10 dBm |
| Sensibilidad del receptor | -20 dBm (mínimo) |
| Interfaz de control y comunicación | USB, LAN (GPIB opcional) |
| Compatibilidad de software | Compatible con Keysight N4391A Optical Modulation Analyzer Software |
Keysight (Agilent) N4392A Options:
- N4392A - 100 - C band sources and optics
- N4392A - 110 - L band sources and optics
- N4392A - 300 - 23 GHz optical receiver
- N4392A - 310 - 23 GHz electrical receiver, 4 differential inputs
- N4392A - 320 - Extended local oscillator and source package
- N4392A - 420 - Custom OFDM modulation analysis
- N4392A - 430 - ICR characterization package
- N4392AU - 100 - Upgrade with C-Band Sources and Optics
- N4392AU - 110 - Upgrade with L-Band Sources and Optics
- N4392AU - E02 - Upgrade to extended wavelength range 1527.6 to 1570.01 nm (196.25 to 190.95 THz)
- N4392AU - 430 - Upgrade N4392A with ICR characterization License
- N4392AU - 300 - Upgrade with 23 GHz optical receiver
- N4392AU - 310 - Upgrade with 23 GHz electrical receiver, 4 differential channel input
- N4392AU - 320 - Upgrade with extended local oscillator and source package
- N4392AU - 410 - Upgrade N4392A with additional Optical Modulation Format License
- N4392AU - UG1 - Upgrade OMA Software from Version 4.x to Version 5.x, fixed perpetual license
- N4392A - 89601B-BHF - Custom OFDM modulation analysis
- N4392A - 89601B-BHK - Custom IQ demodulator
| Model | N4392A |
|---|
Keysight (Agilent) N4392A Optical Modulation Analyzer

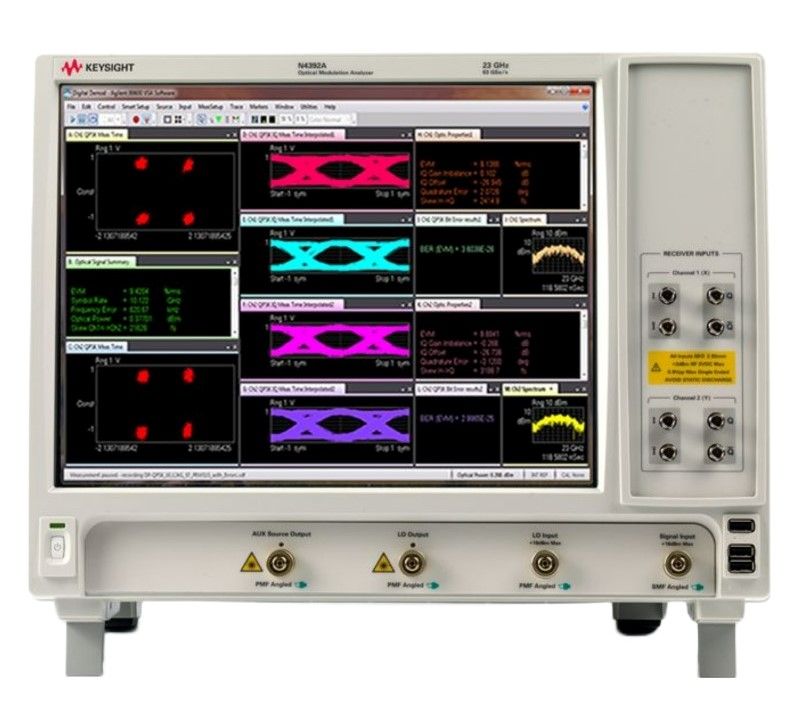

The Keysight N4392A is an ultra-compact, portable fully integrated optical modulation analyzer with a 15'' laptop-size screen. It is optimized for daily R&D work and designed for the most affordable performance verification in manufacturing and component test for 40/100G components, modules and systems. It is the first optical modulation analyzer that provides built-in performance verification and recalibration, extending the factory recalibration cycles significantly. Integration of a digitizer, optics and analysis PC leads to a compact turn-key instrument. It also avoids any external cabling, making the instrument robust and easy to set up wherever needed.
A compact mid-size oscilloscope housing results in a lightweight instrument, which can be easily moved to any location in a lab or on the manufacturing floor. The Keysight N4392A is designed for best price-performance balance, achieved by combining advanced integration technologies with built-in calibration and performance verification tools. This leads to longer intervals between recalibration, extending uptime in research and manufacturing and resulting in reduced cost of ownership without leaving any doubt about the performance of the instrument.
Specifications for the Keysight (Agilent) N4392A Optical Modulation Analyzer Include:
| Wavelength Range | 1527.6 nm to 1570.01 nm |
| Receiver Bandwidth | 23 GHz |
| Sampling Rate | 63 GSa/s |
| Symbol Rate | 32 Gbaud |
