Keysight (Agilent) N4691D
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 300 kHz a 26,5 GHz |
| Tipo de conector | 2,92 mm (macho y hembra) |
| Número de puertos | 2 puertos |
| Tipo de estándar de calibración | Electronic Calibration Module (ECal) |
| Impedancia característica | 50 Ohmios |
| Compatibilidad con analizadores de redes | Compatible con analizadores de redes vectoriales Keysight de la serie PNA, ENA y otros modelos compatibles |
| Pérdida de inserción máxima | ≤ 6 dB a 26,5 GHz |
| Potencia máxima de entrada | +26 dBm |
| Interfaz de conexión al instrumento | USB |
| Temperatura de operación | 0 °C a 55 °C |
Keysight (Agilent) N4691D Options:
- N4691D - 0DC - Low frequency starts from DC
- N4691D - 003 - Low frequency starts from 300 kHz
- N4691D - M0F - 1 female and 1 male connector (3.5 mm)
- N4691D - F0F - Both connectors are female (3.5 mm)
- N4691D - M0M - Both connectors are male (3.5 mm)
- N4691D - 00A - Add male-to-male and female-to-female adapters
- N4691D - 1A7 - Calibration + Uncertainties + Guardbanding (Not Accredited)
- N4691D - A6J - ANSI Z540-1-1994 calibration
- N4691D - UK6 - Commercial calibration certificate with test data
| Model | N4691D |
|---|

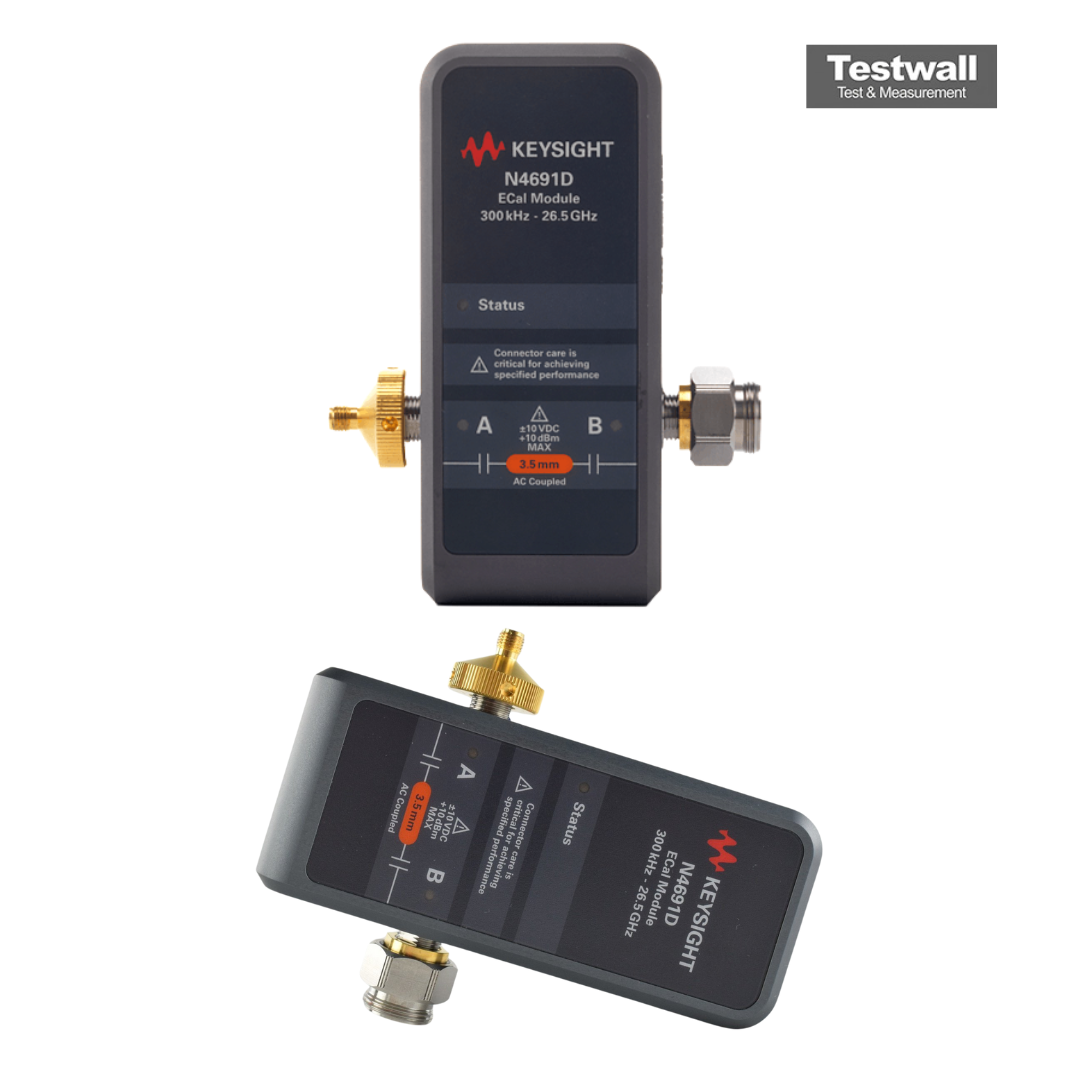

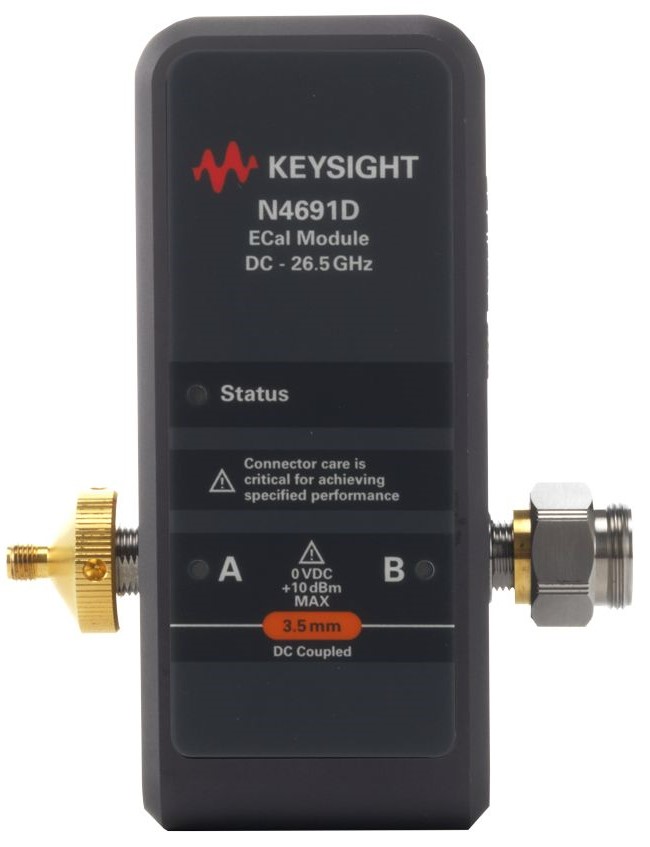

Keysight (Agilent) N4691D Electronic Calibration Module
The Keysight N4691D microwave electronic calibration (ECal) module makes calibration of Keysight vector network analyzers fast, easy and accurate. The N4691D is a precision 2-port ECal module that supports 3.5 mm connectors up to 26.5 GHz. Select either female-female, male-male, or female-male connectors. The plastic storage case for the N4691D is included for securing your ECal module and accessories.
The N4691D Option 0DC extends the calibration frequency range down to DC, which is beneficial for broadband device modeling or time domain and signal integrity analysis using enhanced time domain-analysis on the Keysight network analyzers.
This ECal module is an ideal solution for calibrating vector network analyzers. Performing a full two-port calibration takes less than half the time and number of connections versus traditional mechanical cal kits. The operator simply connects the ECal module to the vector network analyzer via USB and the firmware controls the rest, thus reducing the chance for operator error. Wear and tear on connectors is reduced as well, lowering repair costs on both the test port connectors and calibration standards.
Specifications for the Keysight (Agilent) N4691D Electronic Calibration Module Include:
| Frequency Range | 300 kHz to 26.5 GHz (DC to 26.5 GHz w/Opt 0DC) |
| Ports | 2 |
| Connector Type | 3.5mm |
