Keysight (Agilent)

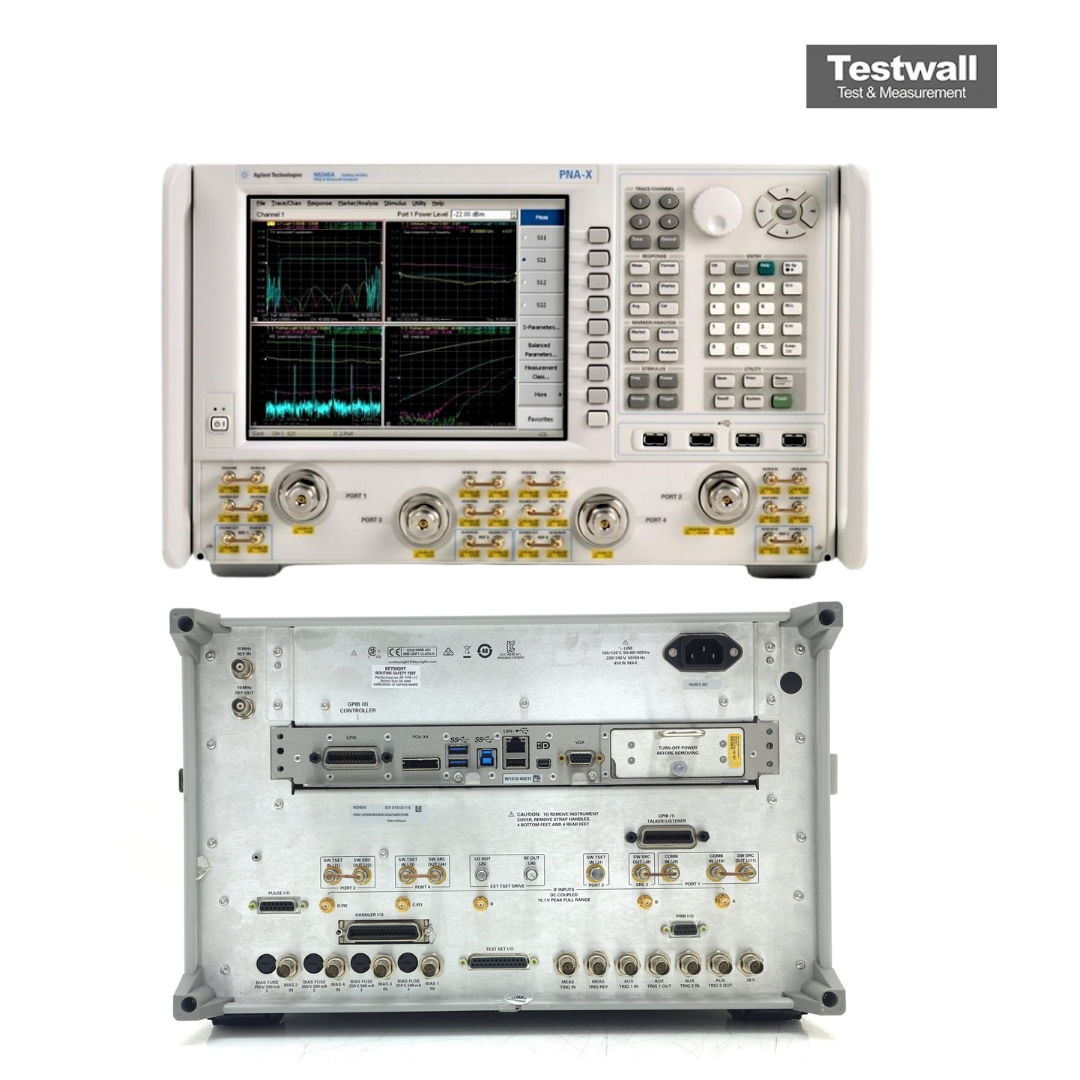

Keysight (Agilent) N5245AS
10MHz To 50GHz Vector Network Analyzer
10 MHz a 50 GHz Rango de frecuencia
4 puertos Número de puertos
Hasta 122 dB Rango dinámico
+13 dBm (máximo) Potencia de salida
-114 dBm (típico) Nivel de ruido del piso
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 MHz a 50 GHz |
| Número de puertos | 4 puertos |
| Rango dinámico | Hasta 122 dB |
| Potencia de salida | +13 dBm (máximo) |
| Nivel de ruido del piso | -114 dBm (típico) |
| Tipo de analizador | Analizador de redes vectorial (VNA) |
| Conectores de puerto | 2,4 mm (macho) |
| Número de puntos de barrido | 1 a 32.001 puntos |
| Interfaz de comunicación | GPIB, USB, LAN (LXI) |
| Sistema operativo | Windows 7 (64 bits) |
Keysight (Agilent) N5245AS Options:
- N5245A - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires Option 224 or 423)
- N5245A - 200 - 2-port standard test set (includes six front-panel access loops) and power range
- N5245A - 219 - Adds 2-port extended power range, source and receiver attenuators, and bias-tees (requires Option 200)
- N5245A - 224 - Adds an internal second source, a combiner, and mechanical switches to the 2-port analyzer (requires Option 200, 219, and 080)
- N5245A - 400 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5245A - 419 - Adds 4-port extended power range, source and receiver attenuators, and bias-tees (requires Option 400)
- N5245A - 423 - Adds an internal combiner, and mechanical switches to the 4-port analyzer (requires Option 400, 419, and 080)
Keysight (Agilent) N5245AS 10MHz To 50GHz Vector Network Analyzer Description: Keysight (Agilent) N5245AS 10MHz To 50GHz Vector Network Analyzer
