Keysight (Agilent)

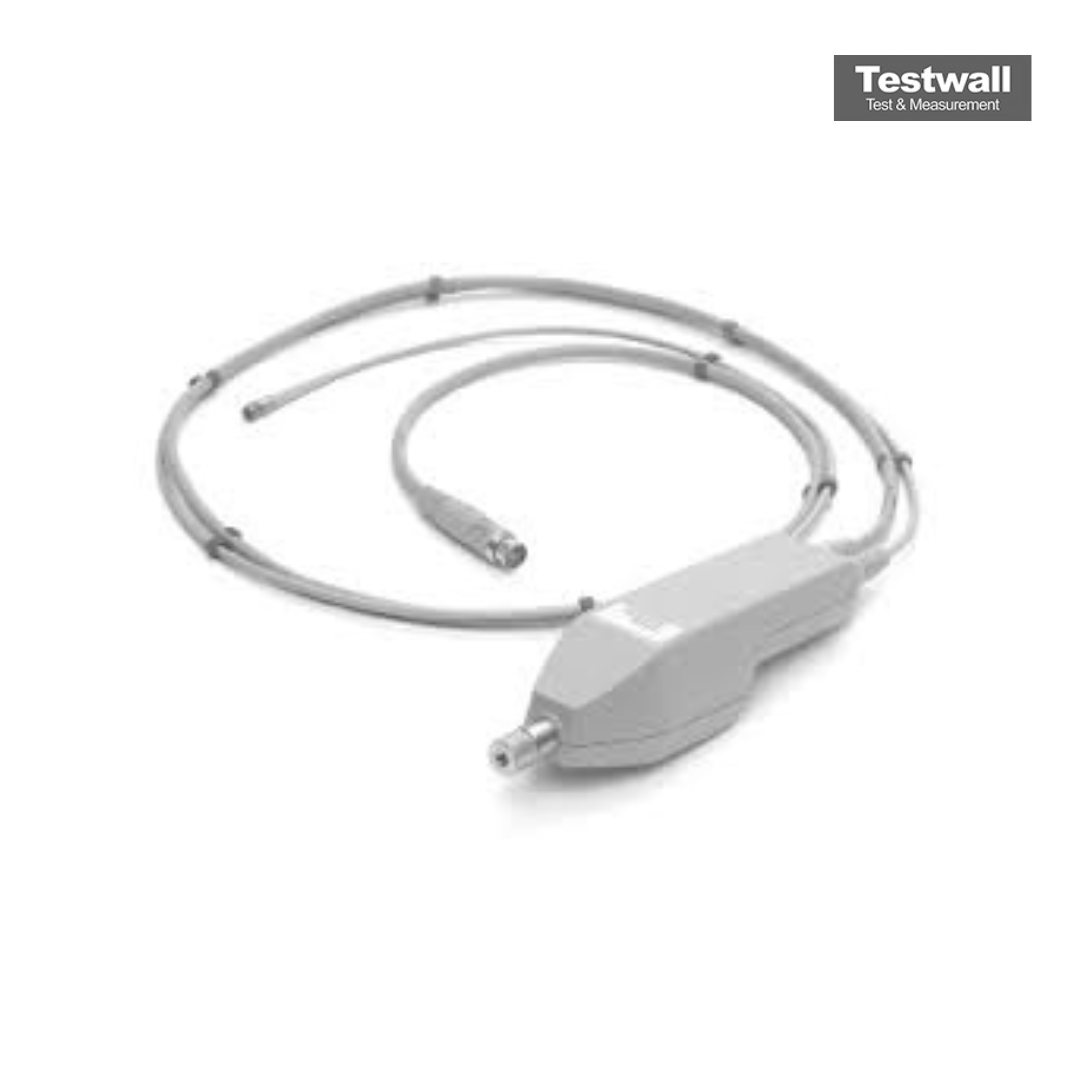

Keysight (Agilent) N5531S
Measuring Receiver System (configurable)
100 Hz - 26,5 GHz Rango de frecuencia
Sistema de medición de señales (SMS) para analizadores de espectro Función principal
Compatible con analizadores de espectro Keysight serie PSA (E4440A, E4443A, E4445A, E4446A, E4448A) Compatibilidad
±0,19 dB (típico) en condiciones de referencia Precisión de potencia
Hasta 110 dB Rango dinámico
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 100 Hz - 26,5 GHz |
| Función principal | Sistema de medición de señales (SMS) para analizadores de espectro |
| Compatibilidad | Compatible con analizadores de espectro Keysight serie PSA (E4440A, E4443A, E4445A, E4446A, E4448A) |
| Precisión de potencia | ±0,19 dB (típico) en condiciones de referencia |
| Rango dinámico | Hasta 110 dB |
| Componentes incluidos | Sensor de potencia N8485A, cable de sensor, software de medición integrado y accesorios de calibración |
| Tipo de medición | Medición de potencia absoluta y relativa de señales de RF y microondas |
| Impedancia | 50 Ohmios |
| Conector | Tipo N (macho) |
| Temperatura de operación | 0 °C a +55 °C |
Keysight (Agilent) N5531S Measuring Receiver System (configurable) Options:
- N5531S - 107 - E444Xa Audio Input 100 Ko (Needs 233)
- N5531S - 110 - E444Xa Rf/ 碌W Internal Preamplifier (Not With 1Ds)
- N5531S - 123 - E444Xa Switchable Preselector Bypass
- N5531S - 1DS - E444Xa Rf Internal Preamplifier (Not With 110)
- N5531S - 233 - E444Xa Built-In Measuring Receiver Personality And Pc Software
- N5531S - 23A - Am/Fm/Pm Triggering (Std With 233)
- N5531S - 23B - Ccitt Filter (Std With 233)
- N5531S - E4440A - 26.5GHZ Psa Analyzer
- N5531S - E4443A - 6.7GHZ Psa Analyzer
- N5531S - E4445A - 13.2GHZ Psa Analyzer
- N5531S - E4446A - 44GHZ Psa Analyzer
- N5531S - E4447A - 42.98GHZ Psa Analyzer
- N5531S - E4448A - 50GHZ Psa Analyzer
- N5531S - N1911A - P-Series Single Channel Power Meter
- N5531S - N1912A - P-Series Dual Channel Power Meter
- N5531S - N5532A-019 - Adaptor To N191Xa Power Meter
- N5531S - N5532A-504 - 100 KHZ To 4.2 GHZ, Type N(M) Input Connector
- N5531S - N5532A-518 - 10 MHZ To 18 GHZ, Type N(M) Input Connector
- N5531S - N5532A-526 - 30 MHZ To 26.5 GHZ, Apc 3.5 (M) Input Connector
- N5531S - N5532A-550 - 30 MHZ To 50 GHZ, 2.4 Mm (M) Input Connector
| Model | N5531S |
|---|
Keysight (Agilent) N5531S Measuring Receiver System (configurable) Description: The Keysight (Agilent) N5531S measuring receiver system is comprised of a PSA spectrum analyzer with Option 233, a P-Series power meter, and an N5532A sensor module for metrology and calibration applications. To achieve the optimal measurement results as specified, the best metrology practice must be applied and the required instrument conditions must be met. PSA is the core component instrument of the N5531S measuring receiver. The PSA instrument conditions included in the PSA specification guide must be met to meet the N5531S specifications.
