Keysight (Agilent) N6954A
| Atributo | Valor |
|---|---|
| Familia de productos | Módulo de fuente de alimentación de CC para el sistema PXIe |
| Rango de voltaje de salida | 0 V a 20 V |
| Rango de corriente de salida | 0 A a 5 A |
| Potencia máxima de salida | 100 W |
| Número de canales de salida | 4 canales independientes |
| Factor de forma | Módulo PXIe de 1 ranura |
| Interfaz de comunicación | PXIe (PCI Express) |
| Resolución de voltaje | 1 mV |
| Resolución de corriente | 0,1 mA |
| Compatibilidad de software | Compatible con Keysight PathWave y drivers IVI |
Keysight (Agilent) N6954A Options:
- N6954A - 301 - Accuracy Package
- N6954A - 302 - Measurement Enhancements
- N6954A - 303 - Source and Speed Enhancements
- N6954A - 760 - Disconnect and Polarity Reversal Relays
- N6954A - 761 - Disconnect and Polarity Reversal Relays
- N6954A - 1A7 - ISO 17025 cal certificate
- N6954A - BBR - Black Box Recorder
- N6954A - UK6 - Commercial calibration with test results data
- N6954A - 900 - Power cord - United Kingdom
- N6954A - 901 - Power cord - Australia and New Zealand
- N6954A - 902 - Power cord - Continental Europe
- N6954A - 904 - Power cord - United States and Canada - 240 V
- N6954A - 906 - Power cord - Switzerland
- N6954A - 912 - Power cord - Denmark
- N6954A - 917 - Power cord - India
- N6954A - 918 - Power cord - Japan - 100 V
- N6954A - 919 - Power cord - Israel
- N6954A - 920 - Power cord - Argentina
- N6954A - 921 - Power cord - Chile
- N6954A - 922 - Power cord - China - 250 V
- N6954A - 923 - Power cord - South Africa
- N6954A - 927 - Power cord - Thailand and Philippines
- N6954A - 929 - Power cord - Japan - 250 V
- N6954A - 930 - Power cord - Brazil
- N6954A - 931 - Power cord - Taiwan
- N6954A - 932 - Power cord - Cambodia
- N6954A - PLG - Continental European power cord - only for EU DISTR W MULT PWR CORD standards
| Model | N6954A |
|---|

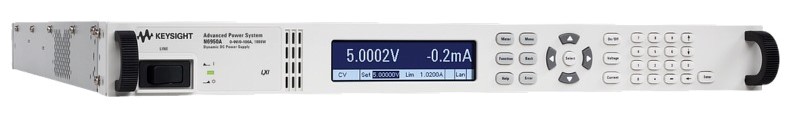

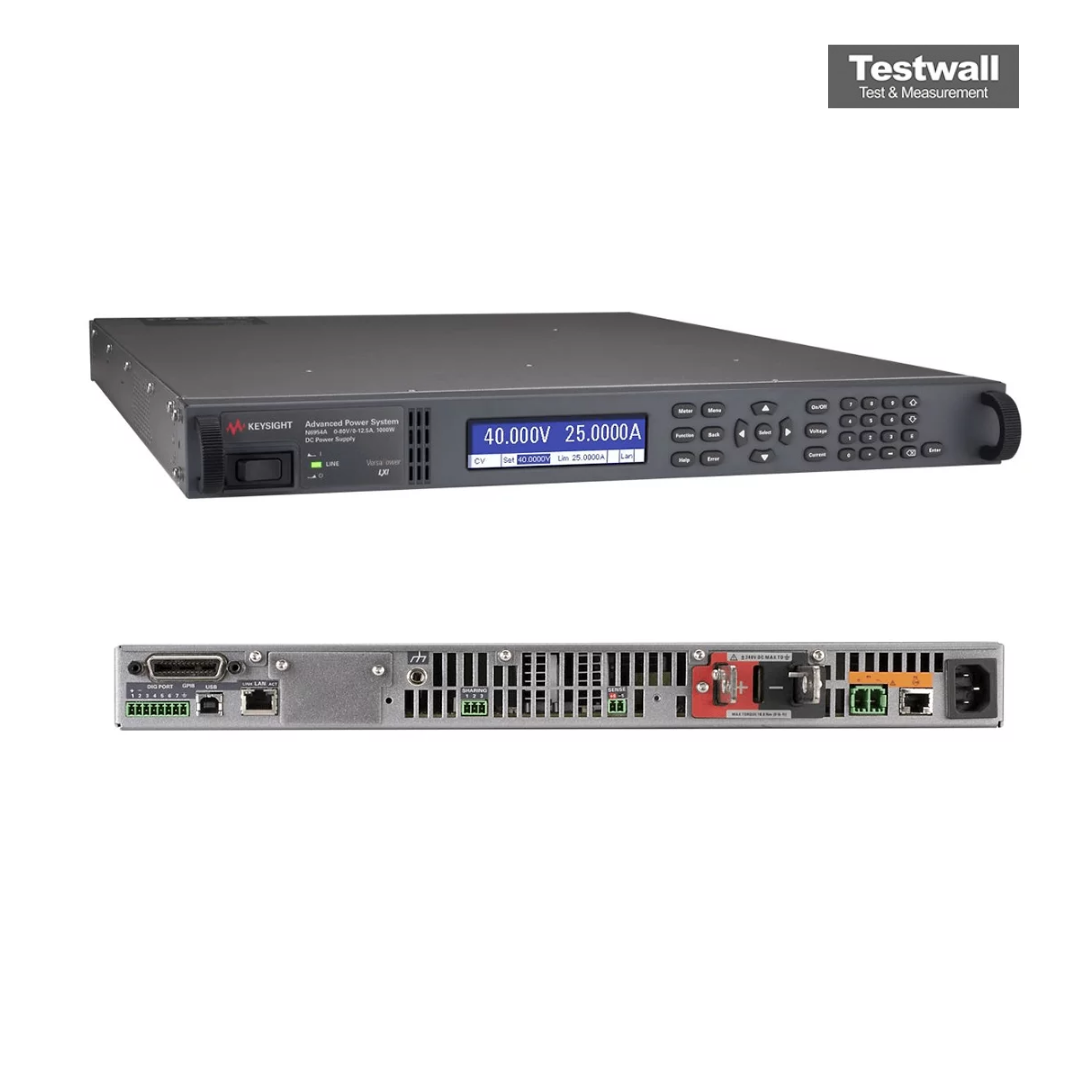

Keysight (Agilent) N6954A DC Power Supply
The Keysight Advanced Power System (APS) N6954A DC power supply is ideal for automated test equipment (ATE) applications where high performance is critical. VersaPower uses cutting- edge technology to deliver industry-leading performance and innovative capabilities you don't typically find in a switching power supply design. Users can add optional capabilities to boost your test-system versatility. Now you can tune your power supply capability to meet your specific needs. The AC input on the back of the unit is a universal AC input. It accepts nominal line voltages in the range of 100 VAC to 240 VAC. The frequency can be 50 Hz, 60 Hz, or 400 Hz.
All Keysight N6954A DC power supplies come standard with GPIB (IEEE-488), LAN (LXI-Core), and USB remote programming interfaces. GPIB and LAN parameters can be set via the front panel. On the rear panel of every N6954A power supply is a digital control port that consists of seven I/O pins that provide access to various control functions. Each pin is user configurable. With the Keysight N6954A, users can achieve test speeds that are up to 100x faster than standard system power supplies, optimize test speed and ensure DUT safety with up/down programming speed as fast as 500 µs and reduce test complexity and protect your DUT with integrated smart triggering.
Specifications for the Keysight (Agilent) N6954A DC Power Supply Include:
| Voltage Range | 0 to 80 V |
| Max Current | 12.5A |
| Total Power | 1000W |
| Output ripple and noise | 1 mV |
