Keysight (Agilent) N7555A
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 100 kHz a 3 GHz |
| Número de canales | 2 canales independientes |
| Impedancia de salida | 50 Ω |
| Nivel de potencia de salida | -110 dBm a +10 dBm |
| Resolución de frecuencia | 0,001 Hz |
| Modulación soportada | AM, FM, PM, modulación de pulso |
| Interfaz de comunicación | GPIB, LAN (LXI), USB |
| Pureza espectral (ruido de fase) | -105 dBc/Hz a 10 kHz de separación a 1 GHz |
| Tensión de alimentación | 100 – 240 V CA, 50/60 Hz |
| Dimensiones (An × Al × Pr) | 426 mm × 88 mm × 460 mm (2U, medio rack) |
Keysight (Agilent) N7555A Options:
- N7555A - 3FF - Both 3.5 mm connectors are female on module
- N7555A - 3MF - 1 female and 1 male connector on module, both 3.5 mm
- N7555A - 3MM - Both 3.5 mm connectors are male on module
- N7555A - 150 - Plastic storage box
- N7550X-151 - 3.5 or 2.92 mm torque wrench
- N7550X-152 - Type-N torque wrench
| Model | N7555A |
|---|

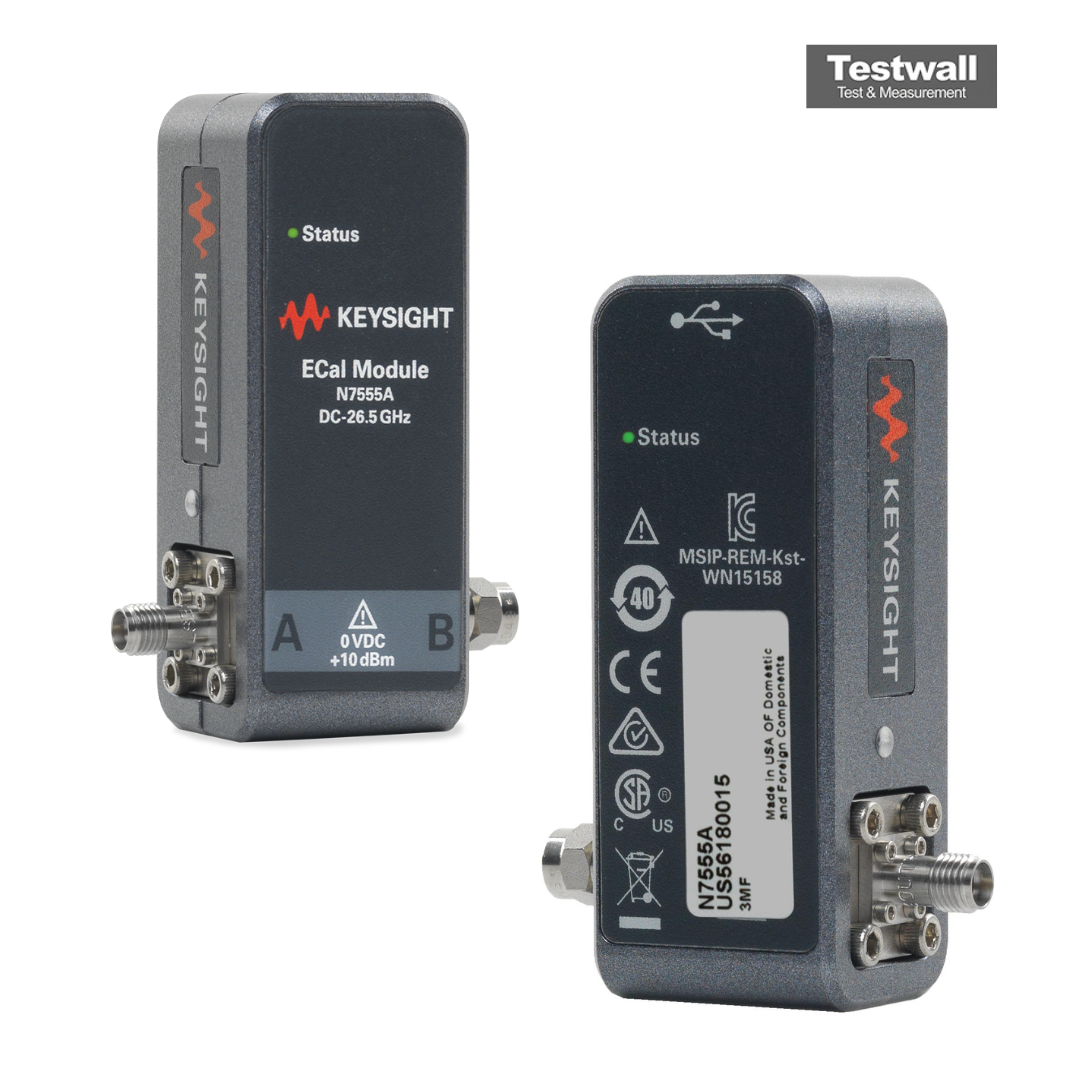

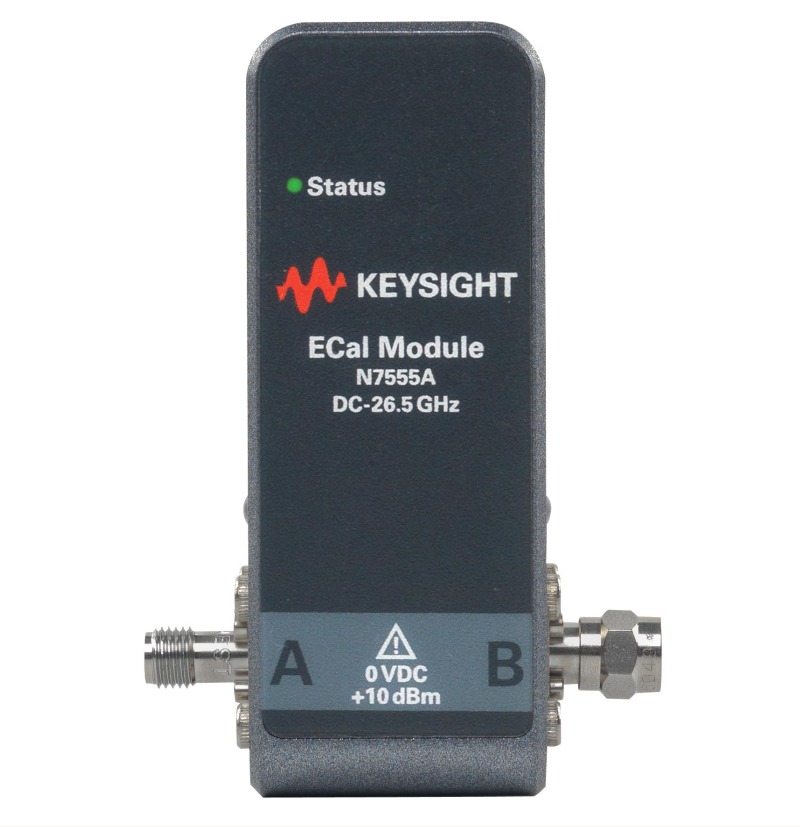

Keysight (Agilent) N7555A Electronic Calibration Module
The Keysight N7555A is part of Keysight's family of value-line electronic calibration (ECal) modules that makes calibration of vector network analyzers fast, easy and accurate. Cut your calibration down to half the time it normally takes using a traditional mechanical cal kit. Simply connect it to your instrument and the firmware does the rest. The N7555A supports Keysight's , PNA-X, PNA, ENA, and PXI vector network analyzers and FieldFox handheld analyzers. The N7555A is a 2-port ECal module that supports 3.5 mm connectors.The firmware installed on the instrument is used to control the calibration module, making it a fully integrated solution. The calibration code on the instrument communicates via a USB 2.0 micro-interface and simplifies the calibration to a single connection for a full two-port calibrated measurement.
Specifications for the Keysight (Agilent) N7555A Electronic Calibration Module Include:
| Frequency Range | DC to 26.5 GHz |
| Number of Ports | 2 |
| Connector Type | 3.5mm |
| Connector mix | M-M; M-F; F-F |
