Keysight (Agilent) N7974A
| Atributo | Valor |
|---|---|
| Familia de productos | Módulo de fuente de alimentación de precisión (SMU) |
| Rango de tensión de salida | 0 V a ±20 V |
| Rango de corriente de salida | 0 A a ±1 A |
| Resolución de tensión | 100 µV |
| Resolución de corriente | 10 nA |
| Número de canales | 1 canal por módulo |
| Compatibilidad de chasis | Keysight N6700 / N6705 (chasis modular de fuente de alimentación) |
| Interfaz de comunicación | A través del chasis: LAN (LXI), USB, GPIB |
| Potencia máxima de salida | 20 W |
| Modos de operación | Fuente de tensión / Fuente de corriente con medición simultánea (SMU) |
Keysight (Agilent) N7974A Options:
- N7974A - 1A7 - ISO 17025 cal certificate
- N7974A - BBR - Black Box Recorder
- N7974A - UK6 - Commercial calibration with test results data
- N7974A - 900 - Power cord - United Kingdom
- N7974A - 901 - Power cord - Australia and New Zealand
- N7974A - 902 - Power cord - Continental Europe
- N7974A - 904 - Power cord - United States and Canada - 240 V
- N7974A - 906 - Power cord - Switzerland
- N7974A - 912 - Power cord - Denmark
- N7974A - 917 - Power cord - India
- N7974A - 918 - Power cord - Japan - 100 V
- N7974A - 919 - Power cord - Israel
- N7974A - 920 - Power cord - Argentina
- N7974A - 921 - Power cord - Chile
- N7974A - 922 - Power cord - China - 250 V
- N7974A - 923 - Power cord - South Africa
- N7974A - 927 - Power cord - Thailand and Philippines
- N7974A - 929 - Power cord - Japan - 250 V
- N7974A - 930 - Power cord - Brazil
- N7974A - 931 - Power cord - Taiwan
- N7974A - 932 - Power cord - Cambodia
- N7974A - PLG - Continental European power cord - only for EU DISTR W MULT PWR CORD standards
| Model | N7974A |
|---|

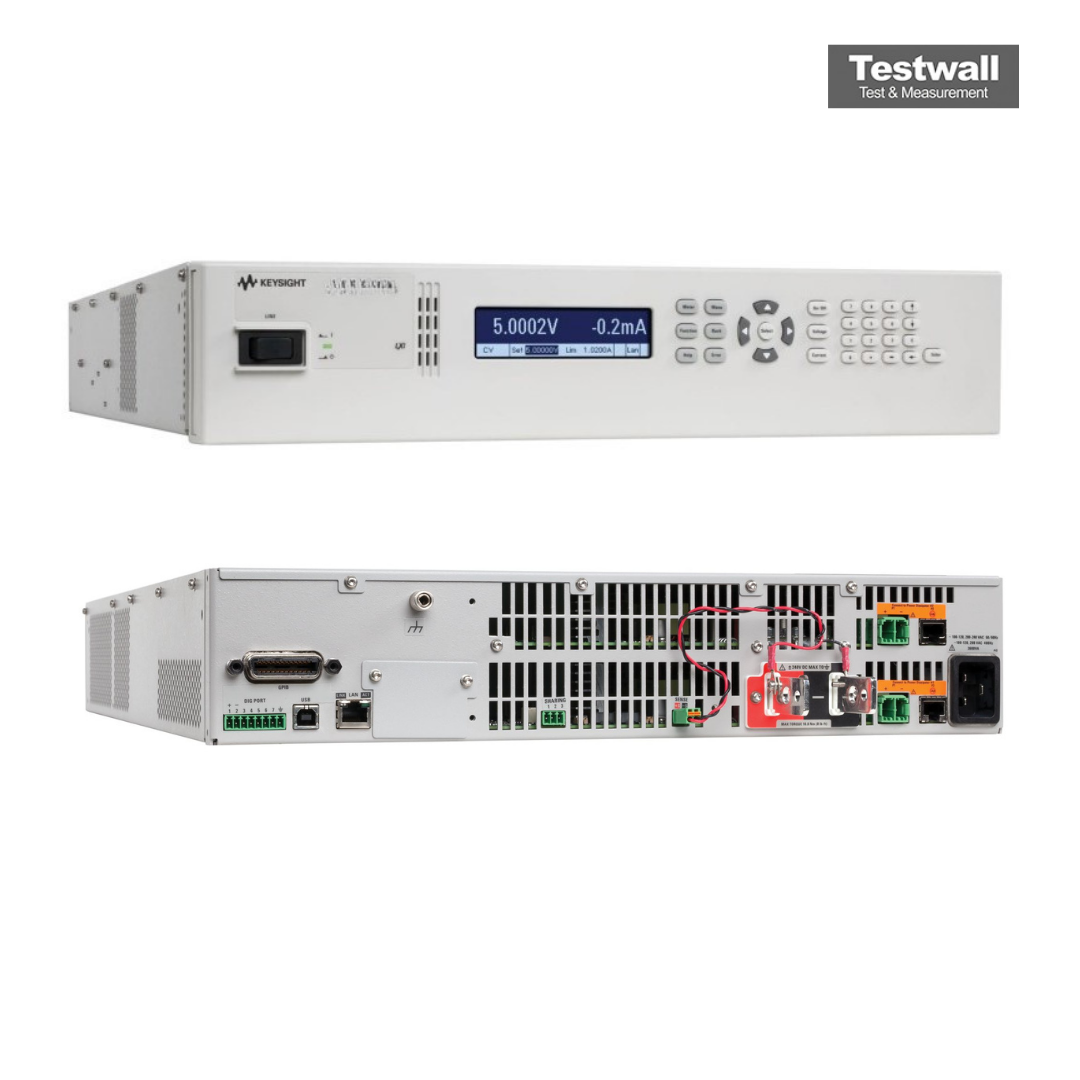

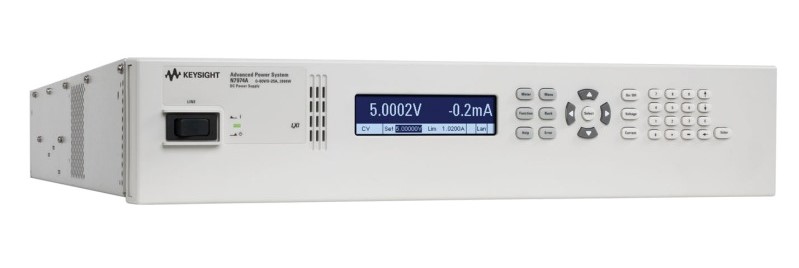

Keysight (Agilent) N7974A DC Power Supply
The Keysight Advanced Power System (APS) N7974A is a full-featured supply designed for automated test equipment (ATE) applications that benefit from high-speed dynamic sourcing and measurement. The highly integrated N7974A enables you to accelerate your test-system throughput with industry-leading speed and precision measurements. IT has all the capabilities of the N6900 but also includes dynamic output power, dynamic measurements, and higher accuracy. The Advanced Power System (APS) family was designed with VersaPower architecture to help you overcome your toughest power test challenges by delivering industry-leading specifications and innovative features in an integrated solution for today's advanced ATE power testing needs.
When operated as standalone units, the Keysight N7974A power supplies can continuously sink up to 10% of their rated output cur for an indefinite time. To complement the two quadrant operation, all APS power supplies have built-in programmable output resistance capability. This capability allows an APS power supply to simulate the internal resistance of a battery. The APS provides simultaneous voltage and cur measurement capabilities that deliver high accuracy and resolution. Make measurements using two main modes: averaged or digitized. In average mode, the APS delivers high-accuracy DMM-quality voltage and cur measurements. The digitizing capability allows you to capture dynamic cur or voltage profiles at much higher resolution than an oscilloscope.
Specifications for the Keysight (Agilent) N7974A DC Power Supply Include:
| Voltage | 0 to 80V |
| Max Current | 25A |
| Power | 2000W |
| Output ripple & noise | 1 mV |
