Keysight (Agilent) N8921A
| Atributo | Valor |
|---|---|
| Rango de voltaje de salida | 0 V a 800 V |
| Corriente de salida máxima | 20 A |
| Potencia máxima de salida | 5000 W |
| Interfaz de comunicación | LAN (LXI), USB, GPIB |
| Modos de operación | Voltaje constante (CV), Corriente constante (CC) |
| Regulación de línea | 0,01% + 2 mV |
| Regulación de carga | 0,01% + 2 mV |
| Tensión de entrada (CA) | 208 V / 400 V / 480 V trifásico, 50/60 Hz |
| Factor de forma | Montaje en rack, 3U |
| Temperatura de funcionamiento | 0 °C a 55 °C |
| Model | N8921A |
|---|

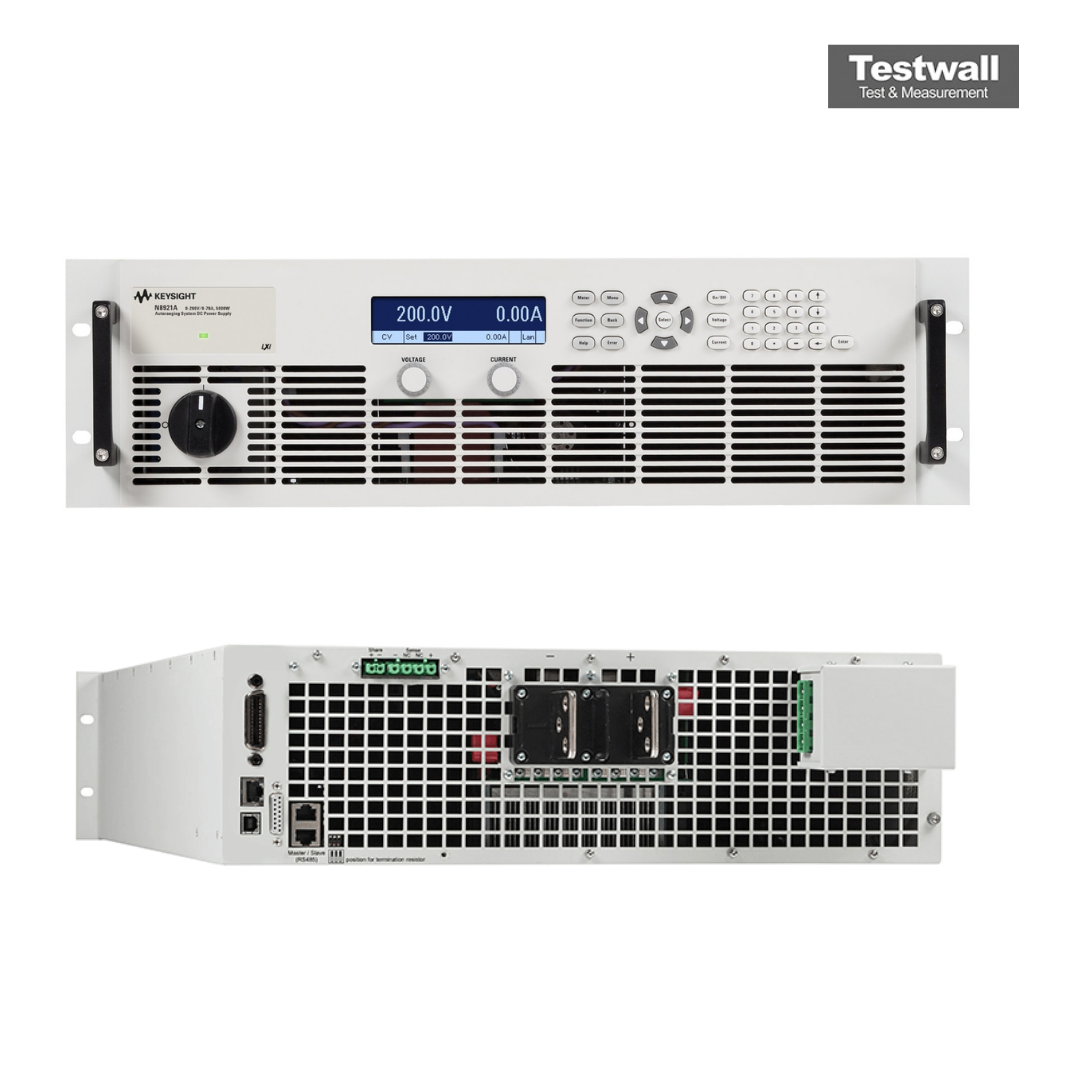

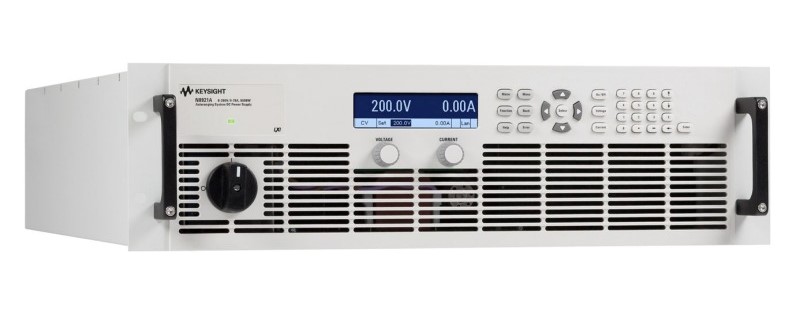

Keysight (Agilent) N8921A DC Power Supply
The Keysight Technologies N8921A DC power supply provides 5 kW autoranging, single-output programmable DC power for ATE applications that require just the right amount of performance at just the right price. These supplies offer many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development and compact 3U design to save rack space. The N8921A power supplies come standard with GPIB, Ethernet/LAN, USB 2.0, and analog interfaces giving you the flexibility to use your I/O interface of choice.
Using the front panel controls, you have complete access to all of the Keysight N8921A features via the extensive menu system. You can either use the voltage and cur knobs or enter your settings via the keypad. You can also set protection settings, power-on states, and other features. The output voltage, current, and power can be displayed simultaneously, and annunciators at the bottom of the display show power supply status and operating modes. To safeguard your device, the N8921A power supplies provide over-temperature, over-cur and over-voltage protection to shut down the power supply output when a fault condition occurs.
Specifications for the Keysight (Agilent) N8921A DC Power Supply Include:
| Voltage | 0 to 200 V |
| Current | 0 to 70 A |
| Power | 5000W |
| Programming Accuracy | Voltage: 0.1% of full-scale, Current: 0.2% of full-scale |
