Keysight (Agilent) N8926A
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 100 kHz – 3 GHz |
| Potencia de salida máxima | +44 dBm (25 W) |
| Ganancia | hasta 55 dB |
| Figura de ruido | ≤ 8 dB típico |
| Impedancia | 50 Ω |
| Tipo de amplificador | Amplificador de potencia de banda ancha |
| Conector de entrada/salida | SMA (hembra) |
| Tensión de alimentación | 100 – 240 V CA, 50/60 Hz |
| Temperatura de funcionamiento | 0 °C a +55 °C |
| Dimensiones (An × Al × Pr) | 212 mm × 88 mm × 368 mm (media unidad de rack) |
| Model | N8926A |
|---|

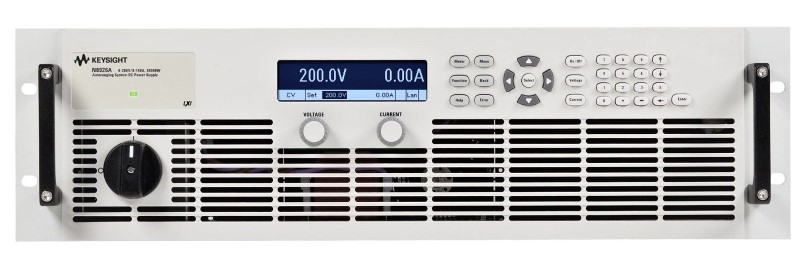

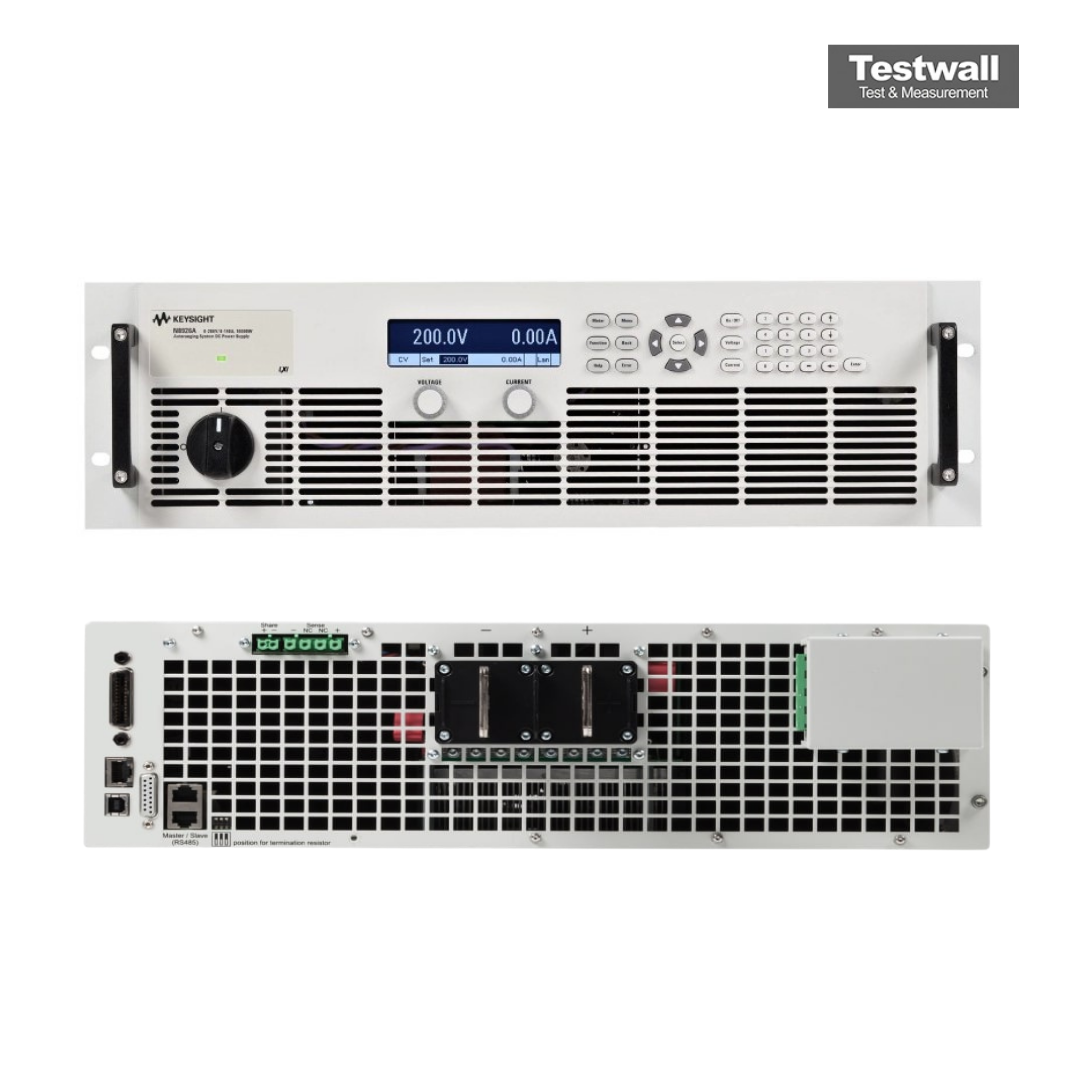

Keysight (Agilent) N8926A DC Power Supply
The Keysight N8926A DC power supply provides 10kW autoranging, single-output programmable DC power for ATE applications. These supplies offer many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development and compact 3U design to save rack space. The Keysight N8926A power supplies comes standard with GPIB, Ethernet/LAN, USB 2.0, and analog interfaces giving you the flexibility to use your I/O interface of choice today and safeguard your test setup for the future.
Using the front panel controls, you have complete access to all of the Keysight N8926A features via the extensive menu system. The output voltage and cur can be programmed from zero to full-scale by an analog voltage signal from 0 to 5 V or 0 to 10 V. Each corresponding to 0 to 100% of full-scale. The N8926A power supplies' autoranging output characteristic makes it much more flexible than rectangular, or traditional, output characteristic power supplies because they expand the power curve, giving the user more voltage and cur combinations in one power supply. The built-in Web server provides remote access and control of the instrument via a standard browser.
Specifications for the Keysight (Agilent) N8926A DC Power Supply Include:
| Voltage | 0 - 200V |
| Current | 0 - 140A |
| Total Power | 10kW |
| Load transient recovery time | ‰¤ 1.5 ms |
