Keysight (Agilent) N8951A
| Atributo | Valor |
|---|---|
| Tensión de salida | 0 - 20 V |
| Corriente de salida máxima | 50 A |
| Potencia de salida máxima | 1000 W |
| Número de salidas | 1 |
| Interfaz de programación | GPIB, USB, LAN (LXI) |
| Regulación de línea (tensión) | ≤ 0,01% + 2 mV |
| Regulación de carga (tensión) | ≤ 0,01% + 2 mV |
| Tensión de entrada (CA) | 208 / 240 V CA, 50/60 Hz |
| Factor de forma | Montaje en rack 2U |
| Temperatura de funcionamiento | 0 °C a 55 °C |
Keysight (Agilent) N8951A Options:
- N8951A - N8958A - Rack mount kit for Keysight racks
| Model | N8951A |
|---|

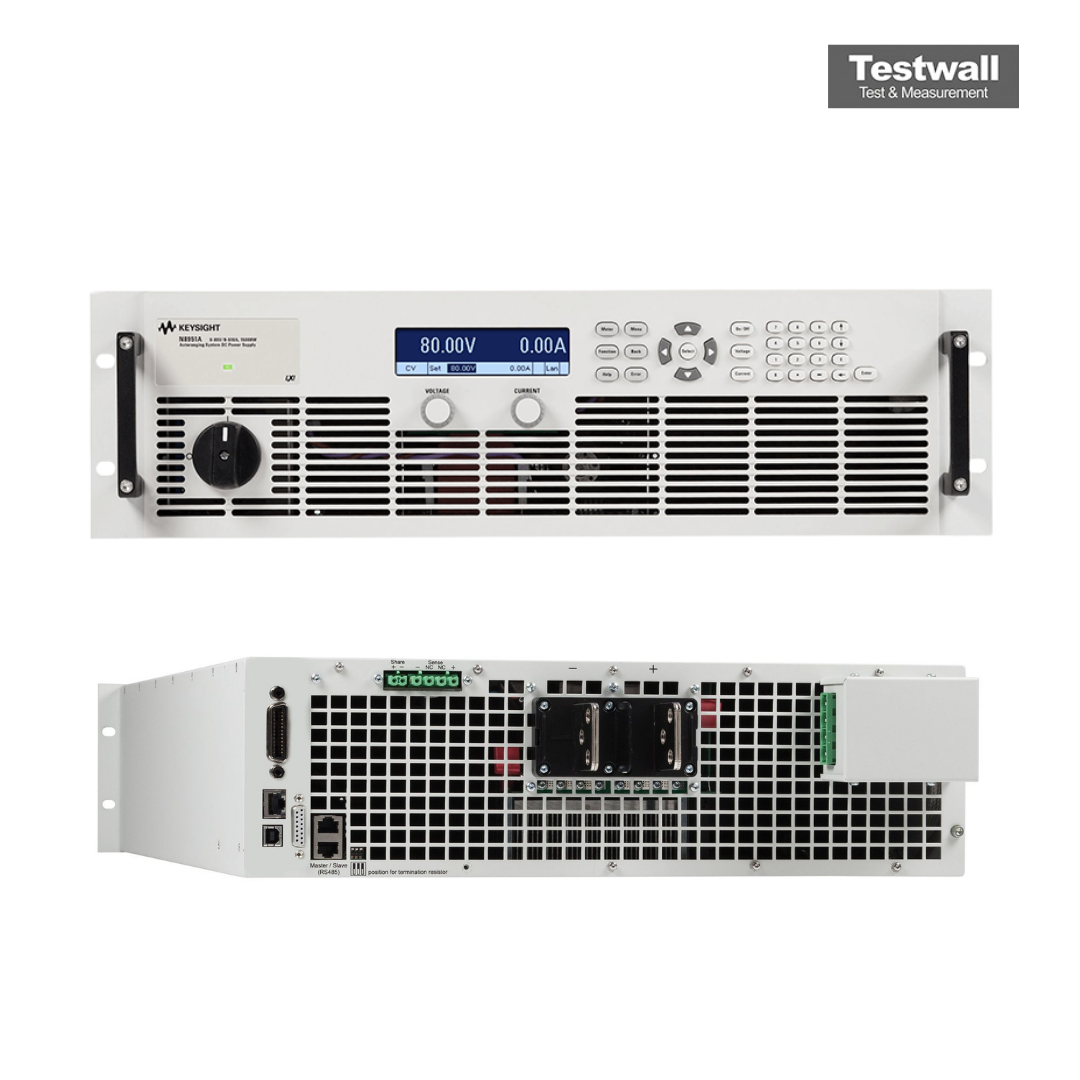

KEYSIGHT/AGILENT N8951A Autoranging DC Power Supply
The Keysight (Agilent) N8951A Autoranging DC Power Supply provides 15kW autoranging, single-output programmable DC power for ATE applications. This autoranging output characteristic enables unprecedented flexibility by offering a wide range of voltage and cur combinations at full power. The Keysight (Agilent) N8951A Autoranging DC Power Supply provides stable output power, built-in voltage and cur measure ments, and autoranging output voltage and cur from 0 to 80 V and 0 to 510 A.
The Keysight (Agilent) N8951A Autoranging DC Power Supply with €œrectangular, " or traditional, output characteristics provide full power at only one voltage and cur combination. Just one N8951A does the job of multiple power supplies. This supply offers many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development and compact 3U design to save rack space. Using the front panel controls, you have complete access to all of the N8951A features via the extensive menu system. The Keysight (Agilent) N8951A Autoranging DC Power Supply comes with standard GPIB, Ethernet/LAN, USB 2.0, and analog interfaces giving you the lexibility to use your I/O interface of choice today and safeguard your test setup for the future.
Specifications for the KEYSIGHT/AGILENT N8951A Autoranging DC Power Supply Include:
| Output Voltage | 80 V |
| Output Current | 510 A |
| Output Power | 15 kW |
| Output ripple and noise | 320 mV & 25mV |
