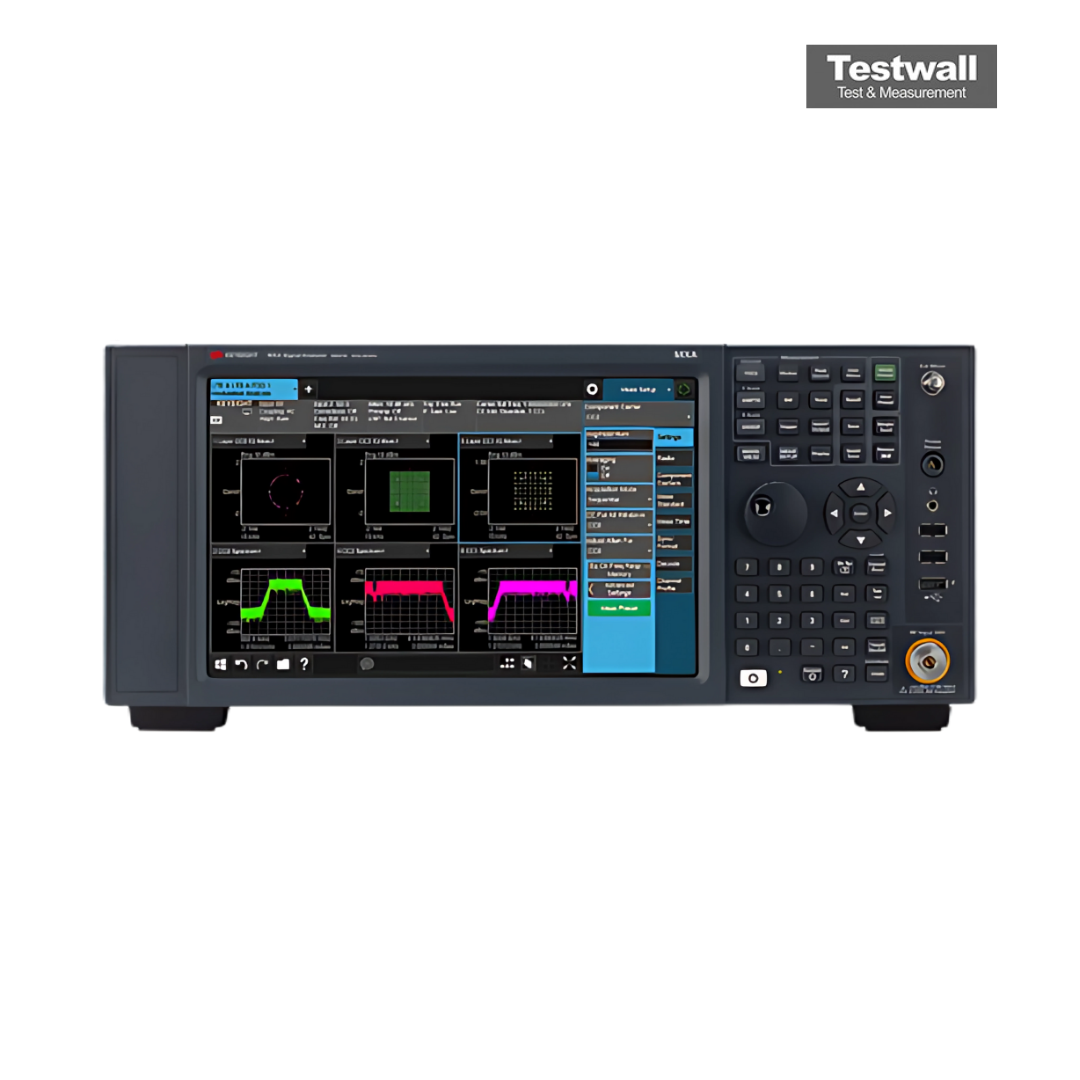

Keysight (Agilent) N9021B
10Hz to 50GHz MXA Signal Analyzer
10 Hz – 3,6 GHz Rango de frecuencia
-163 dBm/Hz (con preamplificador activado) Rango de amplitud (DANL)
hasta 25 MHz Ancho de banda de análisis
-98 dBc/Hz a 10 kHz de separación (a 1 GHz) Fase de ruido
hasta 78 dB (TOI a DANL) Rango dinámico
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 10 Hz – 3,6 GHz |
| Rango de amplitud (DANL) | -163 dBm/Hz (con preamplificador activado) |
| Ancho de banda de análisis | hasta 25 MHz |
| Fase de ruido | -98 dBc/Hz a 10 kHz de separación (a 1 GHz) |
| Rango dinámico | hasta 78 dB (TOI a DANL) |
| Exactitud de amplitud | ±0,19 dB (a 50 MHz, 23 °C ± 3 °C) |
| Interfaz de pantalla | Pantalla táctil capacitiva de 10,1 pulgadas |
| Conectividad | USB, LAN (LXI), GPIB (opcional) |
| Temperatura de operación | 0 °C a 55 °C |
| Opciones de medición | Análisis de señal vectorial (VSA), demodulación analógica y digital, mediciones de ruido de fase |
Keysight (Agilent) N9021B Options:
- N9021B - 508 - Frequency range 10 Hz to 8.4 GHz
- N9021B - 513 - Frequency range 10 Hz to 13.6 GHz
- N9021B - 526 - Frequency range 10 Hz to 26.5 GHz
- N9021B - 532 - Frequency range 10 Hz to 32 GHz
- N9021B - 544 - Frequency range 10 Hz to 44 GHz
- N9021B - 550 - Frequency range 10 Hz to 50 GHz
- N9021B - PFR - Precision frequency reference
- N9021B - P08 - Preamplifier, 100 kHz to 8.4 GHz
- N9021B - P13 - Preamplifier, 100 kHz to 13.6 GHz
- N9021B - P26 - Preamplifier, 100 kHz to 26.5 GHz
- N9021B - P32 - Preamplifier, 100 kHz to 32 GHz
- N9021B - P44 - Preamplifier, 100 kHz to 44 GHz
- N9021B - P50 - Preamplifier, 100 kHz to 50 GHz
- N9021B - EA3 - Electronic attenuator, 10 Hz to 3.6 GHz
- N9021B - B2X - 255 MHz analysis bandwidth
- N9021B - B5X - 510 MHz analysis bandwidth
- N9021B - RBE - Extended RBW option (for use with B2X/B5X)
- N9021B - NF2 - Noise floor extension
- N9021B - EXM - External mixing
- N9021B - CR3 - 2nd IF output
- N9021B - CRP - Programmable IF output
- N9021B - RT1 - Real-time spectrum analyzer, option RT1
- N9021B - RT2 - Real-time spectrum analyzer, option RT2
- N9021B - DUA - Dual 255 MHz real-time analysis at same center frequency, requires Option B5X
- N9021B - DP4 - 4 GB (or 8 GB) total waveform capture memory
- N9021B - PC6 - CPU option PC6
- N9021B - PC6S - CPU option PC6S
- N9021B - PC8 - CPU option PC8
- N9021B - PCA - CPU option PCA
- N9021B - YAS - Analog output (used by Option YAS and N9063EM0E analog demodulation measurement application)
- N9021B - B25 - 25 MHz analysis bandwidth (licensed as B25)
- N9021B - B40 - 40 MHz analysis bandwidth (licensed as B40)
| Model | N9021B |
|---|
Keysight (Agilent) N9021B 10Hz to 50GHz MXA Signal Analyzer Description: Frequency Range: 10 Hz to 50 GHz Maximum Analysis Bandwidth: 510 MHz DANL @1 GHz: -172 dBm Leverage built-in measurement expertise to quickly understand signals and device performance The optimum choice in wireless for 5G and other new-generation devices Keysight (Agilent) N9021B 10Hz to 50GHz MXA Signal Analyzer
