Keysight (Agilent)

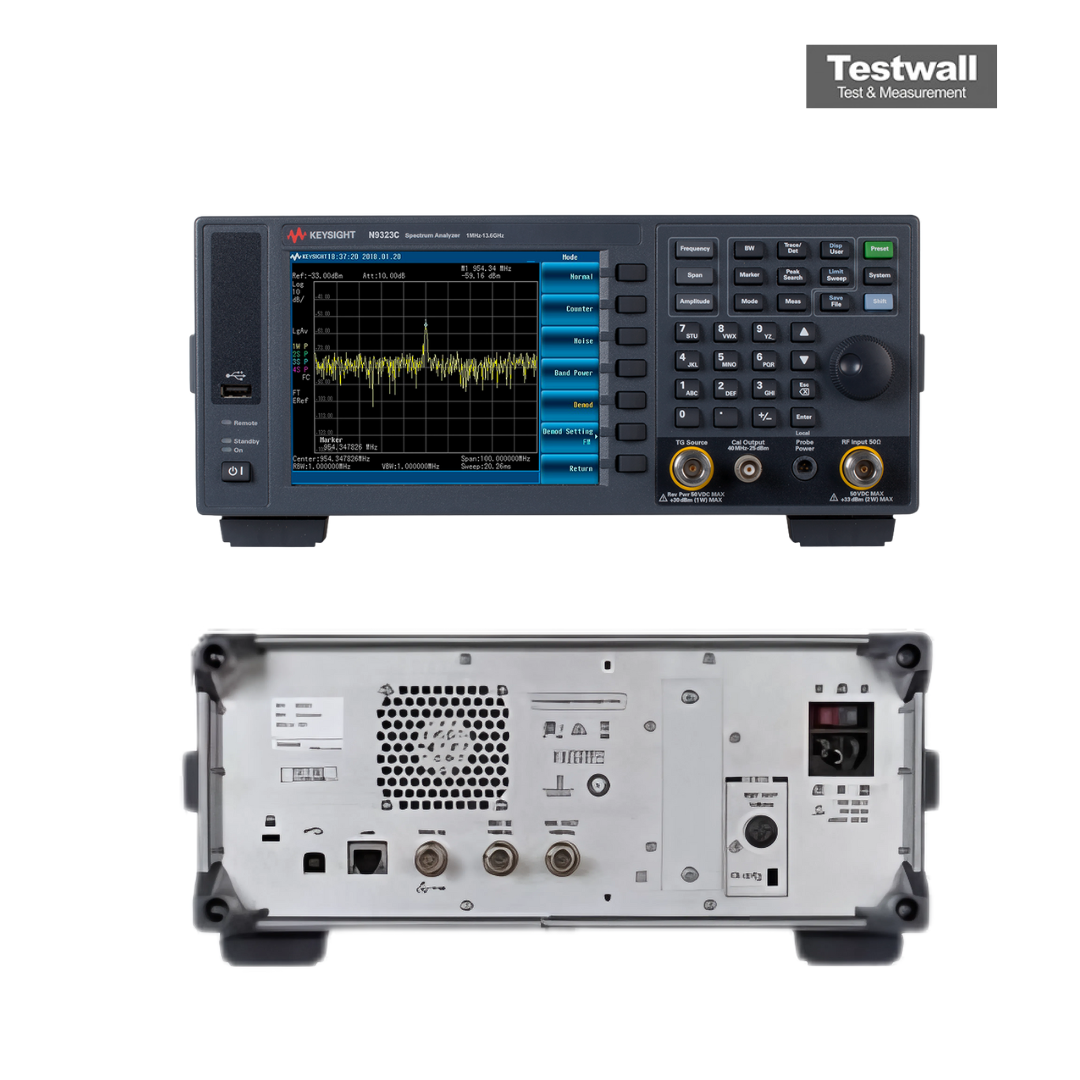

Keysight (Agilent) N9323C
1MHz - 13.6GHz Spectrum Analyzer
100 kHz – 3 GHz Rango de frecuencia
-148 dBm a +20 dBm Rango de amplitud
-161 dBm/Hz (típico) a 1 GHz Nivel de ruido mostrado (DANL)
±0,5 dB (típico) Precisión de nivel
10 Hz – 3 MHz Resolución de ancho de banda (RBW)
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 100 kHz – 3 GHz |
| Rango de amplitud | -148 dBm a +20 dBm |
| Nivel de ruido mostrado (DANL) | -161 dBm/Hz (típico) a 1 GHz |
| Precisión de nivel | ±0,5 dB (típico) |
| Resolución de ancho de banda (RBW) | 10 Hz – 3 MHz |
| Rango dinámico | Hasta 98 dB |
| Distorsión de tercer orden (TOI) | +15 dBm (típico) |
| Pantalla | Pantalla LCD táctil TFT de 8,4 pulgadas |
| Interfaces de conectividad | USB, LAN (LXI), GPIB (opcional) |
| Dimensiones y peso | 426 mm × 222 mm × 169 mm; 9,1 kg |
Keysight (Agilent) N9323C Options:
- N9323C - PFR - Precision Frequency Reference
- N9323C - TG7 - Tracking Generator, 5 MHz to 7 GHz
- N9323C - AMA - AM/FM Modulation Analysis
- N9323C - DMA - ASK/FSK Modulation Analysis
- N9323C - TMG - Time-Gated Spectrum Analysis
- N9323C - SCN - Channel Scanner
- N9323C - MNT - Spectrum Monitor
- N9323C - SEC - Security Features
- N9323C - TPN - Task Planner
- N9323C - PWM - USB Average Power Sensor Support
- N9323C - PWP - USB Peak and Average Power Sensor Support
- N9323C - EMC - EMI Bandwidths (CISPR compliant: 200 Hz, 9 kHz, 120 kHz, 1 MHz) and Quasi-peak Detector
- N9323C - P13 - Preamplifier, 1 MHz to 13.6 GHz, 15 dB Gain
- N9323C - G01 - GPIB Interface
| Model | N9323C |
|---|
Keysight (Agilent) N9323C 1MHz - 13.6GHz Spectrum Analyzer Description: Keysight (Agilent) N9323C 1MHz - 13.6GHz Spectrum Analyzer
