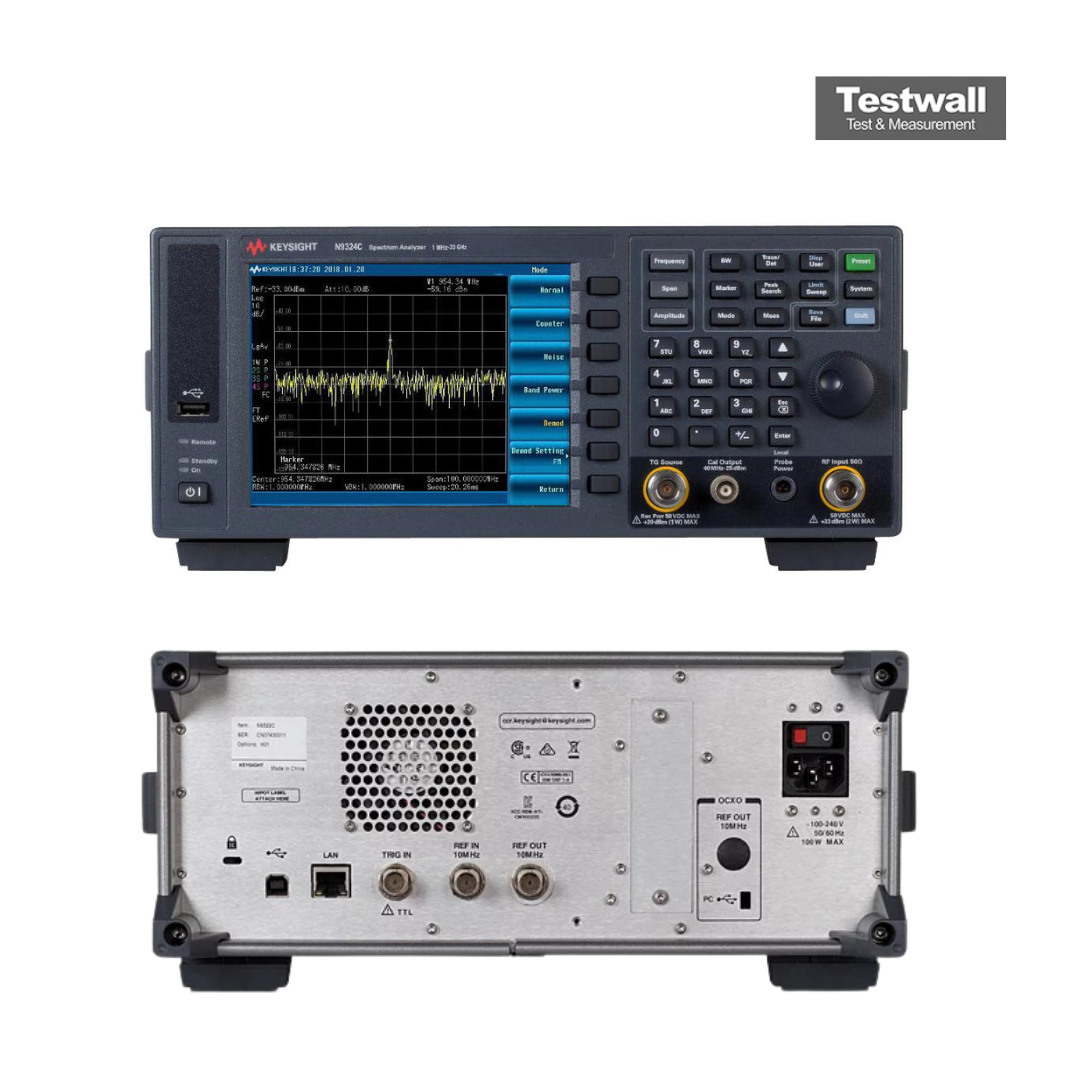

Keysight (Agilent) N9324C
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 100 kHz – 3 GHz |
| Rango de amplitud mostrada | -148 dBm a +20 dBm |
| Nivel de ruido promedio mostrado (DANL) | -161 dBm/Hz (típico) con preamplficador activado |
| Ancho de banda de resolución (RBW) | 1 Hz – 3 MHz |
| Fase de ruido | -98 dBc/Hz a 10 kHz de desplazamiento (típico) |
| Distorsión armónica total (THD) | Segundo armónico: -70 dBc (típico) |
| Precisión de amplitud | ±0,5 dB (típico) |
| Pantalla | Pantalla LCD TFT a color de 6,5 pulgadas |
| Interfaces de comunicación | USB, LAN (LXI), GPIB (opcional) |
| Dimensiones y peso | 324 mm × 162 mm × 93 mm; aproximadamente 3,6 kg |
Keysight (Agilent) N9324C Options:
- N9324C - PFR - Precision Frequency Reference
- N9324C - TG7 - Tracking Generator (5 MHz to 7 GHz)
- N9324C - P20 - Preamplifier (1 MHz to 20 GHz)
- N9324C - AMA - AM/FM Modulation Analysis
- N9324C - DMA - ASK/FSK Modulation Analysis
- N9324C - TMG - Time-Gated Spectrum Analysis
- N9324C - EMC - EMI Bandwidths (CISPR Compliant: 200 Hz, 9 kHz, 120 kHz, 1 MHz)
- N9324C - SCN - Channel Scanner
- N9324C - MNT - Spectrum Monitor
- N9324C - SEC - Security Features
- N9324C - TPN - Task Planner
- N9324C - PWM - USB Average Power Sensor Support (Keysight U2000 Series)
- N9324C - PWP - USB Peak and Average Power Sensor Support (Keysight U2020 and U2042/44 X-Series)
- N9324C - G01 - GPIB Interface
| Model | N9324C |
|---|

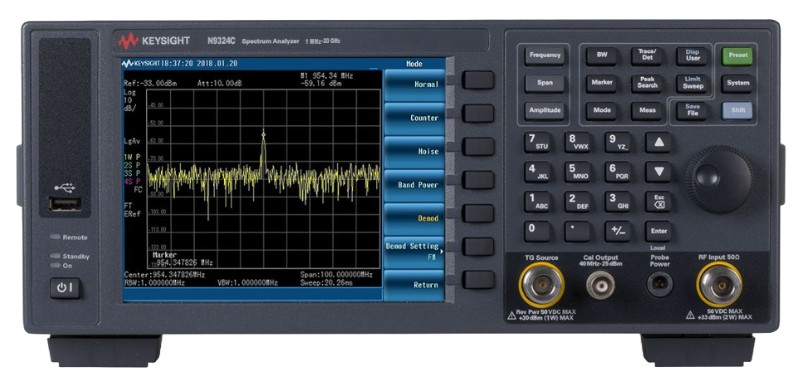

Keysight (Agilent) N9324C Spectrum Analyzer
The Keysight (Agilent) N9324C Spectrum Analyzer meets a wide range of demanding RF test needs with multiple functionalities that cover spectrum analysis, signal monitoring, and transmission/reflection measurements. This analyzer features optimized measurement speed for higher test efficiency. Keysight (Agilent) N9324C Spectrum Analyzer is ideal for general-purpose applications such as AM/FM tune and listen, analog or ASK/FSK demodulation, SCPI code compatibility, stimulus-response, and EMI interference analysis.
Keysight (Agilent) N9324C Spectrum Analyzer provides fast RF spectrum analysis from 1 MHz to 20 GHz. It can dentify interfering signals from unwanted or unexpected transmissions with a powerful spectrum monitoring feature. The automation and communication interface offers industry-standard SCPI language support and USB / GPIB / LAN connectivity choices. It enables you to automatically implement up to 20 predefined measurements and reduce test setup time by 95% with the task planner feature. Keysight (Agilent) N9324C Spectrum Analyzer provides straight forward and efficient operation with marker demodulation, one-button optimization, and user-definable soft keys.
Specifications for the Keysight (Agilent) N9324C Spectrum Analyzer Include:
| Frequency range | 1 MHz to 20 GHz |
| DANL @1 GHz | -144 dBm |
| Maximum Analysis Bandwidth | 1 MHz |
| Phase Noise @1 GHz | -92 dBc/Hz |
