Keysight (Agilent) RP7941A
| Atributo | Valor |
|---|---|
| Tipo de módulo | Módulo de alimentación para osciloscopio |
| Compatibilidad | Osciloscopios Keysight serie Infiniium |
| Función principal | Análisis de integridad de energía y pruebas de potencia |
| Número de canales | 4 canales de medición simultánea |
| Ancho de banda | Hasta 1 GHz |
| Rango de tensión | Hasta ±30 V |
| Resolución de medición | Alta resolución de 12 bits |
| Interfaz de conexión | Conector compatible con chasis de osciloscopio Infiniium |
| Software incluido | Software de análisis de potencia integrado en el osciloscopio |
| Aplicaciones | Pruebas de riado, transitorio de carga, análisis de bus de alimentación y caracterización de convertidores DC-DC |
Keysight (Agilent) RP7941A Options:
- RP7941A - UK6 - Commercial calibration with test results data
| Model | RP7941A |
|---|

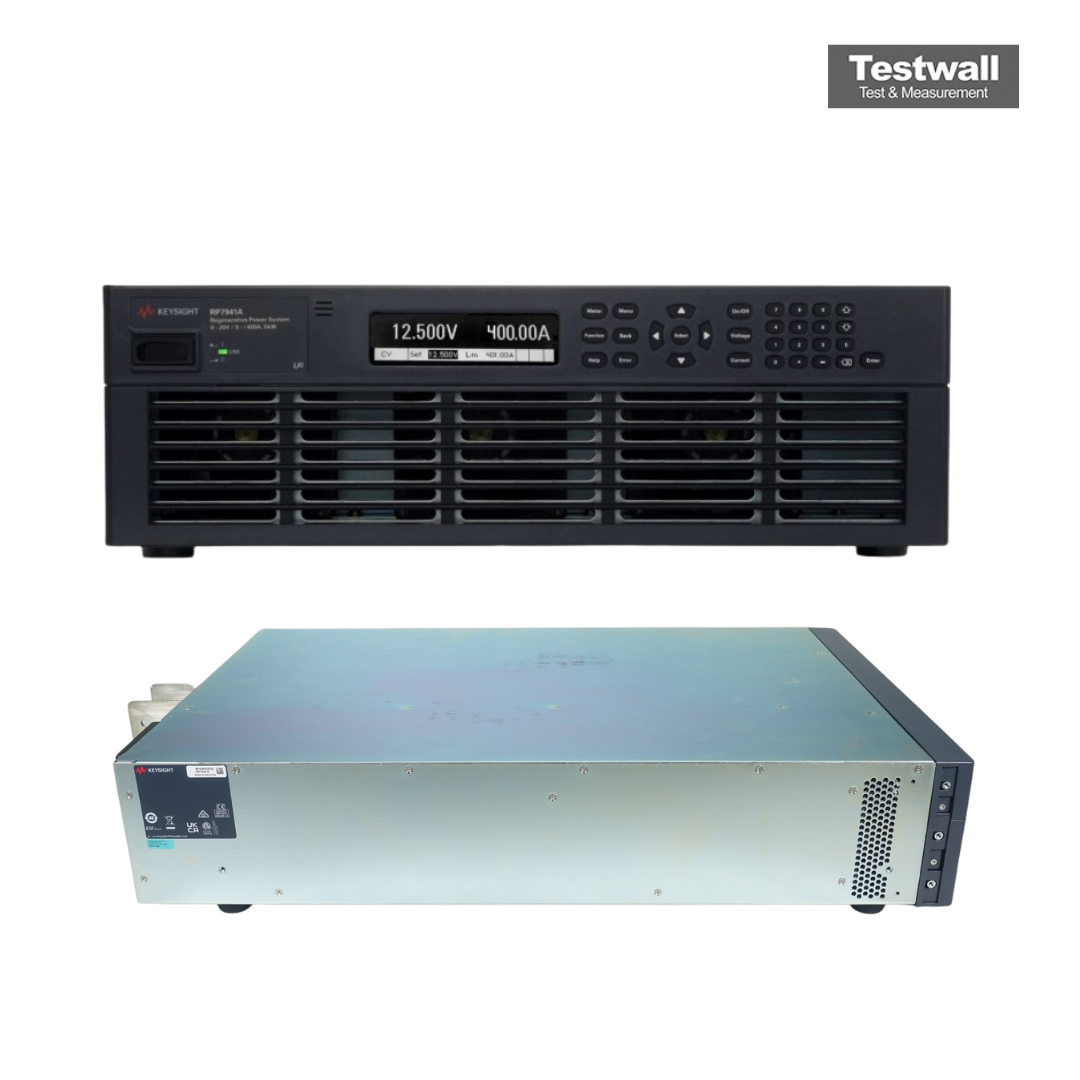

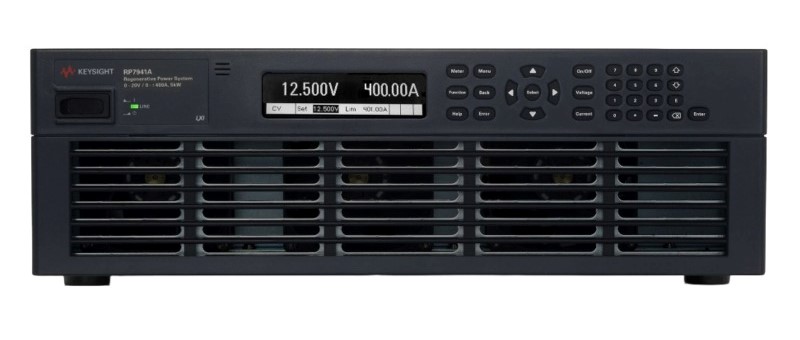

Keysight (Agilent) RP7941A Regenerative DC Power Supply
The Keysight RP7941A regenerative power system is a bi-directional, regenerative DC power supply with highly integrated safety features that protect both your people and your device under test. In addition, by combining the seamless source and load functionality into a compact 3U-high package, not only do you save energy but also floor space and integration time. With efficiency of more than 80%, the RP7941A helps you reduce energy consumption with less electricity usage when souring or sinking and less heat dissipation when sinking.
The Keysight RP7941A power supplies' autoranging output characteristic makes it much more flexible than rectangular, or traditional, output characteristic power supplies because they expand the power curve, giving the user more voltage and cur combinations in one power supply. Through programable resistance, the RP7941A DC sources simulate the effects of internal resistance of the battery, enabling them to emulate the operation of batteries in diffe charge states. The Keysight RP7941A power supplies comes standard with GPIB, Ethernet/LAN, USB 2.0 giving you the flexibility to use your I/O interface of choice today and safeguard your test setup for the future.
Specifications for the Keysight (Agilent) RP7941A Regenerative DC Power Supply Include:
| Voltage Range | 0 to 20V |
| Cur Range | 0 to ± 400A |
| Total Power | 5kW |
| Resistance Programming Range | 0 to 0.98 Ω |
