Keysight (Agilent) U1733C
| Atributo | Valor |
|---|---|
| Rango de frecuencia | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz |
| Rango de medición de capacitancia | 1 pF a 100 mF |
| Rango de medición de inductancia | 1 µH a 100 H |
| Rango de medición de resistencia | 10 mΩ a 100 MΩ |
| Precisión básica | 0,1% |
| Pantalla | Pantalla LCD de doble línea con retroiluminación |
| Alimentación | 6 pilas AA (LR6) o adaptador de corriente alterna |
| Funciones de medición | Capacitancia (C), Inductancia (L), Resistencia (R), Factor de disipación (D), Factor de calidad (Q), Ángulo de fase (θ) |
| Interfaz de comunicación | USB e IR (infrarrojo) |
| Dimensiones y peso | 210 mm x 90 mm x 46 mm, aproximadamente 490 g (con pilas) |
| Model | U1733C |
|---|

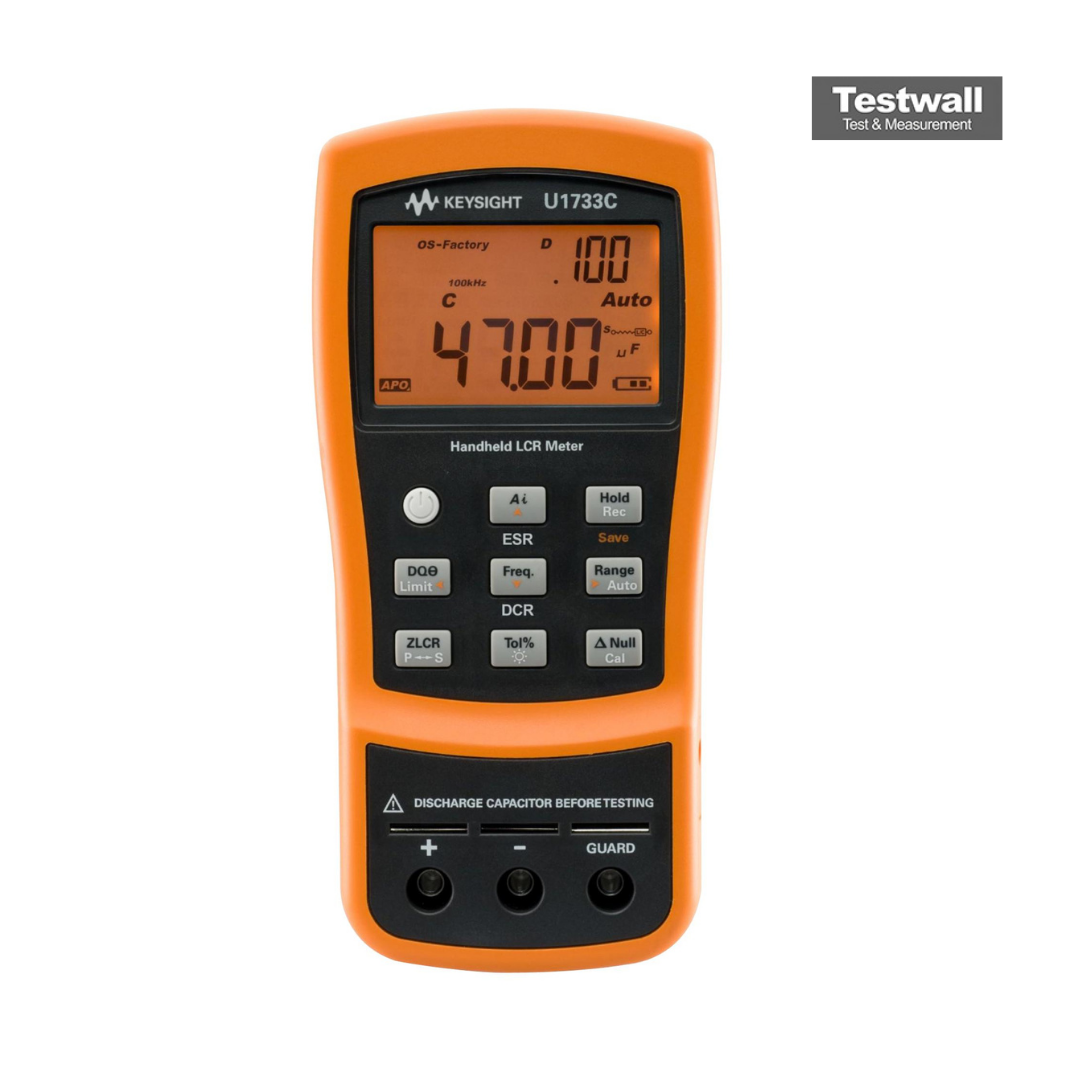

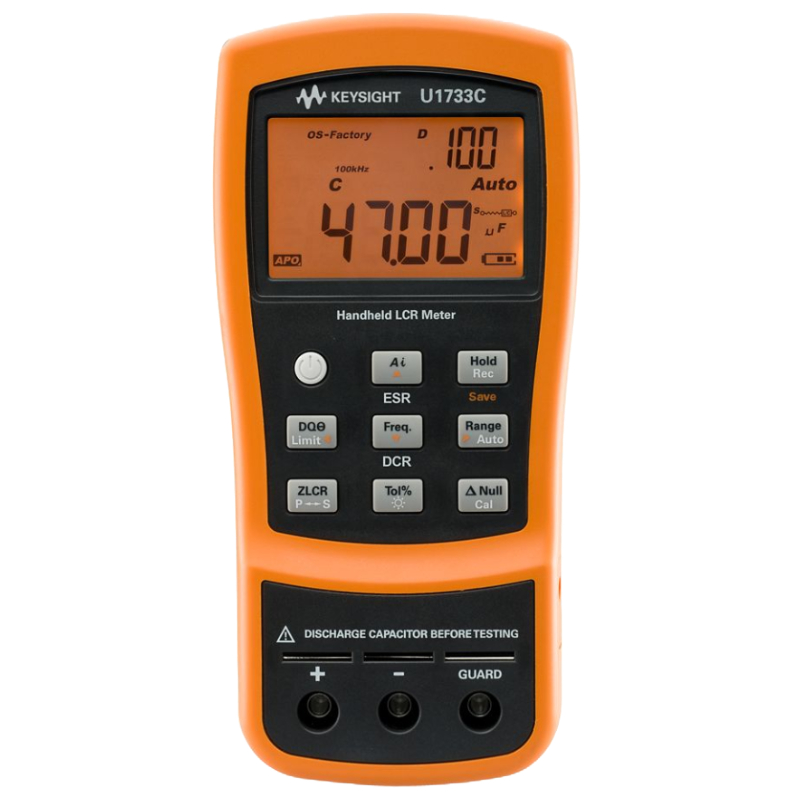

Keysight (Agilent) U1733C LCR Meter
The Keysight (Agilent) U1733C LCR Meter is high performance handheld LCR meter that provides precise measurements of capacitance, inductance, resistance, dissipation factor, quality factor, and impedence angle over a wider frequency range. U1733C LCR meter allows you to measure at frequencies as high as 100 kHz €”providing more flexibility to test a wider range of components. Get measurements done faster using the one-touch automatic identification function button, which displays component type and more detailed component analysis such as Z, ESR, and DCR.
Keysight (Agilent) U1733C LCR Meter made testing and measuring experience is easy, eliminating unnecessary trial and error time with just a single push of a button and automated identification (AI). The battery lasts up to 16 hours, ideal for testing on the go. U1733C LCR Meter supports advanced features like automatic component identification, data logging, and connectivity options for PC integration. U1733C is very useful for applications such as testing aluminum electrolytic capacitors used in switching power supply circuits. Keysight (Agilent) U1733C LCR Meter that is built for your convenience, you can perform quick and basic LCR measurements at an affordable price.
Specifications for the Keysight (Agilent) U1733C LCR Meter Include:
| Test frequencies | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz |
| Accuracy | 0.2% |
| Resolution counts | 20,000 |
| Power Consumption | 225 mVA maximum without backlight |
