Keysight (Agilent) U2651A
| Atributo | Valor |
|---|---|
| Número de canales digitales de E/S | 32 canales |
| Voltaje de operación | 3,3 V / 5 V TTL/CMOS compatible |
| Corriente máxima de salida por canal | 8 mA (sumidero), 8 mA (fuente) |
| Interfaz de comunicación | USB 2.0 |
| Velocidad de transferencia de datos | Hasta 1 Msamples/s |
| Compatibilidad con sistema operativo | Windows XP/Vista/7/8/10 |
| Software incluido | Keysight IO Libraries Suite, compatible con LabVIEW y MATLAB |
| Temperatura de operación | 0 °C a 55 °C |
| Dimensiones (An × Al × Pr) | 105 mm × 197 mm × 27 mm |
| Peso | Aproximadamente 0,35 kg |
Keysight (Agilent) U2651A Options:
- U2651A - U2903A - Terminal block and SCSI-II 100-pin connector with 1-meter cable
- U2651A - U2904A - Terminal block and SCSI-II 100-pin connector with 2-meter cable
| Model | U2651A |
|---|

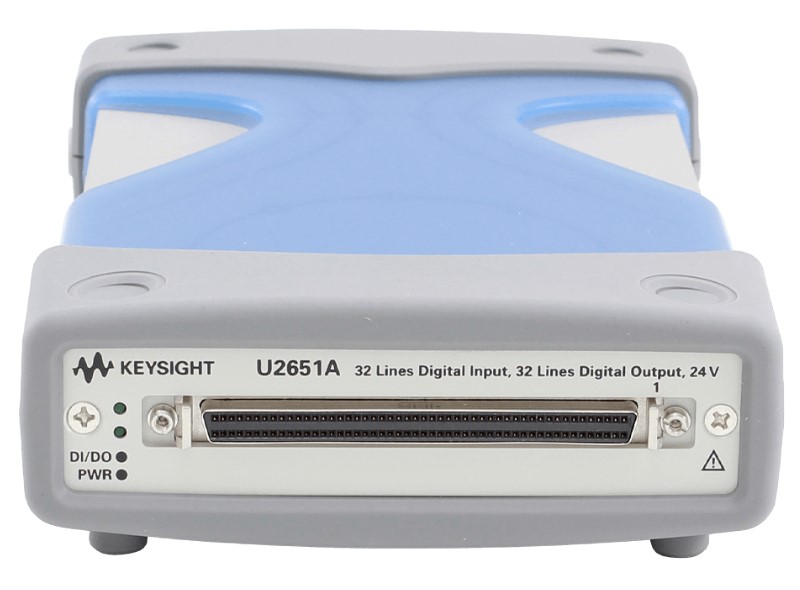

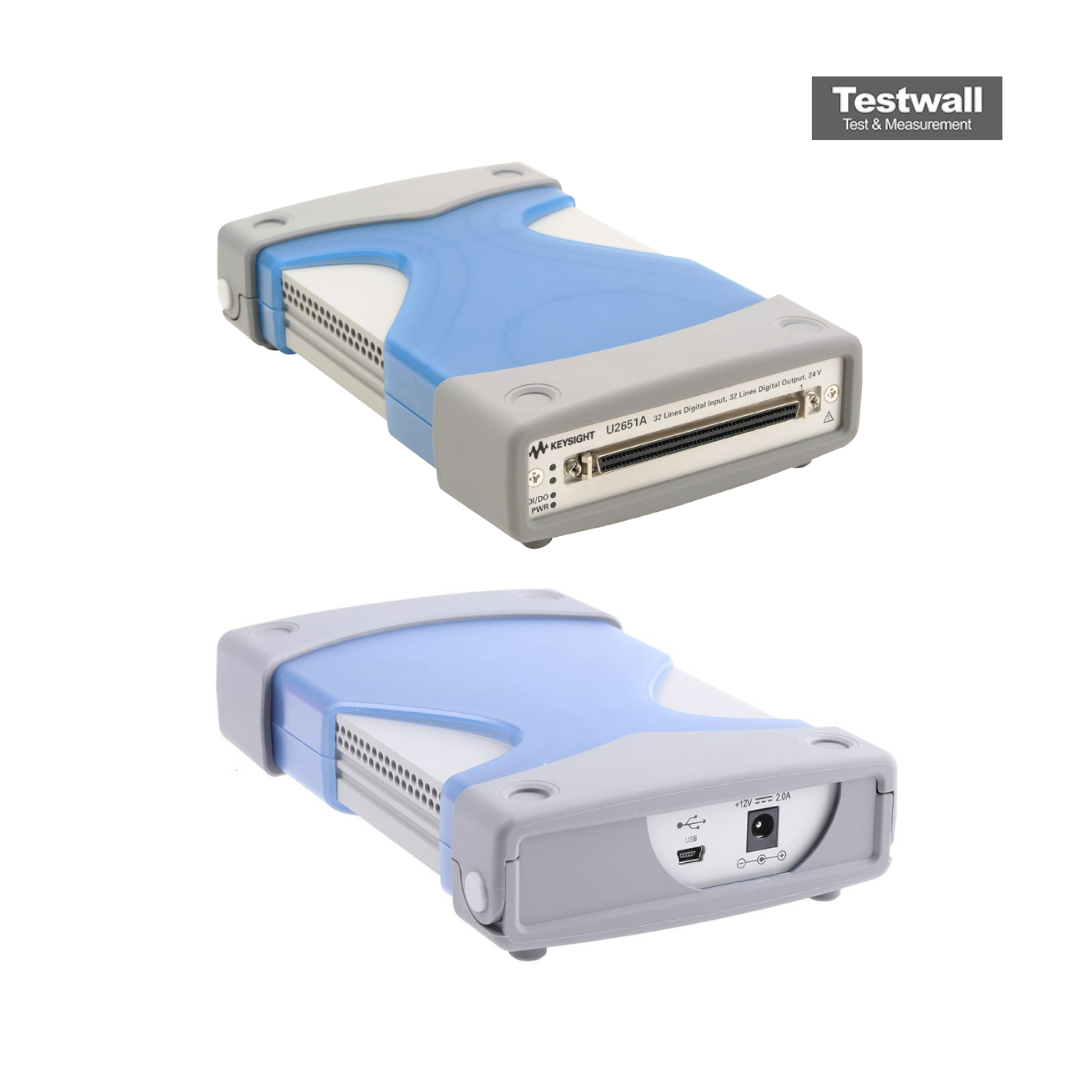

Keysight (Agilent) U2651A 32 Input, 32 Output USB Modular Digital I/O
The Keysight U2651A USB Modular Digital I/O device is a high-performance module with 64 isolated digital inputs / outputs. The U2651A enables high-speed USB 2.0 quick and easy setup on the PC without the need to install it in your computer. With a high voltage protection of 1250 Veff, the U2651A is the ideal tool for industrial automation and control such as driving relays, actuators, or valves. Keysight U2651A USB Modular Digital I/O device work seamlessly with various application development environments, including Keysight VEE, MATLAB ® R2007a, NI LabVIEW and Microsoft ® Visual Studio ®.
Keysight U2651A USB Modular Digital I/O lets you conveniently connect the unit directly to components without the need for additional overcur protection. To minimise the chance of crossed wires, this product is electromagnetically compatible, so it won't interfere with the function of nearby components. Wide input voltage range of 10 to 24 V to sense the status of external sensors. High output voltage range of 5 to 35 V provides the capability to drive a wide array of actuators in industrial automation applications. Keysight U2651A USB Modular Digital I/O supports SCPI and IVI-COM making it compatible with a wide range of Keysight Development Environments which minimize work time and provides higher flexibility of software choices.
Specifications for the Keysight (Agilent) U2651A 32 Input, 32 Output USB Modular Digital I/O Include:
| Number of isolated bits | 32-bit (I/P), 32-bit (O/P) |
| Voltage range | 24 V (I/P), 5 V to 35 V (O/P) |
| Maximum transient voltage | 1250 Vpeak |
| Power consumption | +12 V at 235 mA (Typical) |
