Keysight (Agilent)

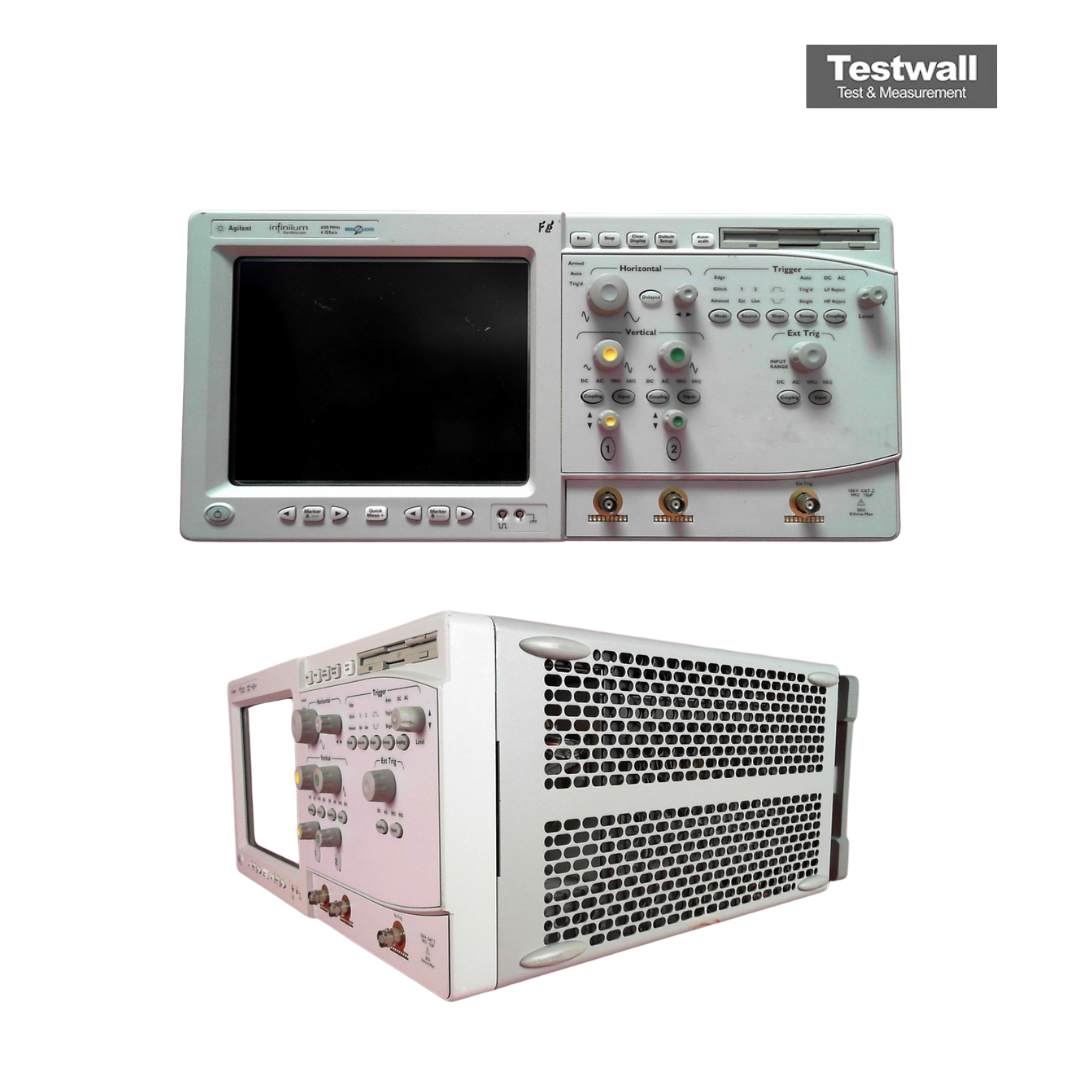

Keysight Technologies 54830B
600 MHz Ancho de banda
2 Canales analógicos
16 Canales digitales
4 GSa/s Frecuencia de muestreo máxima
4 Mpts por canal Profundidad de memoria
| Atributo | Valor |
|---|---|
| Ancho de banda | 600 MHz |
| Canales analógicos | 2 |
| Canales digitales | 16 |
| Frecuencia de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 4 Mpts por canal |
| Pantalla | Pantalla de color de 8,4 pulgadas |
| Tipo de osciloscopio | Osciloscopio de señal mixta (MSO) |
| Resolución vertical | 8 bits |
| Sensibilidad vertical | 1 mV/div a 5 V/div |
| Interfaz de comunicación | GPIB, LAN, USB |
Keysight Technologies 54830B Options:
- 54830B - 040 - 8 Mpts on half the acquisition channels (interleaved) or 4 Mpts on each acquisition channel
- 54830B - 080 - 16 Mpts on half the acquisition channels (interleaved) or 8 Mpts on each acquisition channel
- 54830B - 160 - 32 Mpts on half the acquisition channels (interleaved) or 16 Mpts on each acquisition channel
- 54830B - 320 - 64 Mpts on half the acquisition channels (interleaved) or 32 Mpts on each acquisition channel
- 54830B - 640 - 128 Mpts on half the acquisition channels (interleaved) or 64 Mpts on each acquisition channel
- 54830B - 001 - Add two 1165A, 10:1 passive probes
- 54830B - 002 - Add one 1162A 1:1 passive probe
- 54830B - 004 - Add four 1165A, 10:1 passive probes
- 54830B - 005 - Add one 54826-68701 logic probe kit
- 54830B - 007 - Add one Wedge adapter kit (1 each 3/8/16 signals, 0.5 mm)
- 54830B - 008 - Add one 1153A 200 MHz differential probe
- 54830B - 011 - Add one 1155A 2 Channel, 750 MHz active probe
- 54830B - 012 - Add one 1156A 1.5 GHz active probe
- 54830B - 016 (E2654A) - EZ-Probe Positioner: includes base, joystick, and articulating arm
- 54830B - 017 - ≥20 GB removable hard disk drive. Replaces ≥20 GB internal hard disk with a ≥20 GB removable hard disk
- 54830B - 006 (E2699A) - My Infiniium Integration Package Option
- 54830B - 003 (N5384A) - High-Speed Serial Data Analysis Software Option
- 54830B - 021 (N5391A) - Low-Speed Serial Data Analysis Software Option
- 54830B - 015 (E2681A) - EZJIT Jitter Analysis Software Option
- 54830B - N5383A - Infiniium Performance Upgrade Kit (upgrade system software from A.02.xx to A.03.xx or higher, Windows XP Pro)
- 54830B - E2690A - Advanced Time Interval and Jitter Analysis (US and Canada)
- 54830B - N5385A - Advanced Time Interval and Jitter Analysis (International)
- 54830B - E2692A - Basic Time Interval and Jitter Analysis (US and Canada)
- 54830B - N5387A - Basic Time Interval and Jitter Analysis (International)
- 54830B - N5392A - Ethernet Electrical Performance Validation and Compliance Software
- 54830B - N5395A - Ethernet Electrical Compliance Test Fixture
- 54830B - N5396A - Gigabit Ethernet Jitter Test Cable
- 54830B - E2698A - Ethernet Masks Option
- 54830B - E2683A - USB 2.0 Test Option (for 54830B/D Series with software version A.03.xx or higher)
- 54830B - N2855A - USB 2.0 Test Option (for 54830B/D Series with software version A.02.xx or lower)
- 54830B - E2646A - Additional USB 2.0 SQiDD Test Fixture
- 54830B - E2625A - Communication Mask Test Kit Option
- 54830B - E2682A - VoiceControl Option (for 54830B/D Series with software version A.03.xx or higher)
- 54830B - N2850A - VoiceControl Option (for 54830B/D Series with software version A.02.xx or lower)
- 54830B - 1CM (E2609B) - Add one rackmount kit
- 54830B - 1184A - Testmobile with keyboard and mouse tray, drawer for accessories
- 54830B - E5850A - Time-correlation fixture, link Infiniium scope to logic analyzer
- 54830B - OB3 - Printed service manual
- 54830B - OBF - Printed programmer's manual
- 54830B - AB2 - Printed user's quick start guide in simplified Chinese
- 54830B - ABJ - Printed user's quick start guide in Japanese
- 54830B - A6J - ANSI Z540-compliant calibration
| Model | 54830B |
|---|
El osciloscopio Keysight (Agilent) 54830B Infiniium ofrece un ancho de banda de 600 MHz, 2 canales y tasa de muestreo hasta 4 GSa/s, con memoria MegaZoom opcional de 128 Mpts.
Ideal para diseños digitales rápidos, admite análisis de jitter, datos seriales y Ethernet, e integración con analizadores lógicos.
Testwall puede suministrar el Keysight (Agilent) 54830B usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento. Contáctenos para calibración o reparación del Keysight (Agilent) 54830B.
