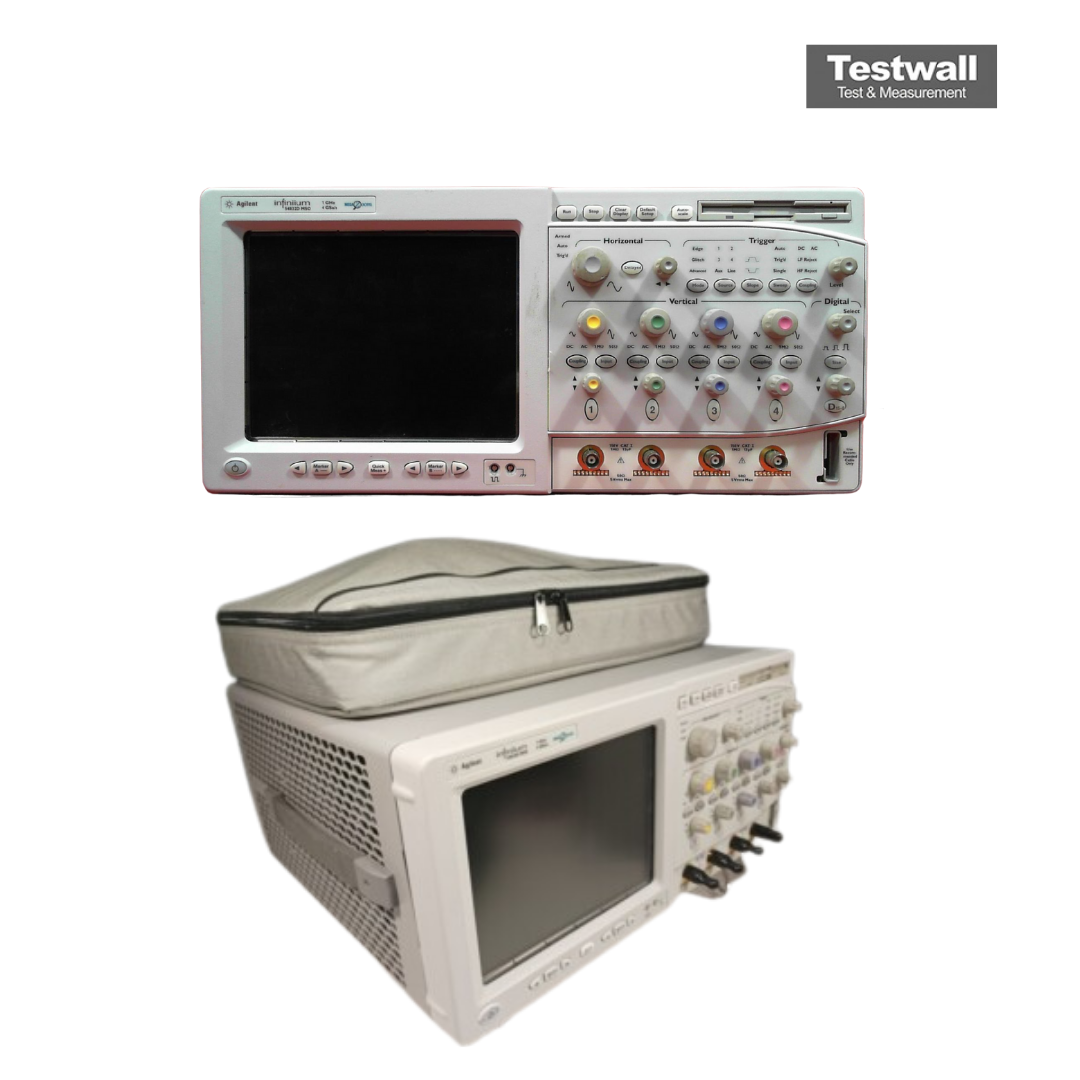

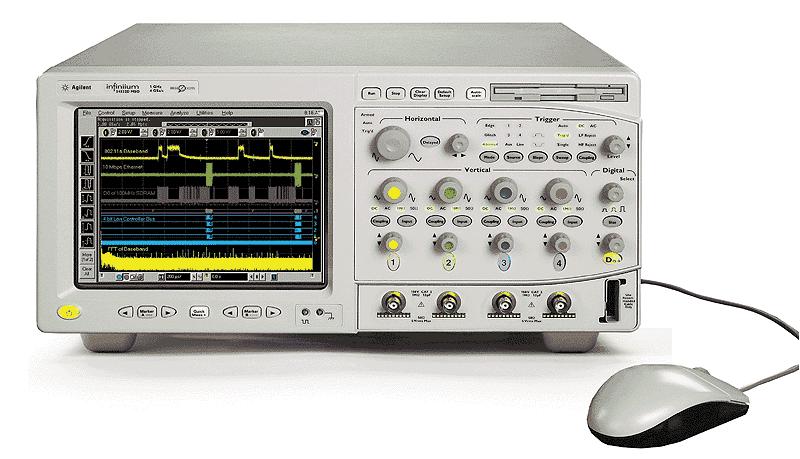

Keysight Technologies 54832D
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Canales | 4 canales analógicos + 16 canales digitales |
| Frecuencia de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 32 Mpts por canal |
| Pantalla | Pantalla táctil a color de 15,3 pulgadas |
| Tiempo de subida | 350 ps |
| Sensibilidad vertical | 1 mV/div a 5 V/div |
| Impedancia de entrada | 50 Ω o 1 MΩ |
| Interfaz | GPIB, LAN, USB |
| Sistema operativo | Windows XP |
Keysight Technologies 54832D Options:
- 54832D - 040 - 8 Mpts on half the acquisition channels (interleaved) or 4 Mpts on each acquisition channel
- 54832D - 080 - 16 Mpts on half the acquisition channels (interleaved) or 8 Mpts on each acquisition channel
- 54832D - 160 - 32 Mpts on half the acquisition channels (interleaved) or 16 Mpts on each acquisition channel
- 54832D - 320 - 64 Mpts on half the acquisition channels (interleaved) or 32 Mpts on each acquisition channel
- 54832D - 640 - 128 Mpts on half the acquisition channels (interleaved) or 64 Mpts on each acquisition channel
- 54832D - 001 - Add two 1165A, 10:1 passive probes
- 54832D - 002 - Add one 1162A 1:1 passive probe
- 54832D - 004 - Add four 1165A, 10:1 passive probes
- 54832D - 005 - Add one 54826-68701 logic probe kit
- 54832D - 007 - Add one Wedge adapter kit (1 each 3/8/16 signals, 0.5 mm)
- 54832D - 008 - Add one 1153A 200 MHz differential probe
- 54832D - 011 - Add one 1155A 2 Channel, 750 MHz active probe
- 54832D - 012 - Add one 1156A 1.5 GHz active probe
- 54832D - 016 (E2654A) - EZ-Probe Positioner: includes base, joystick, and articulating arm
- 54832D - 017 - 20 GB removable hard disk drive (replaces internal hard disk)
- 54832D - 006 (E2699A) - My Infiniium Integration Package Option
- 54832D - 003 (N5384A) - High-Speed Serial Data Analysis Software Option
- 54832D - 021 (N5391A) - Low-Speed Serial Data Analysis Software Option
- 54832D - 015 (E2681A) - EZJIT Jitter Analysis Software Option
- 54832D - E2625A - Communication Mask Test Kit Option
- 54832D - E2682A - VoiceControl Option (English only) for software version A.03.xx or higher
- 54832D - 1CM (E2609B) - Add one rackmount kit
- 54832D - 1184A - Testmobile with keyboard and mouse tray, drawer for accessories
- 54832D - E5850A - Time-correlation fixture, link Infiniium scope to logic analyzer
- 54832D - OB3 - Printed service manual
- 54832D - OBF - Printed programmer's manual
- 54832D - AB2 - Printed user's quick start guide in simplified Chinese
- 54832D - ABJ - Printed user's quick start guide in Japanese
- 54832D - A6J - ANSI Z540-compliant calibration
- 54832D - E2683A - USB 2.0 Test Option (for software version A.03.xx or higher)
- 54832D - N5397A - FPGA Dynamic Probe for Infiniium Mixed-Signal Oscilloscopes
- 54832D - N5392A - Ethernet Electrical Performance Validation and Compliance Software
- 54832D - E2698A - Ethernet Masks Option
- 54832D - N5383A - Infiniium Performance Upgrade Kit (upgrade system software from A.02.xx to A.03.xx or higher)
| Model | 54832D |
|---|
El Keysight (Agilent) 54832D es un osciloscopio mixto que ofrece 4 canales analógicos y 16 digitales, con un ancho de banda de 1 GHz y una tasa de muestreo de 4 GSa/s. Equipado con tecnología MegaZoom de hasta 128 Mpts y disparo mixto, asegura una captura precisa de señales. Opciones como la sonda dinámica FPGA y el análisis de jitter están disponibles.
Ideal para depurar circuitos mixtos, el 54832D sincroniza canales analógicos y digitales para identificar fallos con precisión. El acceso remoto y diversas opciones de pruebas de conformidad aumentan su versatilidad.
Testwall puede suministrar el Keysight (Agilent) 54832D usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Por favor, contáctenos directamente si necesita calibración o reparación del Keysight (Agilent) 54832D.
