Keysight (Agilent)

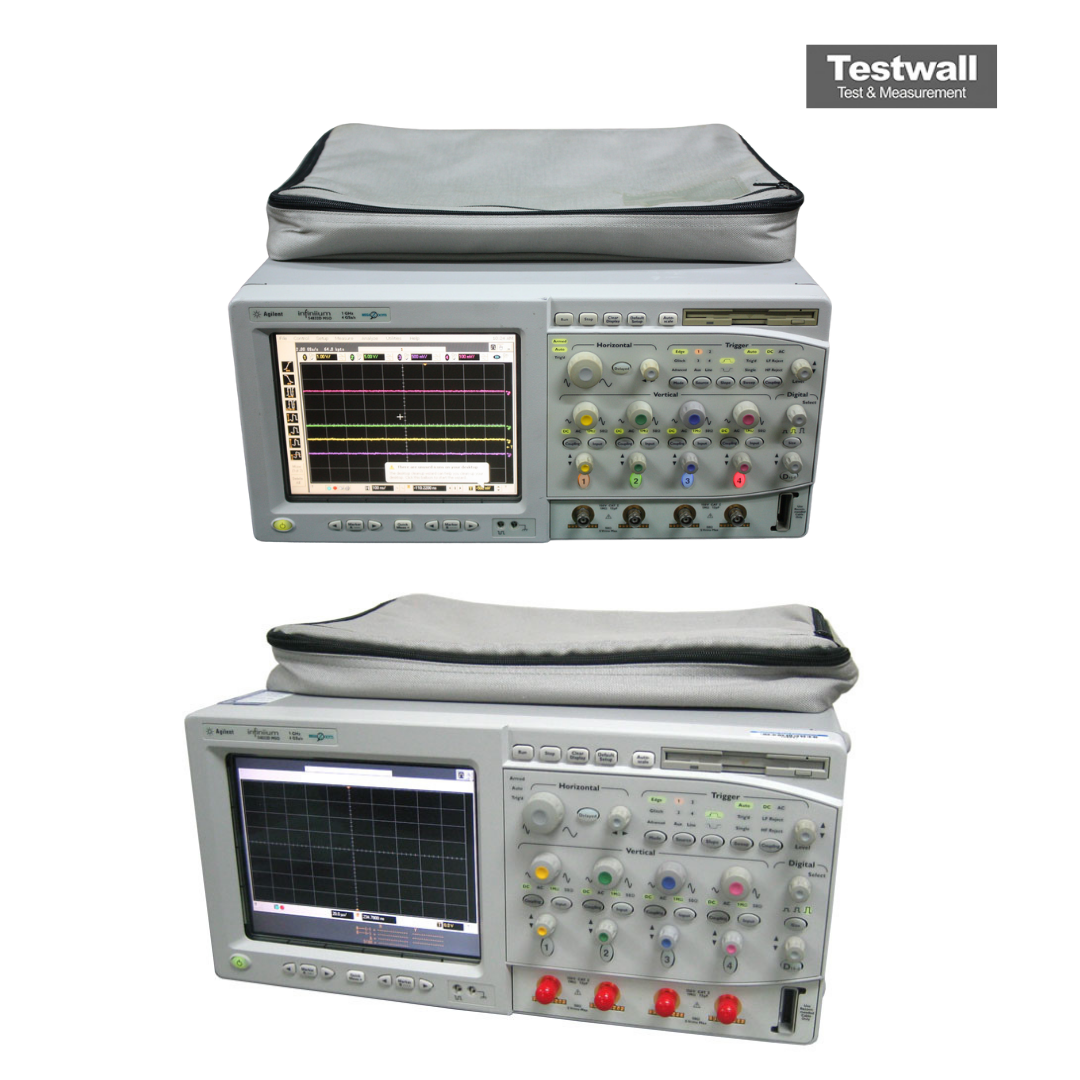

Keysight Technologies 54833D
1 GHz Ancho de banda
4 canales analógicos Canales
4 GSa/s Tasa de muestreo máxima
8 Mpts por canal Profundidad de memoria
Pantalla a color de 12,1 pulgadas XGA Pantalla
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Canales | 4 canales analógicos |
| Tasa de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 8 Mpts por canal |
| Pantalla | Pantalla a color de 12,1 pulgadas XGA |
| Canales lógicos digitales | 16 canales digitales (serie D) |
| Tiempo de subida | 350 ps |
| Sensibilidad vertical | 1 mV/div a 5 V/div |
| Base de tiempo | 2 ps/div a 20 s/div |
| Interfaz de comunicación | LAN, GPIB, USB |
Keysight Technologies 54833D Options:
- 54833D - 040 - 8 Mpts on half the acquisition channels (interleaved) or 4 Mpts on each acquisition channel
- 54833D - 080 - 16 Mpts on half the acquisition channels (interleaved) or 8 Mpts on each acquisition channel
- 54833D - 160 - 32 Mpts on half the acquisition channels (interleaved) or 16 Mpts on each acquisition channel
- 54833D - 320 - 64 Mpts on half the acquisition channels (interleaved) or 32 Mpts on each acquisition channel
- 54833D - 640 - 128 Mpts on half the acquisition channels (interleaved) or 64 Mpts on each acquisition channel
- 54833D - 001 - Add two 1165A, 10:1 passive probes
- 54833D - 002 - Add one 1162A 1:1 passive probe
- 54833D - 004 - Add four 1165A, 10:1 passive probes
- 54833D - 005 - Add one 54826-68701 logic probe kit
- 54833D - 007 - Add one Wedge adapter kit (1 each 3/8/16 signals, 0.5 mm)
- 54833D - 008 - Add one 1153A 200 MHz differential probe
- 54833D - 011 - Add one 1155A 2 Channel, 750 MHz active probe
- 54833D - 012 - Add one 1156A 1.5 GHz active probe
- 54833D - 016 (E2654A) - EZ-Probe Positioner: includes base, joystick, and articulating arm
- 54833D - 017 - ≥20 GB removable hard disk drive. Replaces ≥20 GB internal hard disk with a ≥20 GB removable hard disk
- 54833D - 006 (E2699A) - My Infiniium Integration Package Option
- 54833D - 003 (N5384A) - High-Speed Serial Data Analysis Software Option
- 54833D - 021 (N5391A) - Low-Speed Serial Data Analysis Software Option
- 54833D - 015 (E2681A) - EZJIT Jitter Analysis Software Option
- 54833D - N5383A - Infiniium Performance Upgrade Kit (upgrade system software from A.02.xx to A.03.xx or higher)
- 54833D - N5397A - FPGA Dynamic Probe for Infiniium Mixed-Signal Oscilloscopes
- 54833D - N5392A - Ethernet Electrical Performance Validation and Compliance Software
- 54833D - N5395A - Ethernet Electrical Compliance Test Fixture
- 54833D - N5396A - Gigabit Ethernet Jitter Test Cable
- 54833D - E2698A - Ethernet Masks Option
- 54833D - E2683A - USB 2.0 Test Option (for 54830B/D Series and 54833A with software version A.03.xx or higher)
- 54833D - E2646A - Additional USB 2.0 SQiDD Test Fixture
- 54833D - E2625A - Communication Mask Test Kit Option
- 54833D - E2682A - VoiceControl Option (for 54830B/D Series and 54833A with software version A.03.xx or higher)
- 54833D - E2690A - Advanced Time Interval and Jitter Analysis (US and Canada)
- 54833D - N5385A - Advanced Time Interval and Jitter Analysis (International)
- 54833D - E2692A - Basic Time Interval and Jitter Analysis (US and Canada)
- 54833D - N5387A - Basic Time Interval and Jitter Analysis (International)
- 54833D - 1CM (E2609B) - Add one rackmount kit
- 54833D - 1184A - Testmobile with keyboard and mouse tray, drawer for accessories
- 54833D - E5850A - Time-correlation fixture, link Infiniium scope to logic analyzer
- 54833D - OB3 - Printed service manual
- 54833D - OBF - Printed programmer's manual
- 54833D - AB2 - Printed user's quick start guide in simplified Chinese
- 54833D - ABJ - Printed user's quick start guide in Japanese
- 54833D - A6J - ANSI Z540-compliant calibration
| Model | 54833D |
|---|
El osciloscopio de señal mixta Keysight (Agilent) 54833D combina dos canales analógicos de 1 GHz y 16 canales de temporización digitales, con muestreo de hasta 4 GSa/s y memoria opcional de 128 Mpts. Perfecto para análisis avanzados de señales mixtas.
Diseñado para ingenieros que trabajan con FPGA o sistemas digitales complejos, el 54833D cuenta con memoria profunda MegaZoom, disparo mixto y panel frontal intuitivo con interfaz Windows.
Testwall puede suministrar el osciloscopio de señal mixta usado Keysight (Agilent) 54833D, completamente probado. Con soporte experto y entrega global, Testwall garantiza equipos de alto rendimiento con fiabilidad y calidad de servicio incomparables. Contáctenos para calibración o reparación del Keysight (Agilent) 54833D.
