Keysight (Agilent)

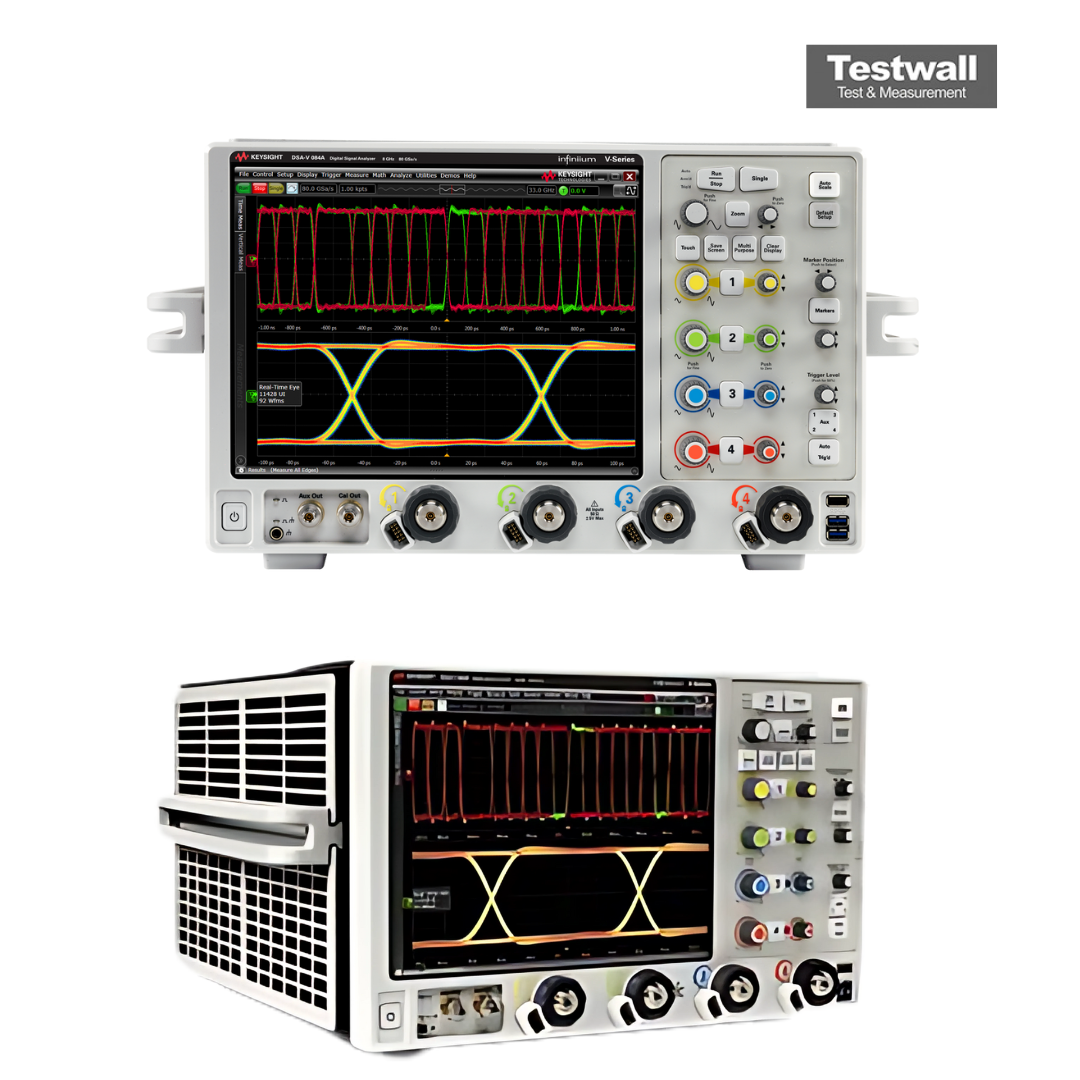

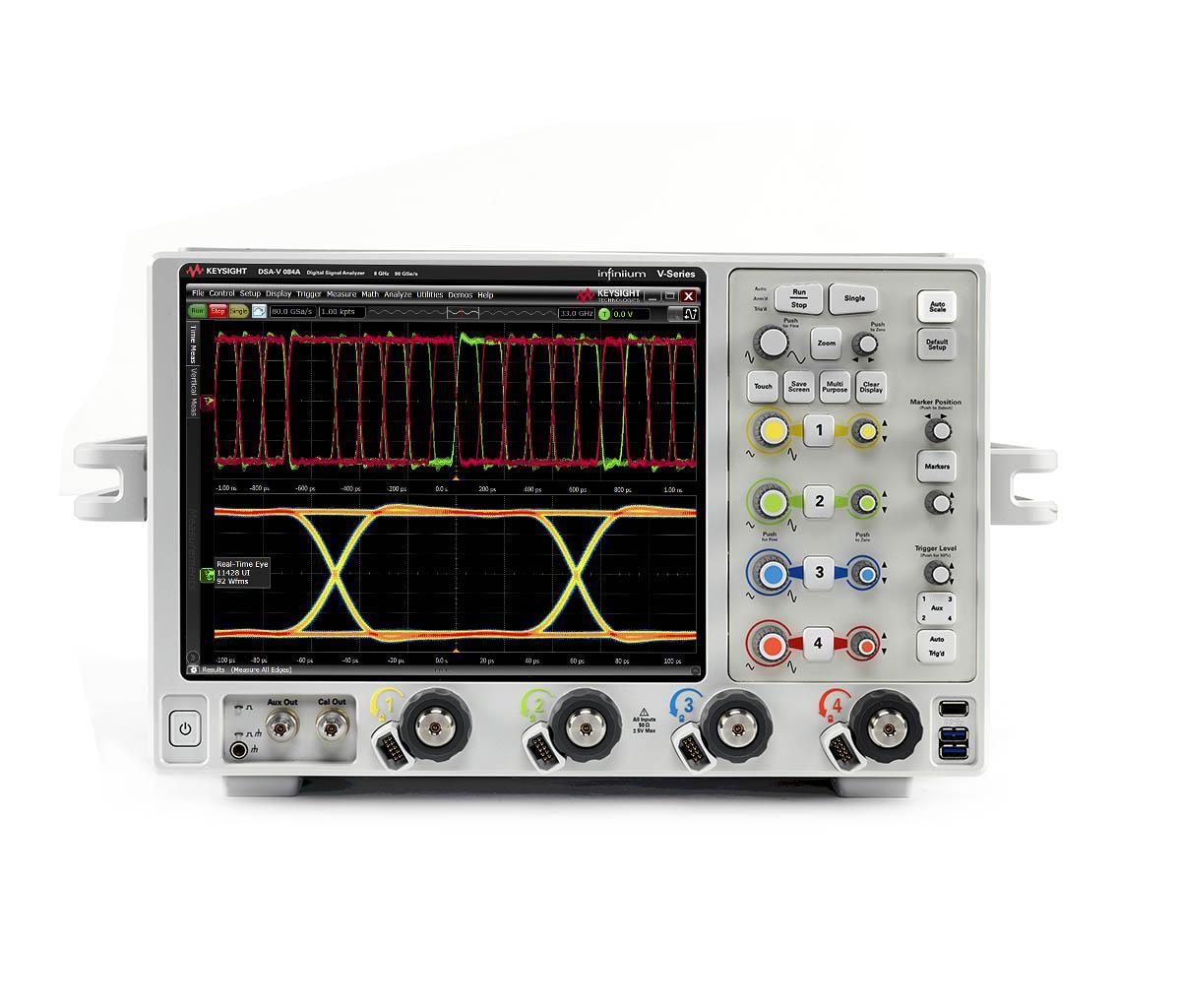

Keysight Technologies DSAV084A
4 Ch 8 GHz Digital Signal Analyzer
8 GHz Ancho de banda
4 canales analógicos Número de canales
40 GSa/s Tasa de muestreo máxima
2 Gpuntos (estándar) Profundidad de memoria
8 bits (hasta 10 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 8 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 40 GSa/s |
| Profundidad de memoria | 2 Gpuntos (estándar) |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Pantalla | Pantalla táctil capacitiva de 15 pulgadas |
| Sistema operativo | Windows 10 de 64 bits |
| Interfaces de conectividad | USB, LAN (LXI), GPIB (opcional) |
| Rango de temperatura de funcionamiento | 0 °C a 40 °C |
| Factor de forma | Instrumento de sobremesa (benchtop) |
Keysight Technologies DSAV084A Options:
- DSAV084A - DSOV000-100 - 100 Mpts/channel memory upgrade (Standard on DSA models)
- DSAV084A - DSOV000-200 - 200 Mpts/channel memory upgrade
- DSAV084A - DSOV000-500 - 500 Mpts/channel memory upgrade
- DSAV084A - DSOV000-01G - 1 Gpts/channel memory upgrade
- DSAV084A - DSOV000-02G - 2 Gpts/channel memory upgrade
- DSAV084A - DSOV000-810 - Hardware serial trigger upgrade
- DSAV084A - DSOV000-801 - 1 TB removable Solid State Drive (SSD) with Windows 7
- DSAV084A - DSOV000-805 - GPIB card-interface
- DSAV084A - DSOV000-808 - Performance verification and deskew fixture
- DSAV084A - N2117A - Stack mount kit option for stacking two frames
- DSAV084A - N5470A - Rack mount kit
- DSAV084A - DSOV000-A6J - ANSI Z540-1 compliant calibration
- DSAV084A - DSOV000-AMG - ACLASS Accreditation ANSI-ASQ National Accreditation Board, USA (calibration + uncertainties + guardbanding)
- DSAV084A - DSOV13GBW - Bandwidth upgrade to 13 GHz
- DSAV084A - DSOV16GBW - Bandwidth upgrade to 16 GHz
- DSAV084A - DSOV20GBWU - Bandwidth upgrade to 20 GHz
- DSAV084A - DSOV25GBWU - Bandwidth upgrade to 25 GHz
- DSAV084A - DSOV33GBWU - Bandwidth upgrade to 33 GHz
- DSAV084A - N2810A-100 - 50 Mpts/channel to 100 Mpts/channel memory upgrade
- DSAV084A - N2810A-200 - 100 Mpts/channel to 200 Mpts/channel memory upgrade
- DSAV084A - N2810A-500 - 200 Mpts/channel to 500 Mpts/channel memory upgrade
- DSAV084A - N2810A-01G - 500 Mpts/channel to 1 Gpts/channel memory upgrade
- DSAV084A - N2810A-02G - 1 Gpts/channel to 2 Gpts/channel memory upgrade
- DSAV084A - N2119AU - Hardware serial trigger upgrade
- DSAV084A - N2118AU - MSO upgrade
- DSAV084A - N8823A-1FP - EZJIT Complete jitter analysis (fixed license)
- DSAV084A - N8823A-1TP - EZJIT Complete jitter analysis (floating transportable license)
- DSAV084A - N5400A-1FP - EZJIT Plus jitter analysis (fixed license)
- DSAV084A - N5400A-1TP - EZJIT Plus jitter analysis (floating transportable license)
- DSAV084A - E2681A-1FP - EZJIT jitter analysis (fixed license)
- DSAV084A - E2681A-1TP - EZJIT jitter analysis (floating transportable license)
- DSAV084A - N8832A-001 - Frequency domain analysis
- DSAV084A - E2688A-1FP - High-speed SDA and clock recovery (fixed license)
- DSAV084A - E2688A-1TP - High-speed SDA and clock recovery (floating transportable license)
- DSAV084A - N5414B-1FP - InfiniiScan software triggering (fixed license)
- DSAV084A - N5414B-1TP - InfiniiScan software triggering (floating transportable license)
- DSAV084A - N5465A-1FP - InfiniiSim advanced signal de-embedding (fixed license)
- DSAV084A - N5465A-1TP - InfiniiSim advanced signal de-embedding (floating transportable license)
- DSAV084A - N5465A-3FP - InfiniiSim basic signal de-embedding (fixed license)
- DSAV084A - N5465A-3TP - InfiniiSim basic signal de-embedding (floating transportable license)
- DSAV084A - N8831A-001 - MATLAB - Basic digital analysis
- DSAV084A - N8831A-002 - MATLAB - Standard digital analysis
- DSAV084A - N8822A-1FP - MultiScope combining two oscilloscopes (fixed license)
- DSAV084A - N8822A-1TP - MultiScope combining two oscilloscopes (floating transportable license)
- DSAV084A - N2809A-1FP - PrecisionProbe calibration (fixed license)
- DSAV084A - N2809A-1TP - PrecisionProbe calibration (floating transportable license)
- DSAV084A - N5461A-1FP - Serial data equalization (fixed license)
- DSAV084A - N5461A-1TP - Serial data equalization (floating transportable license)
- DSAV084A - 64996A-1FP - Spectrum visualizer (fixed license)
- DSAV084A - 64996A-1TP - Spectrum visualizer (floating transportable license)
- DSAV084A - N5430A-1FP - User-defined function (fixed license)
- DSAV084A - N5430A-1TP - User-defined function (floating transportable license)
| Model | DSAV084A |
|---|
El Keysight (Agilent) DSAV084A es un analizador de espectro en tiempo real 8 GHz en formato osciloscopio para análisis RF avanzado.
Vista sincronizada tiempo-espectro ideal para depuración RF con alta sensibilidad.
Testwall puede suministrar el Keysight (Agilent) DSAV084A usado. Contáctenos para calibración o reparación.
