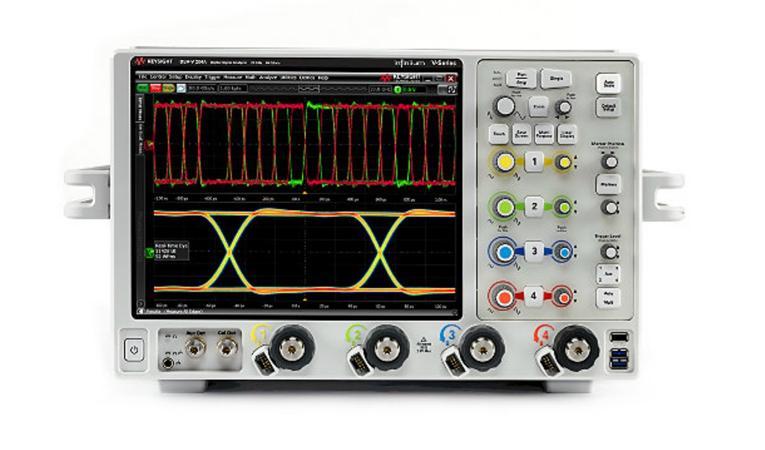

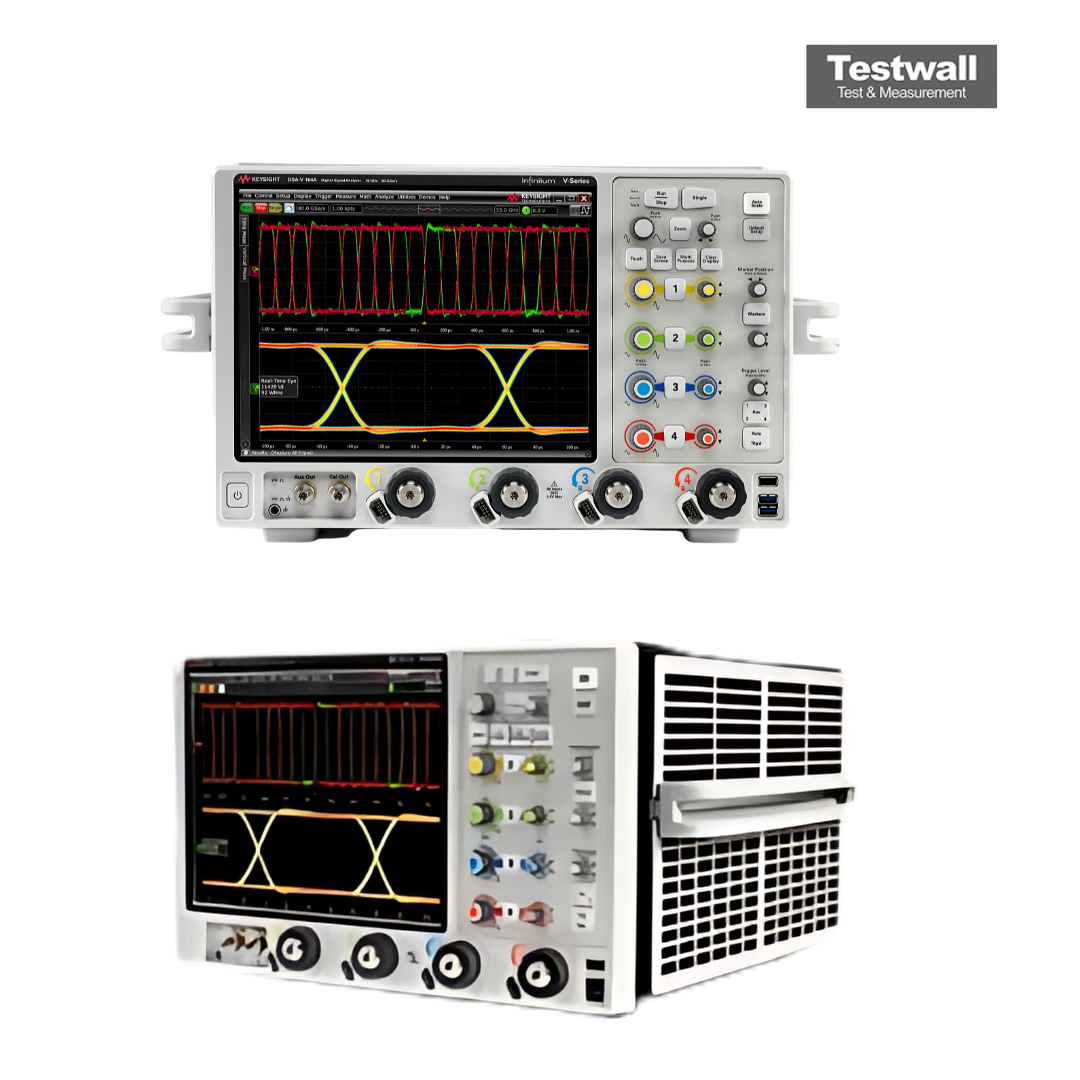

Keysight Technologies DSAV164A
High Performance Oscilloscope: 16 GHz, 4 Analog Channels
16 GHz Ancho de banda
4 canales analógicos Canales
80 GSa/s Frecuencia de muestreo máxima
2 Gpts (estándar) Profundidad de memoria
8 bits (hasta 10 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 16 GHz |
| Canales | 4 canales analógicos |
| Frecuencia de muestreo máxima | 80 GSa/s |
| Profundidad de memoria | 2 Gpts (estándar) |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Sensibilidad vertical | 1 mV/div a 1 V/div |
| Tiempo de subida | 26,4 ps |
| Pantalla | Pantalla táctil capacitiva de 15 pulgadas |
| Interfaz y conectividad | USB, LAN (LXI), GPIB opcional |
| Sistema operativo | Windows 7 de 64 bits |
Keysight (Agilent) DSAV164A Options:
- DSAV164A - DSOV000-100 - 100 Mpts/channel memory upgrade (standard on DSA model)
- DSAV164A - DSOV000-200 - 200 Mpts/channel memory upgrade
- DSAV164A - DSOV000-500 - 500 Mpts/channel memory upgrade
- DSAV164A - DSOV000-01G - 1 Gpts/channel memory upgrade
- DSAV164A - DSOV000-02G - 2 Gpts/channel memory upgrade
- DSAV164A - DSOV000-801 - 1 TB removable Solid State Drive (SSD) with Windows 7
- DSAV164A - DSOV000-805 - GPIB card-interface
- DSAV164A - DSOV000-808 - Performance verification and deskew fixture
- DSAV164A - DSOV000-A6J - ANSI Z540 compliant calibration
- DSAV164A - DSOV000-AMG - Calibration + uncertainties + guardbanding (accredited)
- DSAV164A - DSOV13GBW - Bandwidth upgrade to 13 GHz
- DSAV164A - DSOV16GBW - Bandwidth upgrade to 16 GHz
- DSAV164A - DSOV20GBWU - Bandwidth upgrade to 20 GHz
- DSAV164A - DSOV25GBWU - Bandwidth upgrade to 25 GHz
- DSAV164A - DSOV33GBWU - Bandwidth upgrade to 33 GHz
- DSAV164A - N2810A-100 - 50 Mpts/channel to 100 Mpts/channel memory upgrade
- DSAV164A - N2810A-200 - 100 Mpts/channel to 200 Mpts/channel memory upgrade
- DSAV164A - N2810A-500 - 200 Mpts/channel to 500 Mpts/channel memory upgrade
- DSAV164A - N2810A-01G - 500 Mpts/channel to 1 Gpts/channel memory upgrade
- DSAV164A - N2810A-02G - 1 Gpts/channel to 2 Gpts/channel memory upgrade
- DSAV164A - N2119AU - Hardware serial trigger upgrade
- DSAV164A - N2110A-500 - Additional 500 GB removable Solid State Drive (SSD) with Windows 7
- DSAV164A - N2110A-01T - Additional 1 TB removable Solid State Drive (SSD) with Windows 7
- DSAV164A - 82351B - GPIB card-interface
- DSAV164A - N2117A - Stack mount kit option for stacking two frames
- DSAV164A - N5470A - Rack mount
| Model | DSAV164A |
|---|
El Keysight (Agilent) DSAV164A Infiniium V-Series cuenta con 16 GHz de ancho de banda, 4 canales analógicos, muestreo de 80 GSa/s y 2 Gpts de memoria para análisis de señales. Con 1,32 mVrms de ruido y 100 fs de jitter, alcanza >5,5 ENOB y >50 dBC SFDR.
Ideal para ingenieros que analizan integridad de señal, incluye análisis de datos seriales, EZJIT Complete y 100 Mpts de memoria.
Testwall ofrece el Keysight (Agilent) DSAV164A usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentos confiables y alto rendimiento. Contáctenos para calibración o reparación del Keysight (Agilent) DSAV164A.
