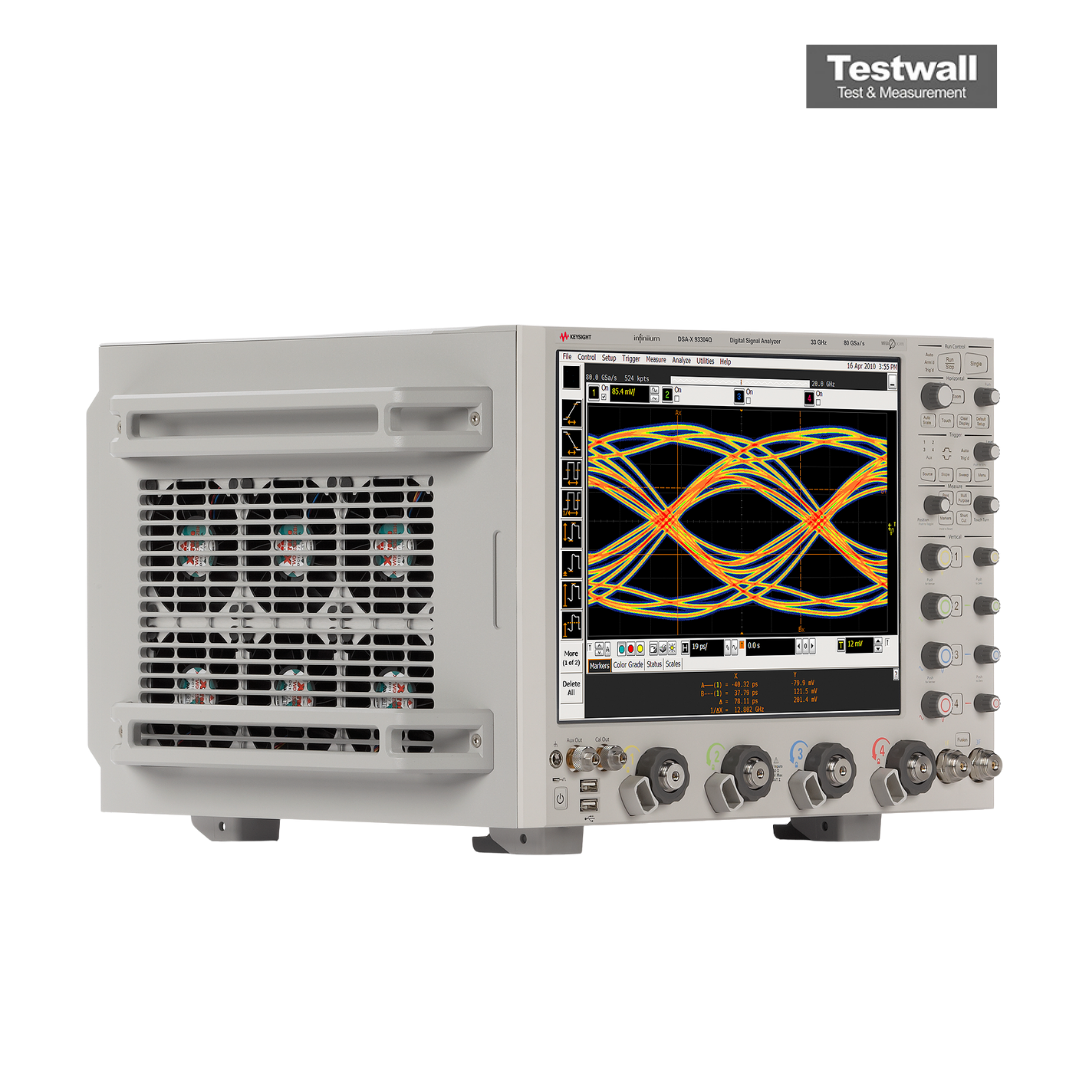

Keysight Technologies DSAX93304Q

Keysight Technologies DSAX93304Q Options:

• DSAX93304Q - 050 - 50 Mpts/ch memory
• DSAX93304Q - 100 - 100 Mpts/ch memory
• DSAX93304Q - 200 - 200 Mpts/ch memory
• DSAX93304Q - 500 - 500 Mpts/ch memory
• DSAX93304Q - 01G - 1 Gpt/ch memory
• DSAX93304Q - 02G - 2 Gpts/ch memory
• DSAX93304Q - A6J - ANSI Z540 compliant calibration
• DSAX93304Q - 1A7 - ISO17025 calibration
• DSAX93304Q - 820 - DVD RW
• DSAX93304Q - 805 - GPIB card-interface
• DSAX93304Q - 808 - Performance verification de-skew fixture for InfiniiMax III probe
• DSAX93304Q - 1CM - Rackmount kit option
• DSAX93304Q - 801 - Removable hard drive
• DSAX93304Q - 001 - PrecisionProbe: Characterize and compensate for loss from your input to your oscilloscope to 33 GHz
• DSAX93304Q - 827 - PrecisionProbe Advanced: Characterize and compensate for loss from your input to your oscilloscope to 33 GHz
• DSAX93304Q - 009 - InfiniiScan: Trigger on unique events including using zones on multiple channels and non-monotonic edges
• DSAX93304Q - 002 - EZJIT: Basic jitter analysis with measurement trending, time interval error and many more measurements
• DSAX93304Q - 004 - EZJIT+: Get in-depth analysis of your jitter by decomposing your jitter
• DSAX93304Q - 057 - EZJIT Complete: Understand your full real time by decomposing the noise that is impacting your margins
• DSAX93304Q - 003 - Serial data analysis: Recover clocks to 120 Gbs/s and view real-time eyes. Run mask testing.
• DSAX93304Q - 013 - InfiniiSim Basic: Waveform transformation software to remove or add three elements in your link
• DSAX93304Q - 014 - InfiniiSim Advanced: Waveform transformation software to remove or add 27 elements in your link
• DSAX93304Q - 011 - Infiniium offline: Put your scope onto your PC and maximize Infiniium's analysis tools with a true offline analysis engine
• DSAX93304Q - 010 - User-defined function: Create custom functions that run live on your oscilloscope with MathWorks MATLAB software
• DSAX93304Q - 061 - MATLAB Basic: Purchase your MATLAB and instrument control toolbox on the same PO as your scope
• DSAX93304Q - 062 - MATLAB Standard: Purchase your MATLAB, signal processing and filter design toolboxes on the same PO as your scope
• DSAX93304Q - 016 - Serial Data Equalization: Fast and accurate equalization using DFE, FFE, and CTLE modeling in real time
• DSAX93304Q - 005 - InfiniiScan: Trigger on events that hardware triggers can't handle
• DSAX93304Q - 065 - User-Defined Function: Combine Infiniium and MATLAB for even more analysis
• DSAX93304Q - 22 - PCI Express gen 1/2: Fast and easy way to debug your PCI Express designs
• DSAX93304Q - 44 - PCI Express gen 1/2/3: Guarantee your PCI Express gen3 designs
• DSAX93304Q - 23 - HDMI compliance: Quickly verify and debug your high-definition multimedia interface
• DSAX93304Q - 43 - SAS-2 compliance: Automatically execute SAS electrical checklist tests at each of the IT, CT, IR and CR interface points
• DSAX93304Q - 45 - DisplayPort source compliance: Verify and debug your DisplayPort interface designs
• DSAX93304Q - 31 - DDR1 verification: Save time with automated testing based on JEDEC DDR1 and LPDDR1 specifications
• DSAX93304Q - 32 - DDR3 verification: Save time with automated testing based on JEDEC DDR3 specifications
• DSAX93304Q - 33 - DDR2 verification: Save time with automated testing based on JEDEC DDR2 and LPDDR2 specifications
• DSAX93304Q - 35 - MIPI D-Phy verification: Execute D-PHY electrical checklist tests for CSI and DSI architectures
• DSAX93304Q - 47 - MIPI M-Phy verification: Execute M-Phy electrical tests
• DSAX93304Q - 21 - Ethernet compliance: Debug your 1000BASE-T, 100BASE-TX and 10BASE-T Ethernet designs
• DSAX93304Q - 36 - 10 Gbase-T compliance: Coverage of the 10GBASE-T transmitter electrical specifications
• DSAX93304Q - 30 - XAUI compliance: XAUI validation with 10GBASE-CX4, CPRI, OBSAI and Serial RapidIO support
• DSAX93304Q - 38 - SATA 6G compliance: Automated compliance testing for 1.5-Gbps, 3.0-Gbps and 6.0-Gbps SATA and eSATA transmitter
• DSAX93304Q - 40 - User-defined application: Fully customizable automated application for your Infiniium oscilloscope
• DSAX93304Q - 29 - USB 2.0 compliance: USB-IF recognized compliance for low/full and low/full/high-speed USB automated electrical test
• DSAX93304Q - 41 - USB 3.0 compliance: Validate and debug your USB 3.0 silicon, host, hub or device
• DSAX93304Q - 46 - USB HSIC: Validate and debug USB high speed inter-connect devices
• DSAX93304Q - 54 - MHL compliance: Validates MHL source designs according to the MHL 1.2 standard
• DSAX93304Q - 56 - Thunderbolt compliance: Measure the transmitter with the accuracy of the 90000 Q-Series
• DSAX93304Q - 049 - PCI Express gen3 protocol: Time-correlated views of physical and transaction layer errors, 128/130-bit decoding
• DSAX93304Q - 048 - Ethernet 10Gbase-KR protocol: World's only protocol tool for 10Gbase-KR 64/66-bit decoder
• DSAX93304Q - 041 - USB 3.0 protocol: Set up your scope to show USB 3.0 SuperSpeed protocol decode
• DSAX93304Q - 018 - SATA/SAS protocol: Simplify the validation of your SATA/SAS designs for 3G, 6G and 12 Gbit/s
• DSAX93304Q - 051 - DigRF v4: Extend your scope capability with DigRF v4 triggering and decode
• DSAX93304Q - 007 - I2C/SPI: Extend your scope capability with I2C and SPI triggering and decode
• DSAX93304Q - 015 - RS232/UART: Easily view the information sent over an RS-232, RS-422, RS-485 or other UART serial buses
• DSAX93304Q - 016 - USB 2.0 protocol: Trigger on and quickly view USB packets, payload, header and detailed information
• DSAX93304Q - 017 - PCI Express gen1 and 2 protocol: Quickly view packets, payload, header, and detailed information
• DSAX93304Q - 019 - MIPI D-Phy protocol: Easily view the information sent over MIPI serial buses
• DSAX93304Q - 063 - CAN/FlexRay: View both protocol-layer information and physical-layer signal characteristics
• DSAX93304Q - 042 - JTAG: Eliminate the difficult task of manually determining JTAG TAP controller states
