Keysight (Agilent)

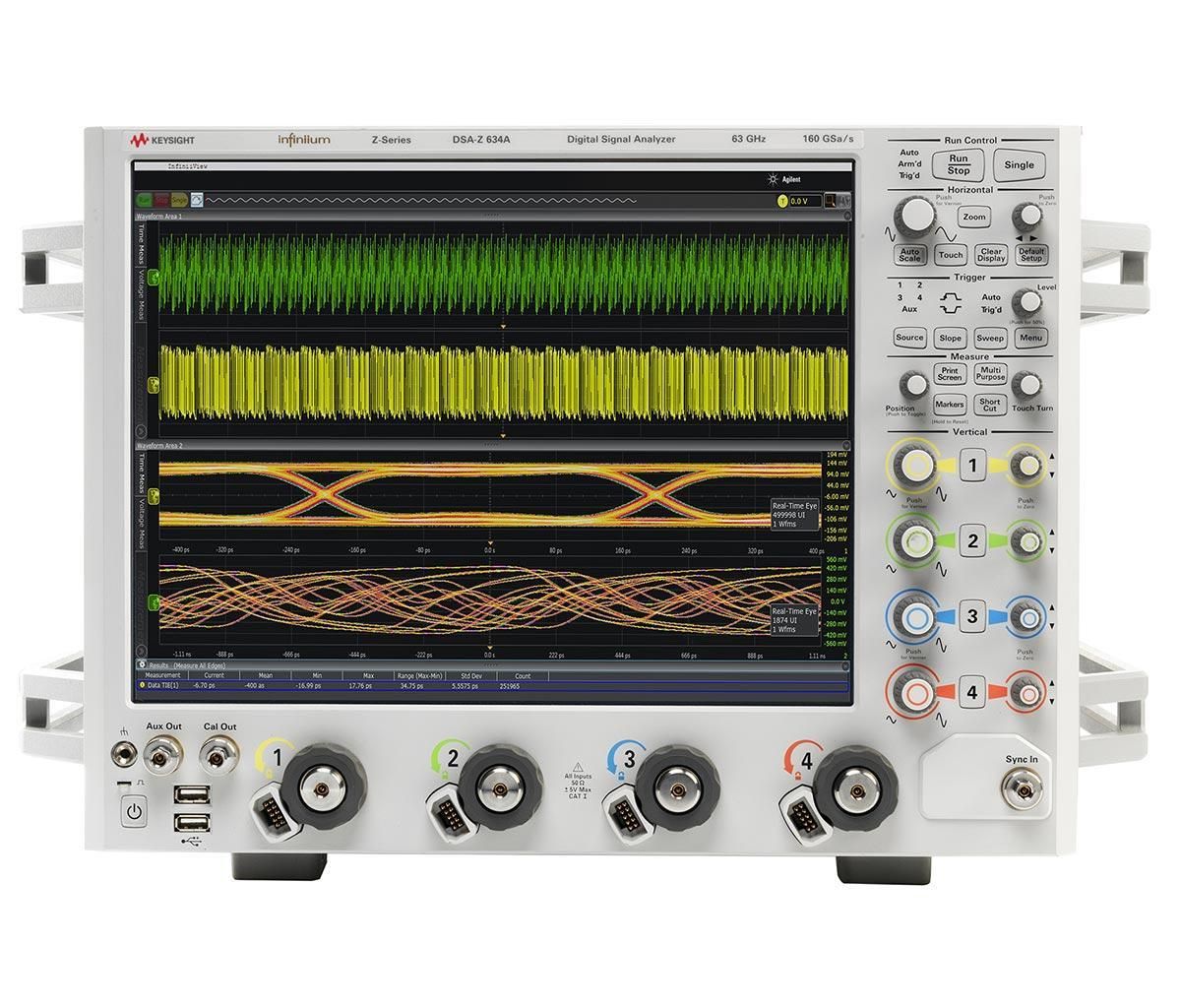

Keysight Technologies DSAZ634A
2 Ch 63 GHz/ 4 Ch 33GHz Digital Signal Analyzer
63 GHz Ancho de banda
160 GSa/s Tasa de muestreo
4 canales analógicos Número de canales
2 Gpts por canal Profundidad de memoria
8 bits (hasta 10 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 63 GHz |
| Tasa de muestreo | 160 GSa/s |
| Número de canales | 4 canales analógicos |
| Profundidad de memoria | 2 Gpts por canal |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas, resolución 1920 x 1080 |
| Sistema operativo | Windows 10 |
| Interfaz de conectividad | USB, LAN (LXI), PCIe, DisplayPort |
| Rango de temperatura de funcionamiento | 0 °C a 40 °C |
| Impedancia de entrada | 50 Ω |
Keysight Technologies DSAZ634A Options:
- DSAZ634A - DSOZ000-100 - 100 Mpts/ch memory
- DSAZ634A - DSOZ000-200 - 200 Mpts/ch memory
- DSAZ634A - DSOZ000-500 - 500 Mpts/ch memory
- DSAZ634A - DSOZ000-01G - 1 Gpt/ch memory
- DSAZ634A - DSOZ000-02G - 2 Gpts/ch memory
- DSAZ634A - DSOZ000-A6J - ANSI Z540 compliant calibration
- DSAZ634A - DSOZ000-1A7 - ISO17025 calibration
- DSAZ634A - DSOX90000-808 - Performance verification de-skew fixture for InfiniiMax III probe
- DSAZ634A - DSOZ000-801 - Removable SSD drive for Z-Series - 1TB
- DSAZ634A - DSOZ000-601 - Optional synchronization port for 20, 25, 33 GHz models
- DSAZ634A - N2764BU-025 - Bandwidth upgrade - 20 GHz to 25 GHz Z-Series
- DSAZ634A - N2764BU-033 - Bandwidth upgrade - 25 GHz to 33 GHz Z-Series
- DSAZ634A - N2764BU-050 - Bandwidth upgrade - 33 GHz to 50 GHz Z-Series
- DSAZ634A - N2764BU-059 - Bandwidth upgrade - 50 GHz to 59 GHz Z-Series
- DSAZ634A - N2764BU-062 - Bandwidth upgrade - 50 GHz to 63 GHz Z-Series
| Model | DSAZ634A |
|---|
The Keysight (Agilent) DSAZ634A delivers 63 GHz real-time bandwidth, 80 GSa/s on 4 channels or 160 GSa/s on 2, and up to 2 Gpts memory depth for high-resolution signal capture.
Supplied with a full accessory set including SSD, calibration cable, and high-frequency adaptors.
Testwall puede suministrar the used Keysight (Agilent) DSAZ634A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Contáctenos directly if you need calibration or repair of the Keysight (Agilent) DSAZ634A.
