Keysight (Agilent)

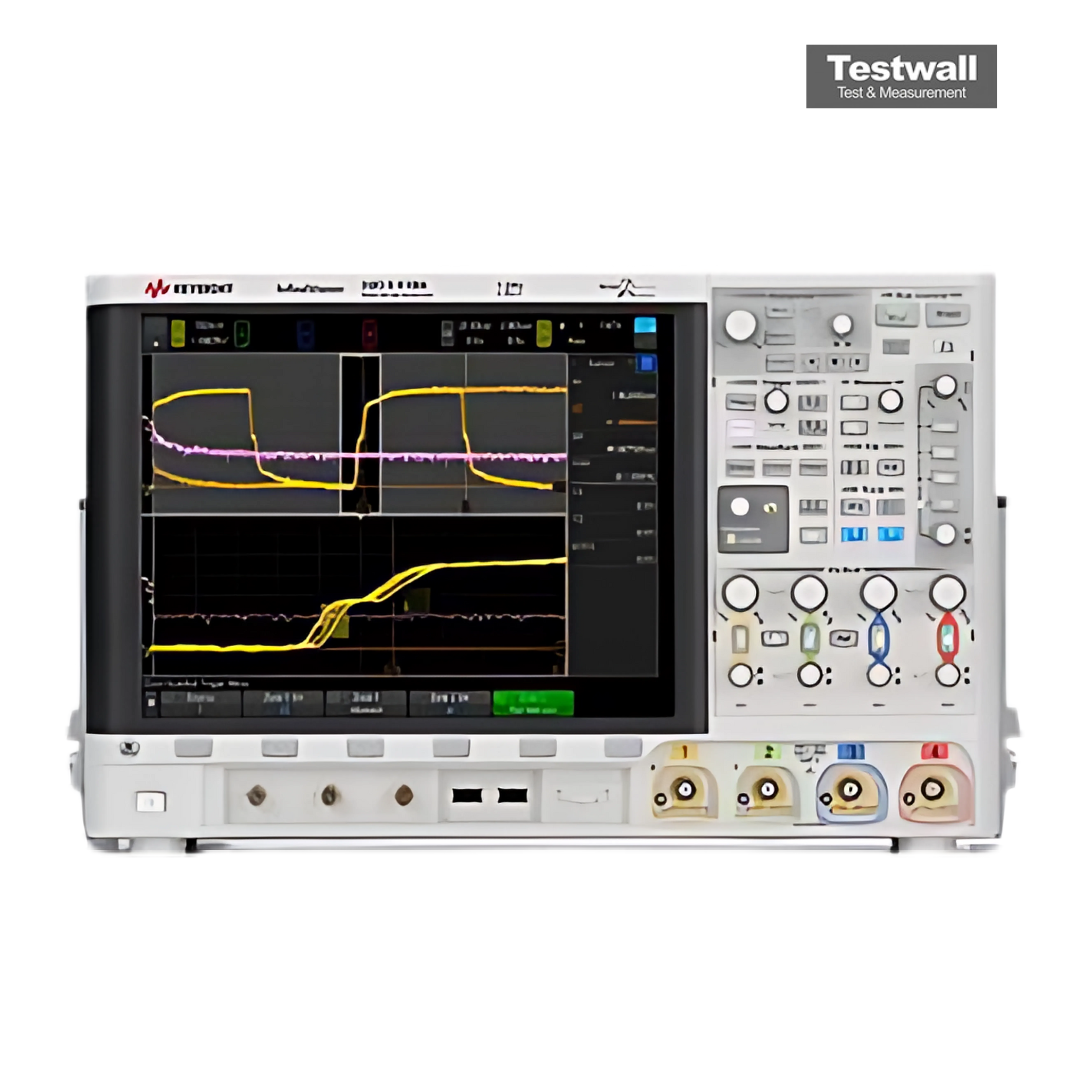

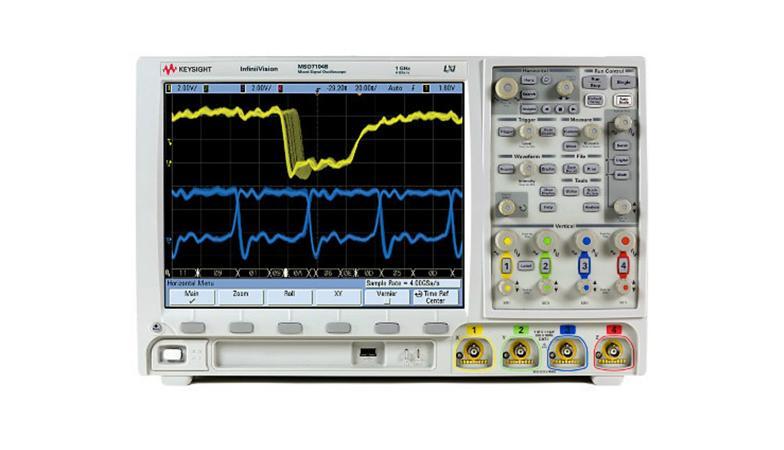

Keysight Technologies DSO7104B
1 GHz, 4 Analog Channel Oscilloscope
1 GHz Ancho de banda
4 canales analógicos Número de canales
4 GSa/s Tasa de muestreo máxima
8 Mpts (estándar), hasta 16 Mpts (opcional) Profundidad de memoria
8 bits Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 4 GSa/s |
| Profundidad de memoria | 8 Mpts (estándar), hasta 16 Mpts (opcional) |
| Resolución vertical | 8 bits |
| Tamaño de pantalla | 12,1 pulgadas XGA (1024 x 768 píxeles) |
| Rango de escala vertical | 1 mV/div a 5 V/div |
| Base de tiempo | 1 ns/div a 50 s/div |
| Tasa de captura de formas de onda | Hasta 100.000 formas de onda por segundo |
| Interfaz de conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight (Agilent) DSO7104B Options:
- DSO7104B - 002 - Alternative standard probe (N2873A instead of default 10073D)
- DSO7104B - SEC - Secure Environment Mode - Provides compliance with National Industrial Security Program Operating Manual (NISPOM) Chapter 8 requirements (factory-installed option only for new purchase)
- DSO7104B - A6J - ANSI Z540 compliant calibration
- DSO7104B - AMS - CAN/LIN automotive triggering and decode (factory-installed)
- DSO7104B - LSS - I2C/SPI serial decode option (factory-installed)
- DSO7104B - 232 - RS-232/UART triggering and decode (factory-installed)
- DSO7104B - SND - I2S Triggering and Decode (factory-installed)
- DSO7104B - FLX - FlexRay Measurements (factory-installed)
- DSO7104B - 553 - MIL-STD 1553 Triggering and Decode (factory-installed)
- DSO7104B - SGM - Segmented memory (factory-installed)
- DSO7104B - LMT - Mask limit testing (factory-installed)
- DSO7104B - N2737A - DSO to MSO upgrade for DSO710xB
- DSO7104B - N5424A - CAN/LIN automotive triggering and decode (user-installed)
- DSO7104B - N5423A - I2C/SPI serial decode option (user-installed)
- DSO7104B - N5457A - RS-232/UART triggering and decode (user-installed)
- DSO7104B - N5468A - I2S Triggering and Decode (user-installed)
- DSO7104B - N5432C - FlexRay Measurements (user-installed)
- DSO7104B - N5469A - MIL-STD 1553 Triggering and Decode (user-installed)
- DSO7104B - N5454A - Segmented memory (user-installed)
- DSO7104B - N5455A - Mask limit testing (user-installed)
- DSO7104B - N5406A - FPGA dynamic probe for Xilinx (MSO models only)
- DSO7104B - N5434A - FPGA dynamic probe for Altera (MSO models only)
- DSO7104B - B4610A - Offline viewing and analysis of MSO/DSO data on a PC
- DSO7104B - U1881A - Power measurement and analysis application
- DSO7104B - E2690B - ASA's Oscilloscope tools
| Model | DSO7104B |
|---|
El Keysight (Agilent) DSO7104B ofrece ancho de banda de 1 GHz, muestreo de 4 GSa/s y 4 canales analógicos en un diseño compacto de 6,5” con pantalla XGA de 12,1”. Tiene memoria MegaZoom III de 8 Mpts y muestra hasta 100.000 formas de onda/s.
Admite decodificación serial y navegación automática para protocolos como I2C, SPI, CAN, LIN y MIL-STD 1553. La memoria segmentada y las pruebas de máscara mejoran el análisis.
Testwall puede suministrar el Keysight (Agilent) DSO7104B usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con fiabilidad excepcional. Contáctenos para calibración o reparación del Keysight (Agilent) DSO7104B.
