Keysight (Agilent)

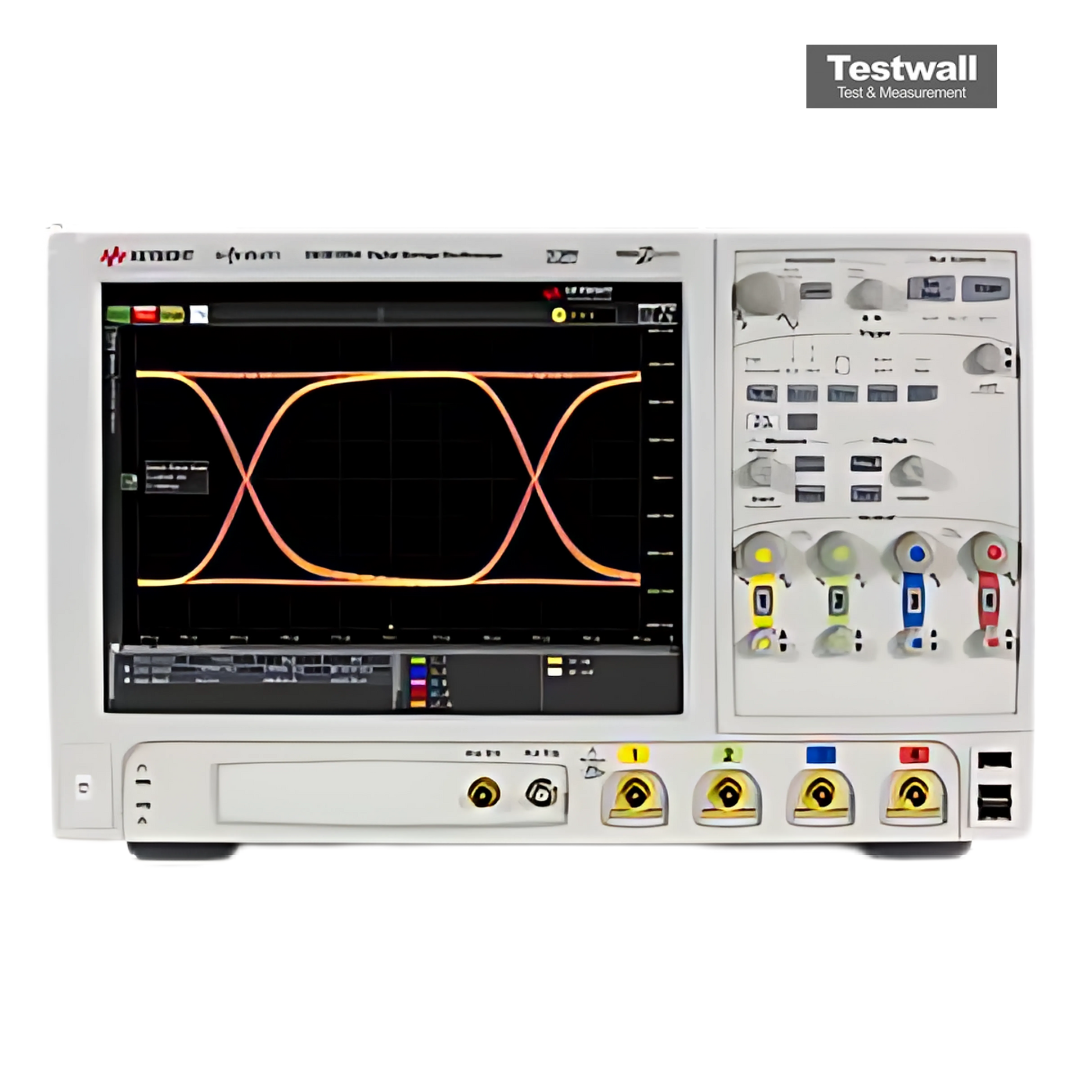

Keysight Technologies DSO81204B
4 Ch 12 GHz Digital Oscilloscope
12 GHz Ancho de banda
4 canales analógicos Número de canales
40 GSa/s Tasa de muestreo máxima
Hasta 2 Gpuntos (con opción de memoria extendida) Profundidad de memoria
8 bits (hasta 12 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 12 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 40 GSa/s |
| Profundidad de memoria | Hasta 2 Gpuntos (con opción de memoria extendida) |
| Resolución vertical | 8 bits (hasta 12 bits en modo de alta resolución) |
| Rango de escala vertical | 1 mV/div a 1 V/div |
| Base de tiempos | 20 ps/div a 20 s/div |
| Impedancia de entrada | 50 Ω o 1 MΩ |
| Pantalla | Pantalla táctil LCD de 15 pulgadas XGA |
| Interfaz y conectividad | LAN (LXI), USB, GPIB (opcional) |
Keysight Technologies DSO81204B Options:
- DSO81204B - 001 - 2-M (2 channels), 1-M (4 channels) memory upgrade; 64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)
- DSO81204B - 002 - EZJIT jitter analysis software (installed at the factory)
- DSO81204B - 003 - High-speed serial data analysis/mask testing with clock recovery and 8b/10b decoding (installed at the factory)
- DSO81204B - 004 - EZJIT Plus jitter analysis software (installed at the factory)
- DSO81204B - 005 - Noise reduction and bandwidth control option (installed at the factory)
- DSO81204B - 006 - My Infiniium integration package (installed at the factory)
- DSO81204B - 007 - Low-speed serial data analysis for I2C/SPI (installed at the factory)
- DSO81204B - 008 - Low-speed serial data analysis for CAN (installed at the factory)
- DSO81204B - 009 - InfiniiScan event identification software (installed at the factory)
- DSO81204B - 010 - Infiniium user defined function application software (installed at the factory)
- DSO81204B - 017 - ≥ 40 Gb removable hard disk drive; replaces internal hard disk with a removable hard disk
- DSO81204B - 1CM - Rack-mount kit (E2609B)
- DSO81204B - A6J - ANSI Z540-compliant calibration
- DSO81204B - N5420A - DSO81204B to DSO81304B upgrade (12 GHz to 13 GHz)
| Model | DSO81204B |
|---|
The Keysight (Agilent) DSO9204H is a 12 GHz real-time oscilloscope offering high-performance sampling, deep acquisition memory, and advanced triggering capabilities for demanding signal applications.
Engineered for detailed diagnostics in high-speed domains such as RF, telecom, and digital systems.
Testwall can supply the used Keysight (Agilent) DSO9204H, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO9204H.
