Keysight (Agilent)

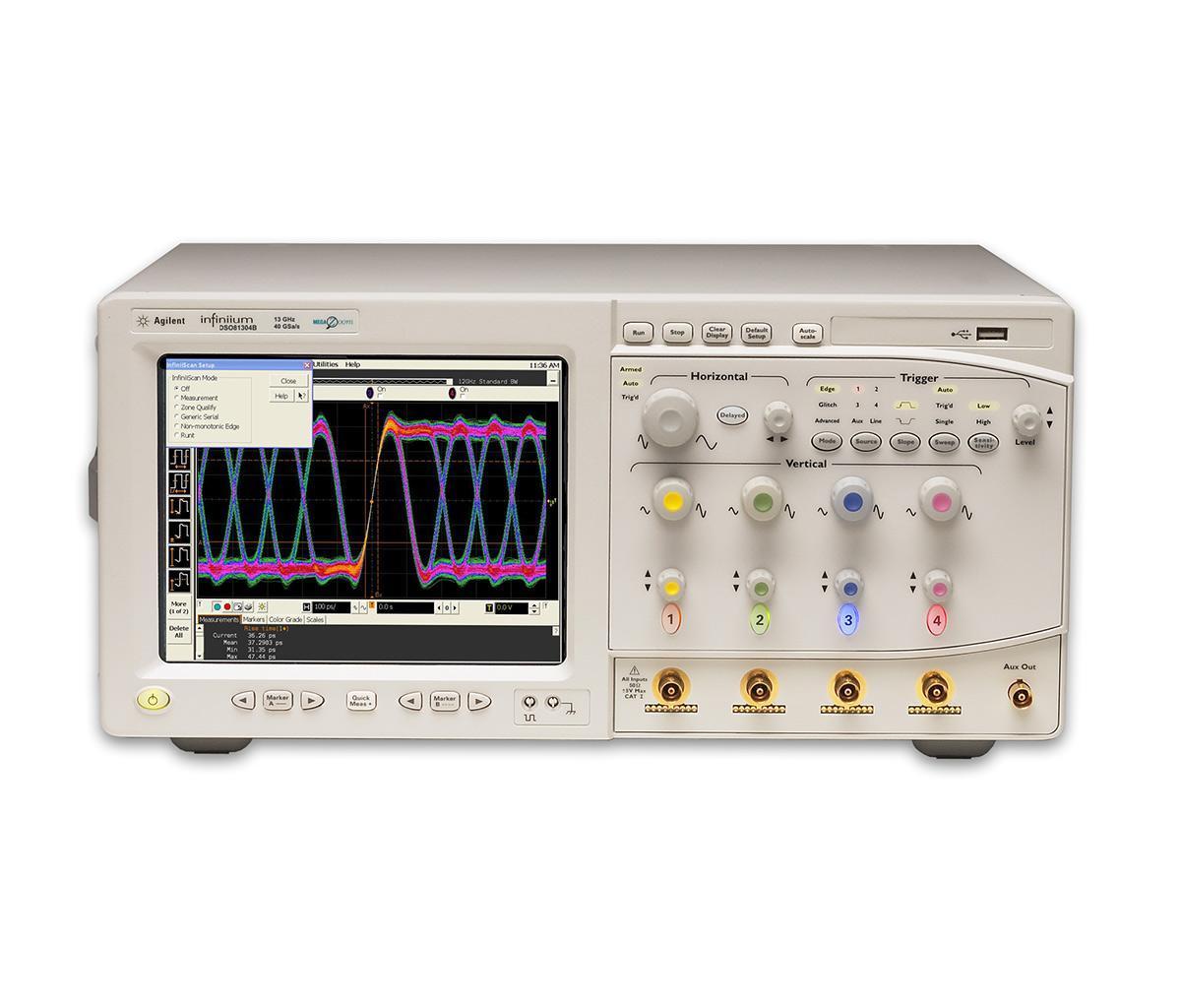

Keysight Technologies DSO81304B
4 Chn. 13GHz Oscilloscope
13 GHz Ancho de banda
4 canales analógicos Número de canales
40 GSa/s Tasa de muestreo máxima
Hasta 1 Gpunto por canal Profundidad de memoria
8 bits Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 13 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 40 GSa/s |
| Profundidad de memoria | Hasta 1 Gpunto por canal |
| Resolución vertical | 8 bits |
| Rango de escala vertical | 1 mV/div a 1 V/div |
| Base de tiempos | 5 ps/div a 20 s/div |
| Impedancia de entrada | 50 Ω / 1 MΩ |
| Pantalla | Pantalla táctil LCD de 15 pulgadas XGA |
| Interfaz de comunicación | LAN (LXI), USB, GPIB |
Keysight Technologies DSO81304B Options:
- DSO81304B - 001 - 2-M (2 channels), 1-M (4 channels) memory upgrade; 64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)
- DSO81304B - 002 - EZJIT jitter analysis software (installed at the factory)
- DSO81304B - 003 - High-speed serial data analysis/mask testing with clock recovery and 8b/10b decoding (installed at the factory)
- DSO81304B - 004 - EZJIT Plus jitter analysis software (installed at the factory)
- DSO81304B - 005 - Noise reduction and bandwidth control option (installed at the factory); Included standard for DSO81304B
- DSO81304B - 006 - My Infiniium integration package (installed at the factory)
- DSO81304B - 007 - Low-speed serial data analysis for I2C/SPI (installed at the factory)
- DSO81304B - 008 - Low-speed serial data analysis for CAN (installed at the factory)
- DSO81304B - 009 - InfiniiScan event identification software (installed at the factory)
- DSO81304B - 010 - Infiniium user defined function application software (installed at the factory)
- DSO81304B - 017 - ≥ 40 Gb removable hard disk drive; replaces internal hard disk with a removable hard disk
- DSO81304B - 1CM - Rack-mount kit (E2609B)
- DSO81304B - A6J - ANSI Z540-compliant calibration
| Model | DSO81304B |
|---|
The Keysight (Agilent) DSO81304B offers 13 GHz bandwidth, 4 channels, up to 40 GSa/s sampling, and memory from 512 kpts to 64 Mpts with XGA display.
Supports jitter and compliance testing, MatLab linking, and advanced InfiniiMax II probing with the industry's lowest noise and trigger jitter.

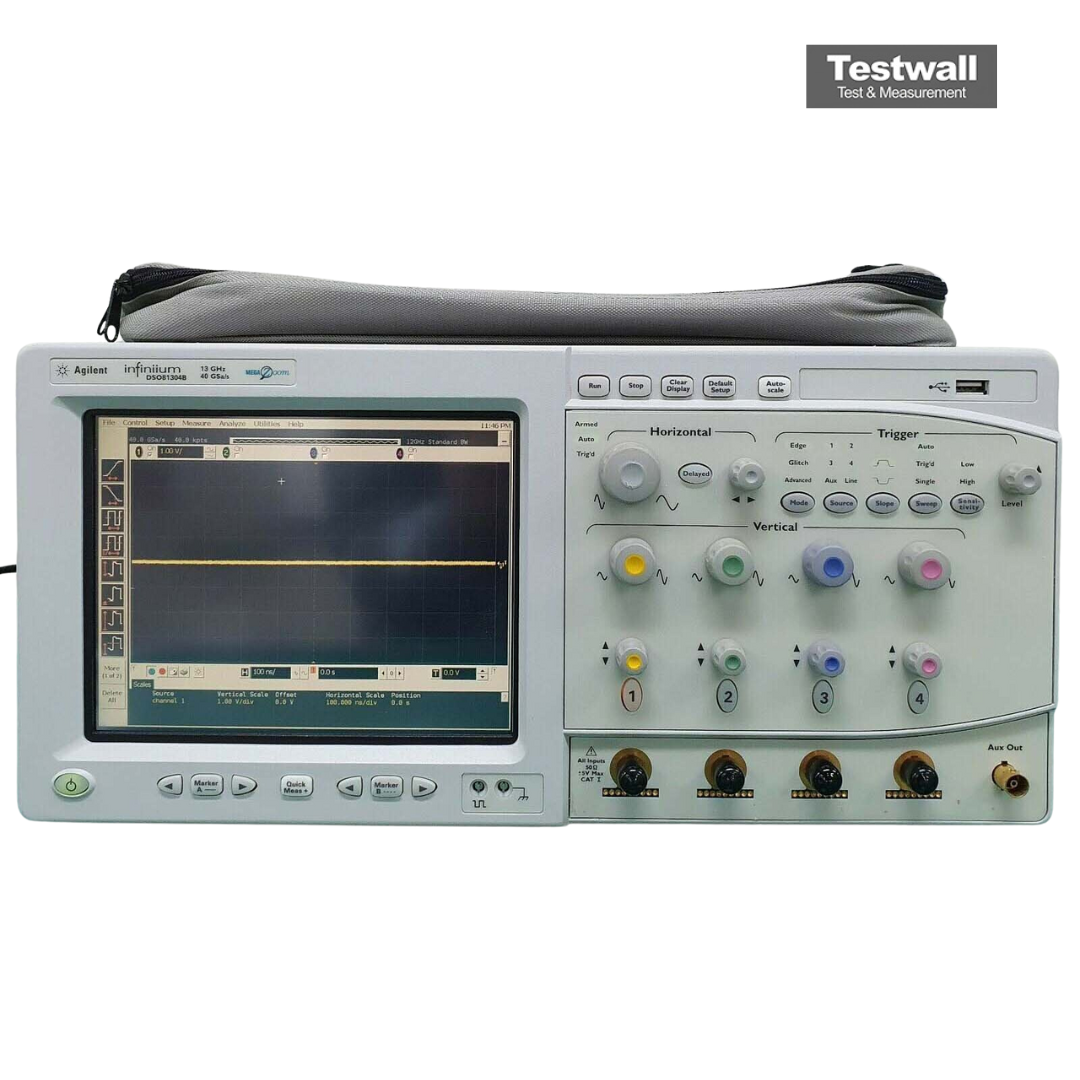

Testwall puede suministrar the used Keysight (Agilent) DSO81304B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Contáctenos directly if you need calibration or repair of the Keysight (Agilent) DSO81304B.
