Keysight (Agilent)

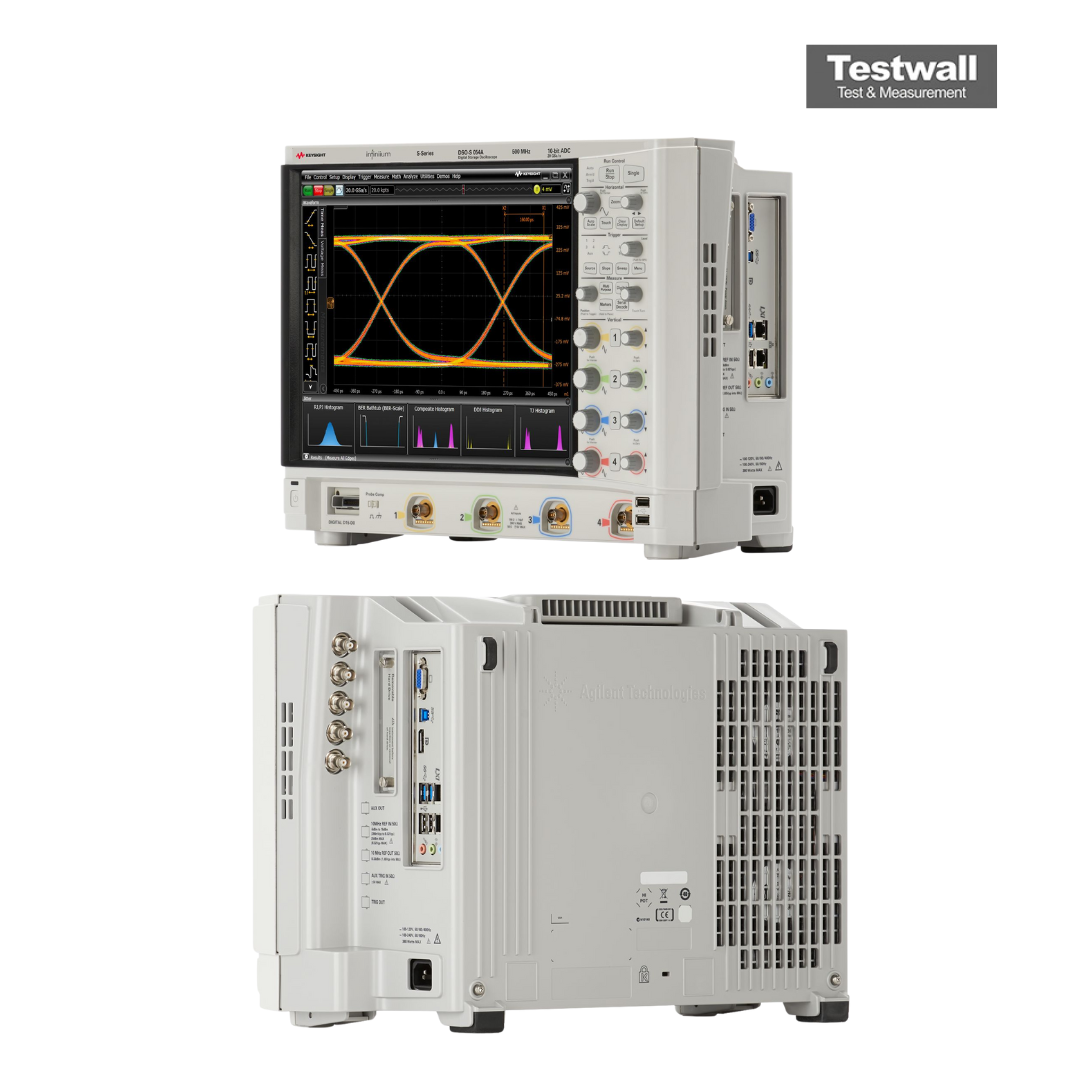

Keysight Technologies DSOS054A
4 Ch 500 MHz Digital Sampling Oscilloscope
500 MHz Ancho de banda
4 canales analógicos Número de canales
20 GSa/s (entrelazado), 10 GSa/s por canal Frecuencia de muestreo
500 Mpuntos (entrelazado), 250 Mpuntos por canal Profundidad de memoria
8 bits (hasta 10 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 500 MHz |
| Número de canales | 4 canales analógicos |
| Frecuencia de muestreo | 20 GSa/s (entrelazado), 10 GSa/s por canal |
| Profundidad de memoria | 500 Mpuntos (entrelazado), 250 Mpuntos por canal |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Pantalla | Pantalla táctil capacitiva de 12,1 pulgadas WXGA (1280 x 800) |
| Rango de escala vertical | 1 mV/div a 10 V/div |
| Base de tiempos | 200 ps/div a 20 s/div |
| Impedancia de entrada | 50 Ω o 1 MΩ (seleccionable) |
| Conectividad | USB, LAN (LXI), GPIB (opcional), salida de pantalla DisplayPort |
Keysight Technologies DSOS054A Options:
- DSOS054A - DSOS000-100 - Increase acquisition memory to 100 Mpts x 4 channels, 200 Mpts x 2 channels
- DSOS054A - DSOS000-200 - Increase acquisition memory to 200 Mpts x 4 channels, 400 Mpts x 2 channels
- DSOS054A - DSOS000-400 - Increase acquisition memory to 400 Mpts x 4 channels, 800 Mpts x 2 channels
- DSOS054A - DSOS8GBW - Upgrade to 8 GHz bandwidth
- DSOS054A - DSOS6GBW - Upgrade to 6 GHz bandwidth
- DSOS054A - DSOS4GBW - Upgrade to 4 GHz bandwidth
- DSOS054A - DSO2G5BW - Upgrade to 2.5 GHz bandwidth
- DSOS054A - DSOS2GBW - Upgrade to 2 GHz bandwidth
- DSOS054A - DSOS1GBW - Upgrade to 1 GHz bandwidth
- DSOS054A - DSOS000-A6J - ANSI Z540 compliant calibration
| Model | DSOS054A |
|---|
The Keysight DSOS054A is a 500 MHz oscilloscope with 4 channels, 20 GSa/s (2 ch), 800 Mpts memory (2 ch), and 10-bit ADC for high fidelity.
Offers 860 ps rise time, ENOB >8, touch display, advanced probing support, and fast I/O with USB 3.0 and Ethernet up to 200 MB/s.
Testwall puede suministrar the used Keysight Technologies DSOS054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Contáctenos directly if you need calibration or repair of the Keysight Technologies DSOS054A.
