Keysight (Agilent)

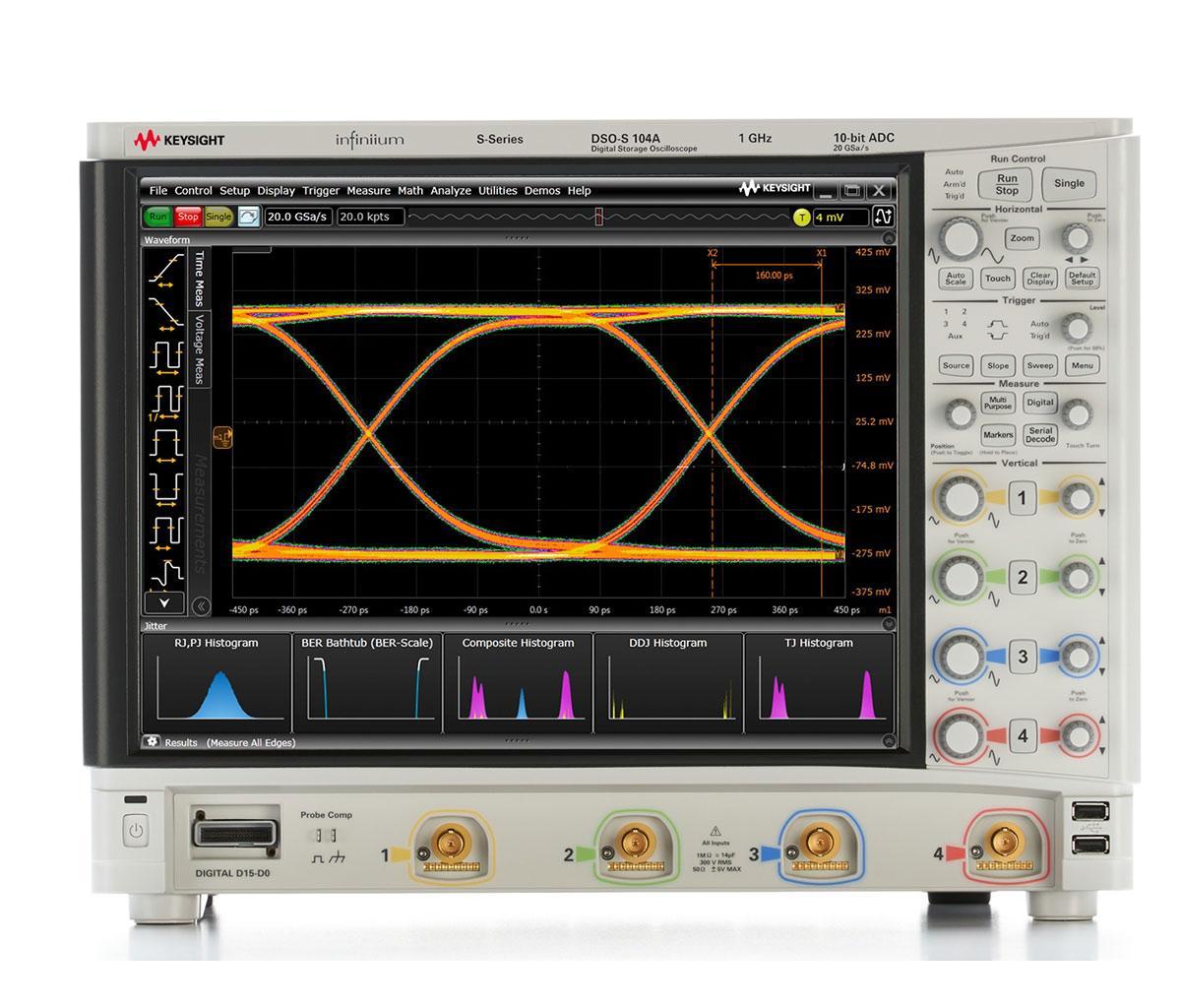

Keysight Technologies DSOS104A
Oscilloscope - Infiniium S Series 1 GHz 4 channel
1 GHz Ancho de banda
4 canales analógicos Número de canales
20 GSa/s Tasa de muestreo máxima
100 Mpts por canal Profundidad de memoria
8 bits (hasta 10 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 20 GSa/s |
| Profundidad de memoria | 100 Mpts por canal |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Pantalla | Pantalla táctil capacitiva de 12,1 pulgadas |
| Rango de entrada de tensión | 1 mV/div a 10 V/div |
| Ancho de banda del sistema de disparo | 1 GHz |
| Interfaz y conectividad | USB, LAN (LXI), GPIB (opcional) |
| Sistema operativo | Windows 10 integrado |
Keysight Technologies DSOS104A Options:
- DSOS104A - DSOS000-200 - Memory upgrade: 200 Mpts x 4 channels, 400 Mpts x 2 channels (factory-installed)
- DSOS104A - DSOS000-400 - Memory upgrade: 400 Mpts x 4 channels, 800 Mpts x 2 channels (factory-installed)
- DSOS104A - DSOS000-821 - Precision BNC (M) to SMA (F) adapters (qty 2)
- DSOS104A - DSOS000-1A7 - 170225 compliant calibration
- DSOS104A - DSOS000-AMG - 17025 compliant calibration with accreditation
- DSOS104A - DSOS000-A6J - ANSI Z540 compliant calibration
- DSOS104A - DSOS8GBW - Bandwidth upgrade to 8 GHz
- DSOS104A - DSOS6GBW - Bandwidth upgrade to 6 GHz
- DSOS104A - DSOS4GBW - Bandwidth upgrade to 4 GHz
- DSOS104A - DSOS2G5BW - Bandwidth upgrade to 2.5 GHz
- DSOS104A - DSOS2GBW - Bandwidth upgrade to 2 GHz
- DSOS104A - N2113A-100 - Memory upgrade: 50 Mpts/100 Mpts to 100 Mpts/200 Mpts (post-sale)
- DSOS104A - N2113A-200 - Memory upgrade: 100 Mpts/200 Mpts to 200 Mpts/400 Mpts (post-sale)
- DSOS104A - N2113A-400 - Memory upgrade: 200 Mpts/400 Mpts to 400 Mpts/800 Mpts (post-sale)
- DSOS104A - N2901E - MSO upgrade kit (upgrades DSO to MSO in less than 1 minute)
- DSOS104A - N2902B - S-Series rackmount kit (8U high)
- DSOS104A - N2746S - Additional SSD with Windows 7
- DSOS104A - N4865A - GPIB to LAN adapter
- DSOS104A - DSOS000-DSA - DSA bundle with EZJIT Complete and SDA (new purchase only)
| Model | DSOS104A |
|---|
The Keysight DSOS104A is a 1 GHz oscilloscope with 4 analog channels, 10-bit ADC, and 20 GSa/s sample rate, with 100 Mpts memory/channel.
Includes ENOB of 8.1 bits, multi-touch 15” screen, SSD, and bundled analysis and protocol software for compliance testing.
Testwall puede suministrar the used Keysight Technologies DSOS104A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Contáctenos directly if you need calibration or repair of the Keysight Technologies DSOS104A.
