Keysight (Agilent)

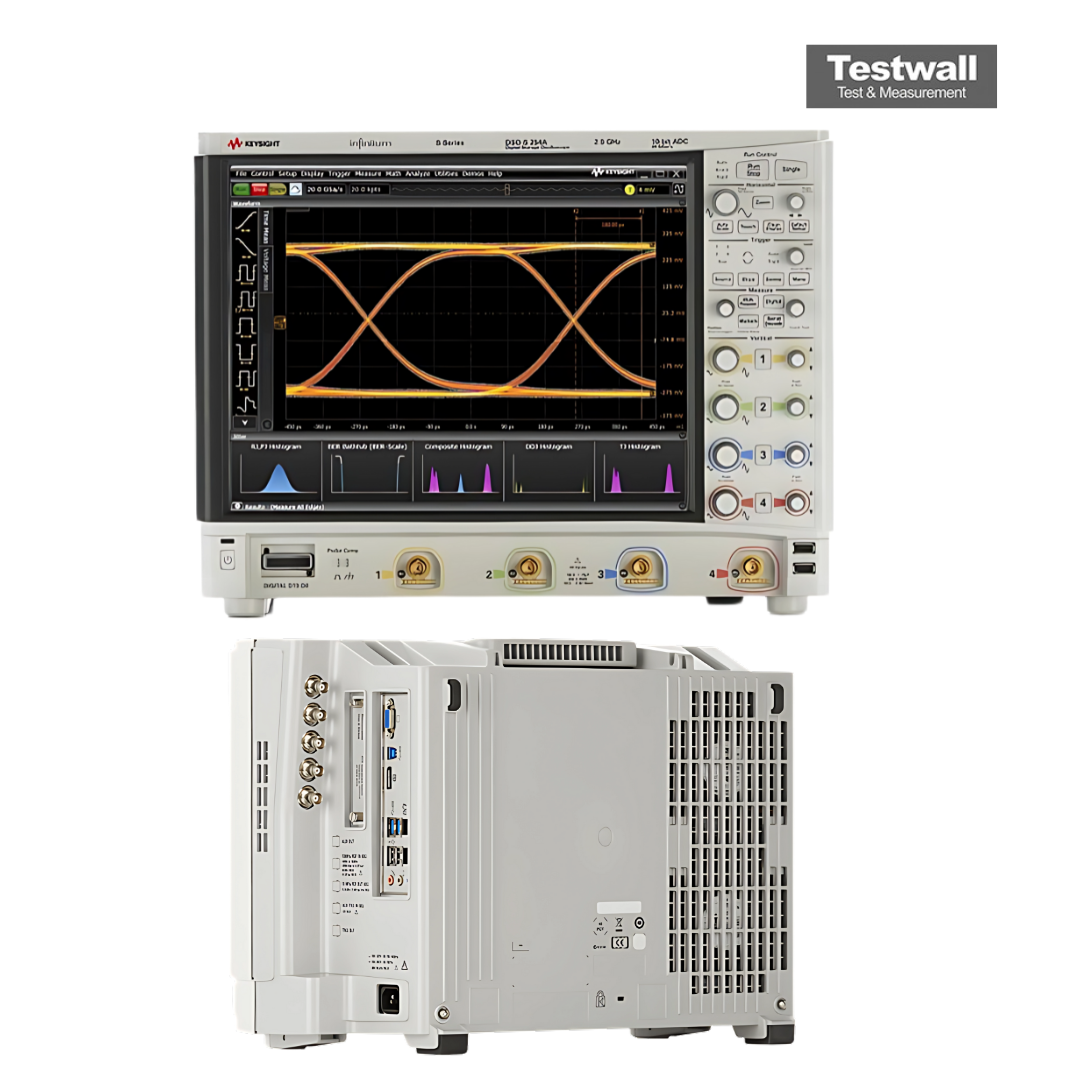

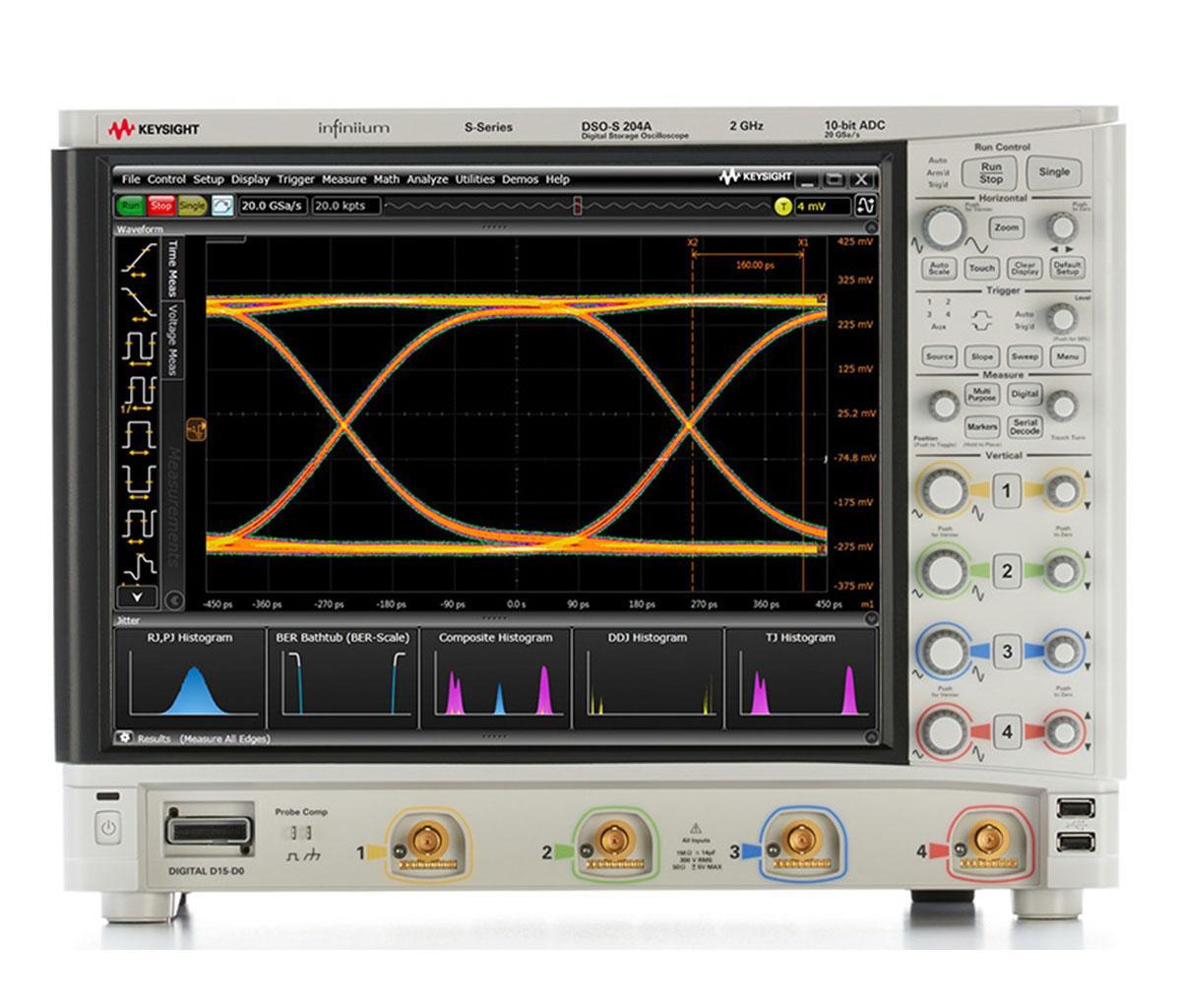

Keysight Technologies DSOS204A
4 Ch 2GHz Oscilloscope - Infiniium S Series
2 GHz Ancho de banda
4 canales analógicos Número de canales
16 GSa/s Tasa de muestreo máxima
800 Mpts (estándar), hasta 2 Gpts (opcional) Profundidad de memoria
8 bits (hasta 10 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 2 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 16 GSa/s |
| Profundidad de memoria | 800 Mpts (estándar), hasta 2 Gpts (opcional) |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Tamaño de pantalla | 15,6 pulgadas (pantalla táctil capacitiva) |
| Sensibilidad vertical | 1 mV/div a 1 V/div |
| Rango de base de tiempos | 5 ps/div a 20 s/div |
| Impedancia de entrada | 50 Ω o 1 MΩ |
| Conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight Technologies DSOS204A Options:
- DSOS204A - DSOS000-100 - Increase acquisition memory to 100 Mpts x 4 channels, 200 Mpts x 2 channels
- DSOS204A - DSOS000-200 - Increase acquisition memory to 200 Mpts x 4 channels, 400 Mpts x 2 channels
- DSOS204A - DSOS000-400 - Increase acquisition memory to 400 Mpts x 4 channels, 800 Mpts x 2 channels
- DSOS204A - DSOS8GBW - Upgrade to 8 GHz bandwidth
- DSOS204A - DSOS6GBW - Upgrade to 6 GHz bandwidth
- DSOS204A - DSOS4GBW - Upgrade to 4 GHz bandwidth
- DSOS204A - DSO2G5BW - Upgrade to 2.5 GHz bandwidth
- DSOS204A - DSOS1GBW - Upgrade to 1 GHz bandwidth
- DSOS204A - DSOS000-1A7 - 170225 compliant calibration
- DSOS204A - DSOS000-AMG - 17025 compliant calibration with accreditation
- DSOS204A - DSOS000-A6J - ANSI Z540 compliant calibration
- DSOS204A - N2902B - S-Series rackmount kit (8U high)
- DSOS204A - N2746S - Additional SSD with Windows 7
- DSOS204A - N4865A - GPIB to LAN adapter
| Model | DSOS204A |
|---|
The Keysight DSOS204A is a 2 GHz oscilloscope with 4 analog channels, 20 GSa/s sample rate, and 100 Mpts/channel standard memory.
Features include 10-bit ADC, 8.1 ENOB, 15” touch screen, and advanced compliance and protocol software options.
Testwall puede suministrar the used Keysight Technologies DSOS204A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Contáctenos directly if you need calibration or repair of the Keysight Technologies DSOS204A.
