Keysight (Agilent)

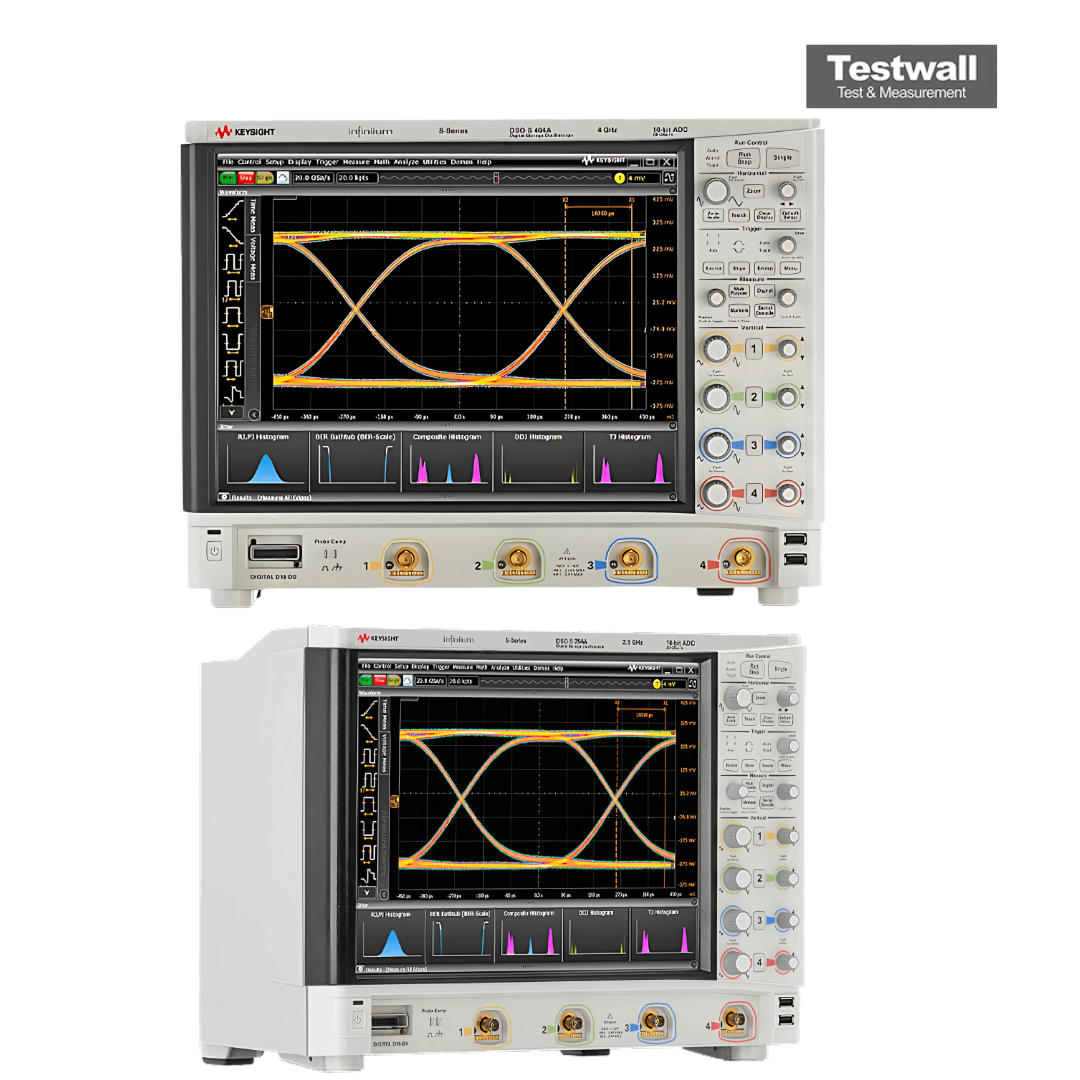

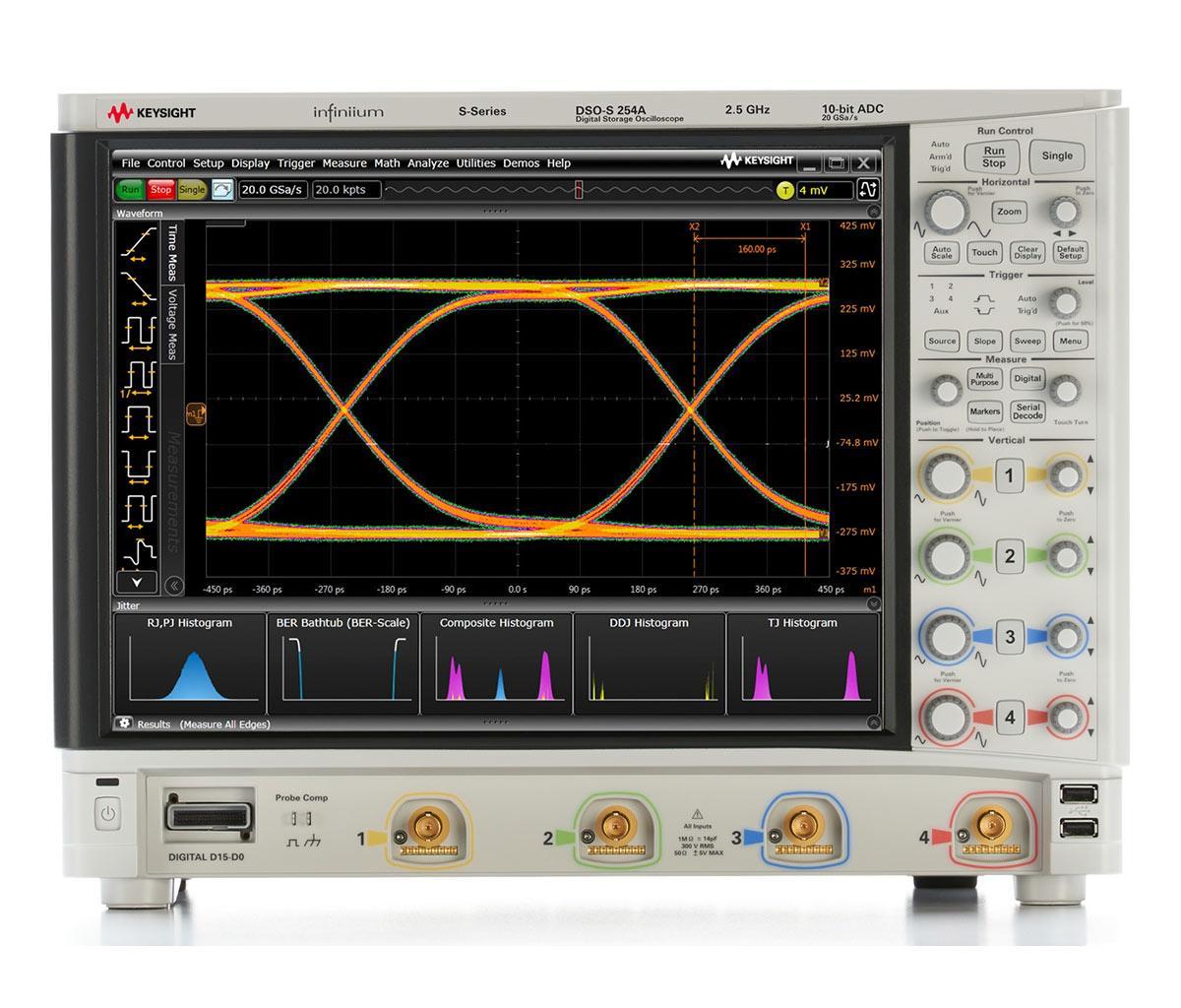

Keysight Technologies DSOS254A
4 Ch 2.5GHz Oscilloscope - Infiniium S Series
2,5 GHz Ancho de banda
4 canales analógicos Número de canales
20 GSa/s Frecuencia de muestreo
100 Mpts por canal Memoria de adquisición
10 bits Profundidad de bits del ADC
| Atributo | Valor |
|---|---|
| Ancho de banda | 2,5 GHz |
| Número de canales | 4 canales analógicos |
| Frecuencia de muestreo | 20 GSa/s |
| Memoria de adquisición | 100 Mpts por canal |
| Profundidad de bits del ADC | 10 bits |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Pantalla | Pantalla táctil capacitiva de 12,1 pulgadas |
| Rango de escala vertical | 1 mV/div a 10 V/div |
| Ancho de banda del sistema de trigger | 2,5 GHz |
| Interfaz de conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight Technologies DSOS254A Options:
- DSOS254A - DSOS000-200 - Memory upgrade: 200 Mpts x 4 channels, 400 Mpts x 2 channels (factory-installed)
- DSOS254A - DSOS000-400 - Memory upgrade: 400 Mpts x 2 channels (factory-installed, single/run mode)
- DSOS254A - DSOS000-821 - Precision BNC (M) to SMA (F) adapters (qty 2)
- DSOS254A - DSOS000-1A7 - 17025 compliant calibration
- DSOS254A - DSOS000-AMG - 17025 compliant calibration with accreditation
- DSOS254A - DSOS000-A6J - ANSI Z540 compliant calibration
- DSOS254A - DSOS1GBW - Upgrade to 1 GHz bandwidth
- DSOS254A - DSOS2GBW - Upgrade to 2 GHz bandwidth
- DSOS254A - DSOS2G5BW - Upgrade to 2.5 GHz bandwidth
- DSOS254A - DSOS4GBW - Upgrade to 4 GHz bandwidth
- DSOS254A - DSOS6GBW - Upgrade to 6 GHz bandwidth
- DSOS254A - DSOS8GBW - Upgrade to 8 GHz bandwidth
- DSOS254A - N2113A-100 - Memory upgrade: 50 Mpts/100 Mpts to 100 Mpts/200 Mpts (post-sale)
- DSOS254A - N2113A-200 - Memory upgrade: 100 Mpts/200 Mpts to 200 Mpts/400 Mpts (post-sale)
- DSOS254A - N2113A-400 - Memory upgrade: 200 Mpts/400 Mpts to 400 Mpts/800 Mpts (post-sale)
- DSOS254A - N2901E - MSO upgrade kit (upgrades DSO to MSO in less than 1 minute)
- DSOS254A - N2902B - S-Series rackmount kit (8U high)
- DSOS254A - N2746S - Additional SSD with Windows 7
- DSOS254A - N4865A - GPIB to LAN adapter
| Model | DSOS254A |
|---|
El Keysight (Agilent) DSOS254A es un osciloscopio de 2,5 GHz, 4 canales, ADC de 10 bits, 20 GSa/s y memoria de 100 Mpts/canal. Soporta hasta 16 bits de resolución vertical, ENOB de 8,1.
Pantalla táctil de 15”, software y accesorios incluidos.
Testwall puede suministrar el Keysight (Agilent) DSOS254A usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza fiabilidad. Contáctenos para calibración o reparación del Keysight (Agilent) DSOS254A.
