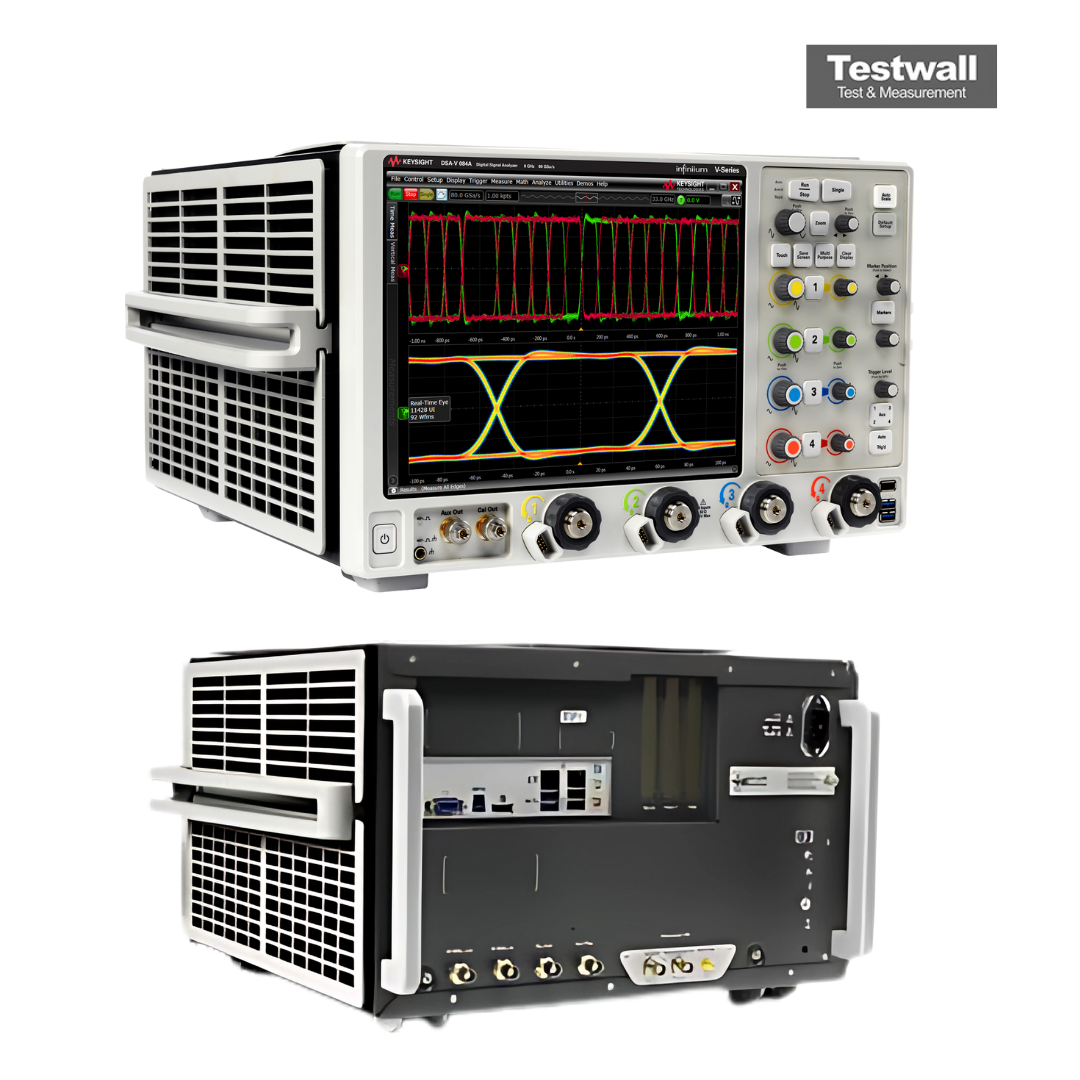

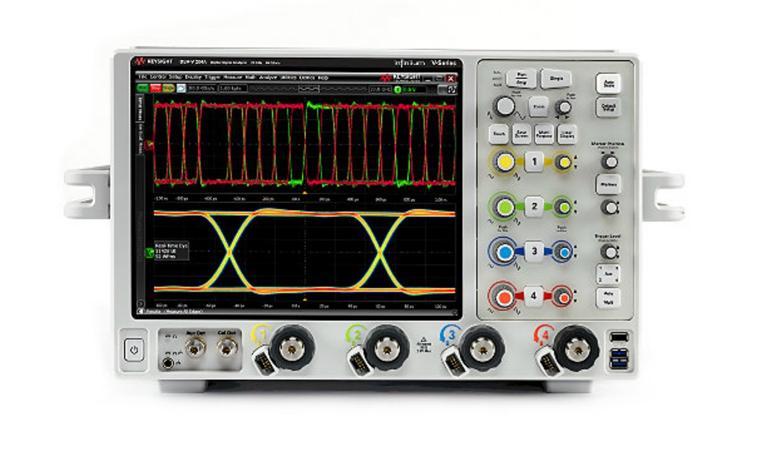

Keysight Technologies DSOV084A
High Performance Oscilloscope: 8 GHz, 4 Analog Channels
8 GHz Ancho de banda
4 canales analógicos Número de canales
20 GSa/s Tasa de muestreo máxima
2 Gpuntos (estándar) Profundidad de memoria
8 bits (hasta 10 bits en modo de alta resolución) Resolución vertical
| Atributo | Valor |
|---|---|
| Ancho de banda | 8 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 20 GSa/s |
| Profundidad de memoria | 2 Gpuntos (estándar) |
| Resolución vertical | 8 bits (hasta 10 bits en modo de alta resolución) |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas |
| Sistema operativo | Windows 10 |
| Rango de escala vertical | 1 mV/div a 1 V/div |
| Impedancia de entrada | 50 Ω o 1 MΩ |
| Conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight (Agilent) DSOV084A Options:
- DSOV084A - DSOV000-100 - 100 Mpts/channel memory upgrade
- DSOV084A - DSOV000-200 - 200 Mpts/channel memory upgrade
- DSOV084A - DSOV000-500 - 500 Mpts/channel memory upgrade
- DSOV084A - DSOV000-01G - 1 Gpts/channel memory upgrade
- DSOV084A - DSOV000-02G - 2 Gpts/channel memory upgrade
- DSOV084A - DSOV000-810 - Hardware serial trigger
- DSOV084A - DSOV000-801 - 1 TB removable Solid State Drive (SSD) with Windows 7
- DSOV084A - DSOV000-805 - GPIB card-interface
- DSOV084A - DSOV000-808 - Performance verification and deskew fixture
- DSOV084A - DSOV000-A6J - ANSI Z540 compliant calibration
- DSOV084A - DSOV000-AMG - Calibration + uncertainties + guardbanding (accredited)
- DSOV084A - DSOV13GBW - Bandwidth upgrade to 13 GHz
- DSOV084A - DSOV16GBW - Bandwidth upgrade to 16 GHz
- DSOV084A - DSOV20GBWU - Bandwidth upgrade to 20 GHz
- DSOV084A - DSOV25GBWU - Bandwidth upgrade to 25 GHz
- DSOV084A - DSOV33GBWU - Bandwidth upgrade to 33 GHz
- DSOV084A - N2810A-100 - 50 Mpts/channel to 100 Mpts/channel memory upgrade
- DSOV084A - N2810A-200 - 100 Mpts/channel to 200 Mpts/channel memory upgrade
- DSOV084A - N2810A-500 - 200 Mpts/channel to 500 Mpts/channel memory upgrade
- DSOV084A - N2810A-01G - 500 Mpts/channel to 1 Gpts/channel memory upgrade
- DSOV084A - N2810A-02G - 1 Gpts/channel to 2 Gpts/channel memory upgrade
- DSOV084A - N2119AU - Hardware serial trigger upgrade
- DSOV084A - N2118AU - MSO upgrade (additional 16 digital channels)
- DSOV084A - N2110A-500 - Additional 500 GB removable Solid State Drive (SSD) with Windows 7
- DSOV084A - N2110A-01T - Additional 1 TB removable Solid State Drive (SSD) with Windows 7
- DSOV084A - 82351B - GPIB card-interface
- DSOV084A - N2117A - Stack mount kit option for stacking two frames
- DSOV084A - N5470A - Rack mount kit
| Model | DSOV084A |
|---|
El osciloscopio Keysight (Agilent) DSOV084A Infiniium V-Series proporciona 8 GHz de ancho de banda analógico, 4 canales analógicos y hasta 80 GSa/s con 2 Gpts de memoria de adquisición. La tecnología InP asegura bajo ruido (1,04 mVrms a 50 mV/div), jitter bajo (100 fs) y excelente precisión (ENOB > 5,5, SFDR > 50 dBC).
Perfecto para análisis de señales digitales rápidas, RF de banda ancha y fenómenos transitorios, incluye PrecisionProbe y herramientas de análisis de jitter/disparo.
Testwall puede suministrar el Keysight (Agilent) DSOV084A usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentos fiables y de alto rendimiento. Contáctenos para calibración o reparación del Keysight (Agilent) DSOV084A.
