Keysight (Agilent)

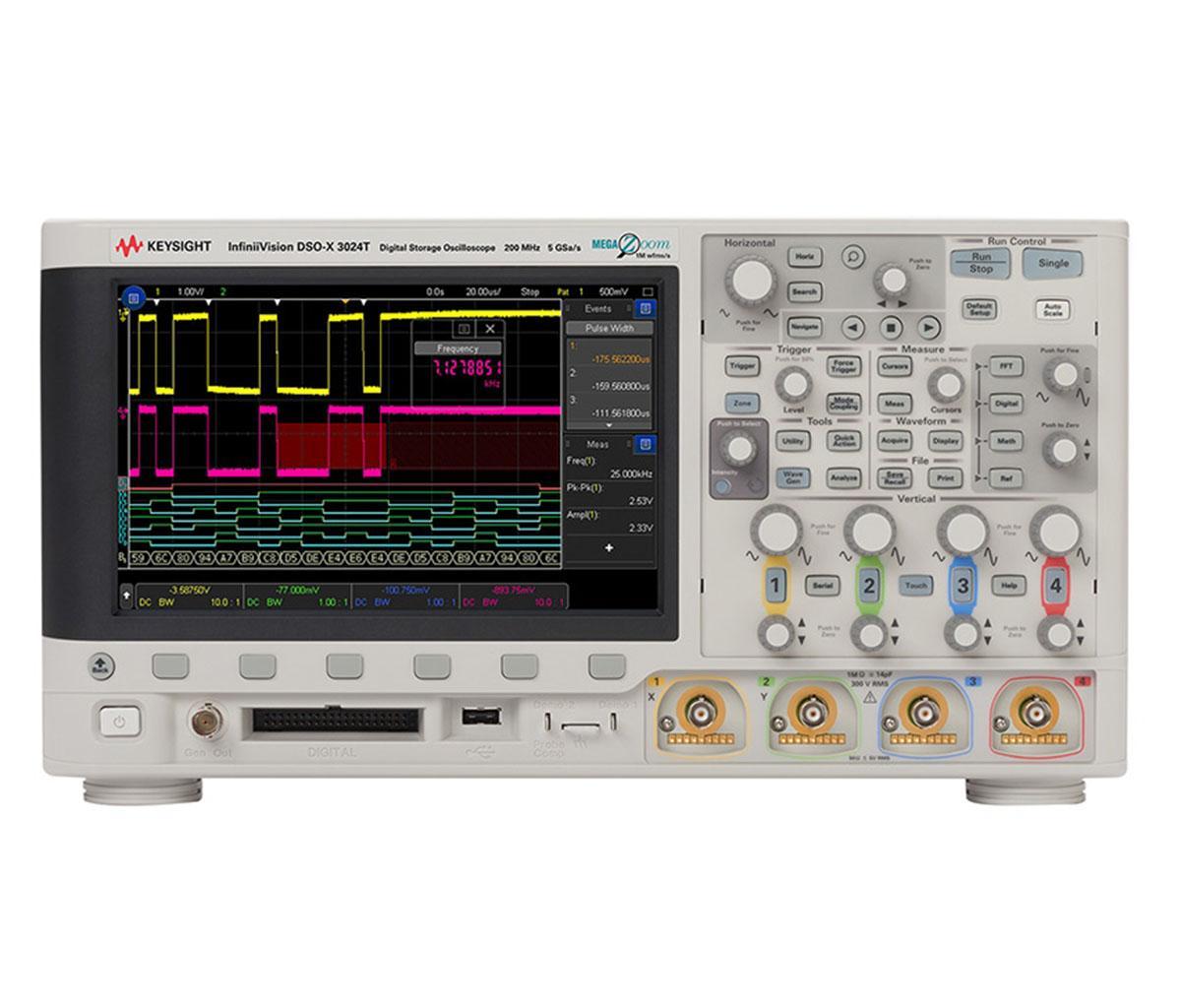

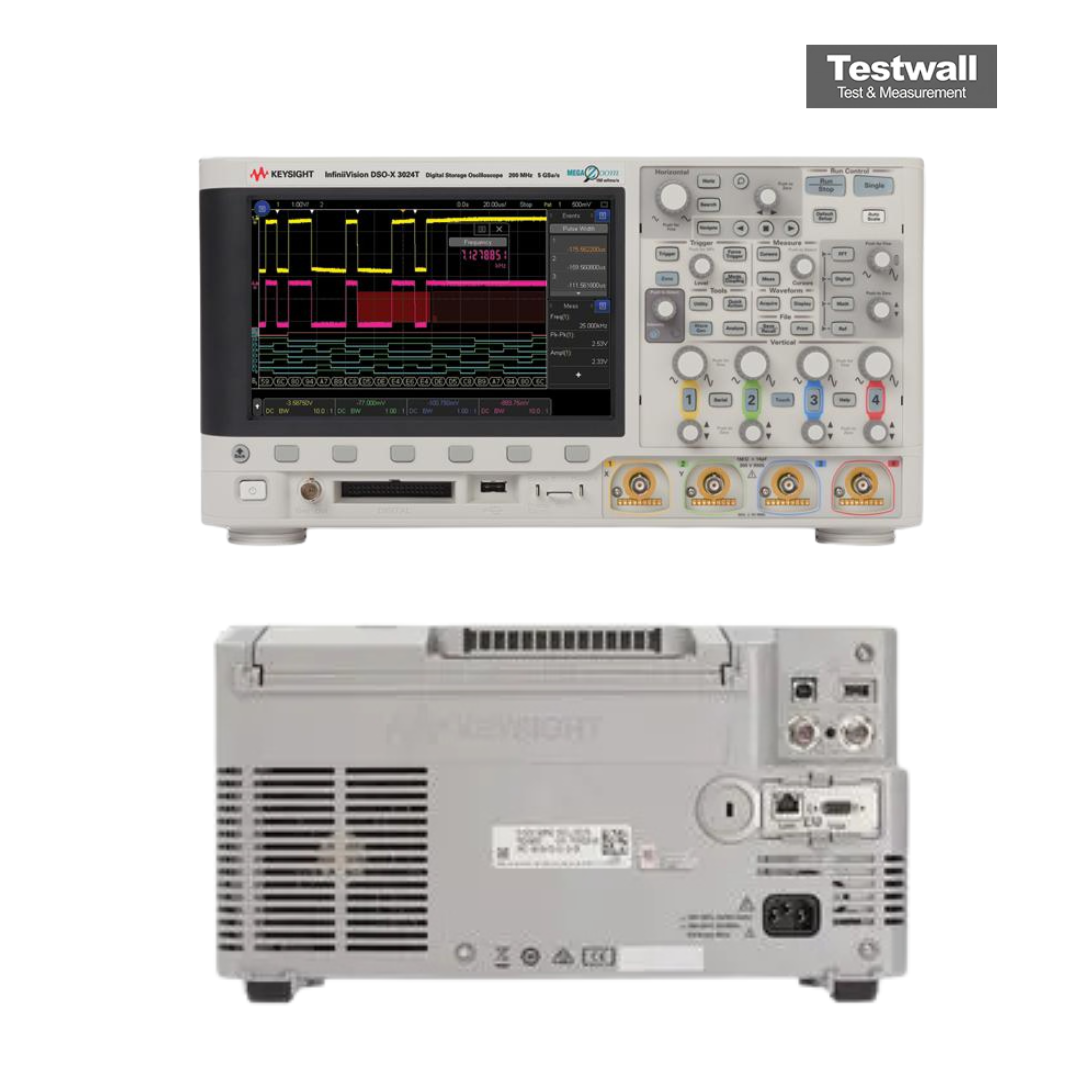

Keysight Technologies DSOX3024T
4 Ch 200 MHz Oscilloscope
4 canales analógicos Número de canales
200 MHz Ancho de banda
5 GSa/s (en todos los canales) Frecuencia de muestreo
4 Mpts estándar (hasta 8 Mpts con opción de memoria) Profundidad de memoria
8,5 pulgadas WVGA (800 x 480 píxeles) Tamaño de pantalla
| Atributo | Valor |
|---|---|
| Número de canales | 4 canales analógicos |
| Ancho de banda | 200 MHz |
| Frecuencia de muestreo | 5 GSa/s (en todos los canales) |
| Profundidad de memoria | 4 Mpts estándar (hasta 8 Mpts con opción de memoria) |
| Tamaño de pantalla | 8,5 pulgadas WVGA (800 x 480 píxeles) |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Resolución vertical | 8 bits |
| Rango de escala de tiempo | 1 ns/div a 50 s/div |
| Canales digitales (opción) | 16 canales digitales (con sonda lógica opcional MSO) |
| Conectividad | USB, LAN (LXI), salida de pantalla (SVGA) |
Keysight Technologies DSOX3024T Options:
- DSOX3024T - DSOXT3MSO - MSO upgrade: Add 16 digital timing channels
- DSOX3024T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX3024T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX3024T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- DSOX3024T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD (CAN-FD ISO)/CAN-dbc/LIN/LIN symbolic)
- DSOX3024T - DSOXT3CXPI - CXPI serial triggering and analysis
- DSOX3024T - DSOX3FLEX - FlexRay serial triggering and analysis
- DSOX3024T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- DSOX3024T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- DSOX3024T - DSOXT3UPD - USB-PD serial triggering and analysis
- DSOX3024T - DSOXT3NRZ - User-definable Manchester/NRZ serial triggering and decode
- DSOX3024T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- DSOX3024T - DSOX3PWR - Power analysis application
- DSOX3024T - DSOXT3FRA - Frequency Response Analysis (FRA)
- DSOX3024T - DSOXT3NFC - Near field communication testing
- DSOX3024T - DSOX3MASK - Mask limit testing
- DSOX3024T - DSOX3VID - Enhanced video/TV application package
- DSOX3024T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3NFC, DSOXT3CXPI, DSOXT3NRZ, DSOXT3FRA)
- DSOX3024T - DSOXT3B1T22 - License only 100 to 200 MHz upgrade, 2 ch
- DSOX3024T - DSOXT3B1T24 - License only 100 to 200 MHz upgrade, 4 ch
- DSOX3024T - DSOXT3B3T52 - License only 350 to 500 MHz upgrade, 2 ch
- DSOX3024T - DSOXT3B3T54 - License only 350 to 500 MHz upgrade, 4 ch
- DSOX3024T - DSOXT3B1T32U - Service center 100 to 350 MHz upgrade, 2 ch
- DSOX3024T - DSOXT3B1T52U - Service center 100 to 500 MHz upgrade, 2 ch
- DSOX3024T - DSOXT3B1T102U - Service center 100 to 1 GHz upgrade, 2 ch
- DSOX3024T - DSOXT3B1T34U - Service center 100 to 350 MHz upgrade, 4 ch
- DSOX3024T - DSOXT3B1T54U - Service center 100 to 500 MHz upgrade, 4 ch
- DSOX3024T - DSOXT3B1T104U - Service center 100 to 1 GHz upgrade, 4 ch
- DSOX3024T - DSOXT3B2T32U - Service center 200 to 350 MHz upgrade, 2 ch
- DSOX3024T - DSOXT3B2T52U - Service center 200 to 500 MHz upgrade, 2 ch
- DSOX3024T - DSOXT3B2T102U - Service center 200 MHz to 1 GHz upgrade, 2 ch
- DSOX3024T - DSOXT3B2T34U - Service center 200 to 350 MHz upgrade, 4 ch
- DSOX3024T - DSOXT3B2T54U - Service center 200 to 500 MHz upgrade, 4 ch
- DSOX3024T - DSOXT3B2T104U - Service center 200 MHz to 1 GHz upgrade, 4 ch
- DSOX3024T - DSOXT3B3T102U - Service center 350 MHz to 1 GHz upgrade, 2 ch
- DSOX3024T - DSOXT3B3T104U - Service center 350 MHz to 1 GHz upgrade, 4 ch
- DSOX3024T - DSOXT3B5T102U - Service center 500 MHz to 1 GHz upgrade, 2 ch
- DSOX3024T - DSOXT3B5T104U - Service center 500 MHz to 1 GHz upgrade, 4 ch
- DSOX3024T - DSOXLAN - LAN/VGA connection module
- DSOX3024T - DSOXGPIB - GPIB connection module
- DSOX3024T - D/MSOX3000T-A6J - ANSI Z540-1-1994 calibration
- DSOX3024T - D/MSOX3000T-AMG - ISO17025 compliant calibration with accreditation
| Model | DSOX3024T |
|---|
The Keysight DSOX3024T InfiniiVision 3000T X-Series oscilloscope offers 200 MHz bandwidth and four analog channels. It features an 8.5″ capacitive touch screen, 4 Mpts memory, and an ultra-fast 1 M wfms/s update rate.
Ideal for educational and basic diagnostic applications, with Zone touch triggering, serial decode support, and MSO upgrade options.
Testwall can supply the used Keysight DSOX3024T, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight DSOX3024T.
