Keysight (Agilent)

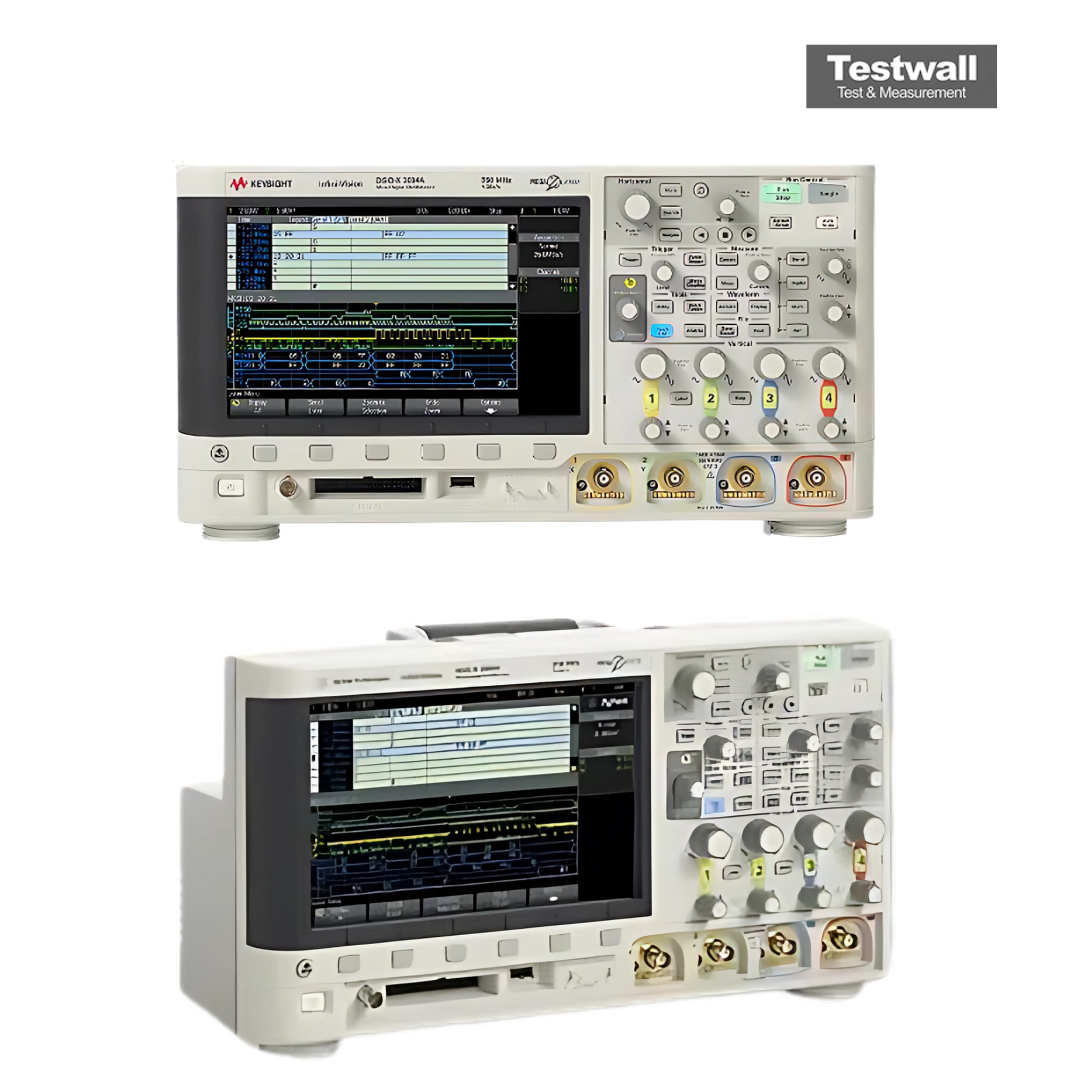

Keysight Technologies DSOX3034A
4 Ch 350 MHz Oscilloscope
4 canales analógicos Número de canales
300 MHz Ancho de banda
4 GSa/s (en tiempo real) Frecuencia de muestreo
4 Mpuntos estándar Profundidad de memoria
Pantalla táctil capacitiva WVGA de 8,5 pulgadas Tamaño de pantalla
| Atributo | Valor |
|---|---|
| Número de canales | 4 canales analógicos |
| Ancho de banda | 300 MHz |
| Frecuencia de muestreo | 4 GSa/s (en tiempo real) |
| Profundidad de memoria | 4 Mpuntos estándar |
| Tamaño de pantalla | Pantalla táctil capacitiva WVGA de 8,5 pulgadas |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Sensibilidad vertical | 1 mV/div a 10 V/div |
| Base de tiempos | 1 ns/div a 50 s/div |
| Resolución vertical | 8 bits |
| Conectividad | USB, LAN (LXI), salida auxiliar de disparo |
Keysight Technologies DSOX3034A Options:
- DSOX3034A - DSOX3MSO - Upgrade to 16 digital timing channels (MSO)
- DSOX3034A - DSOX3MEMUP - Memory upgrade to 4 Mpts half-channel
- DSOX3034A - DSOX3WAVEGEN - WaveGen built-in 20 MHz function generator
- DSOX3034A - DSOX3MASK - Mask limit testing application
- DSOX3034A - DSOX3SGM - Segmented memory application
- DSOX3034A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSOX3034A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- DSOX3034A - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DSOX3034A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- DSOX3034A - DSOX3BW34 - Bandwidth upgrade from 200 MHz to 350 MHz on 4 channel models
- DSOX3034A - DSOX3BW54 - Bandwidth upgrade from 350 MHz to 500 MHz on 4 channel models
- DSOX3034A - DSOXEDK - Educator's Oscilloscope Training Kit
- DSOX3034A - U1881A - Power measurement and analysis
- DSOX3034A - B4610A - PC offline viewing
- DSOX3034A - DSOXLAN - LAN/VGA connection module
- DSOX3034A - DSOXGPIB - GPIB connection module
| Model | DSOX3034A |
|---|
The Keysight (Agilent) DSOX3034A oscilloscope provides 350 MHz bandwidth, 4 analog channels, 4 GSa/s sampling, and a 2/4 Mpts memory depth. Features include 5-in-1 instrument design, MegaZoom IV, and a large 8.5” WVGA display.
Fully upgradeable, supporting waveform generator, voltmeter, and segmented memory.
Testwall can supply the used Keysight (Agilent) DSOX3034A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX3034A.
