Keysight (Agilent)

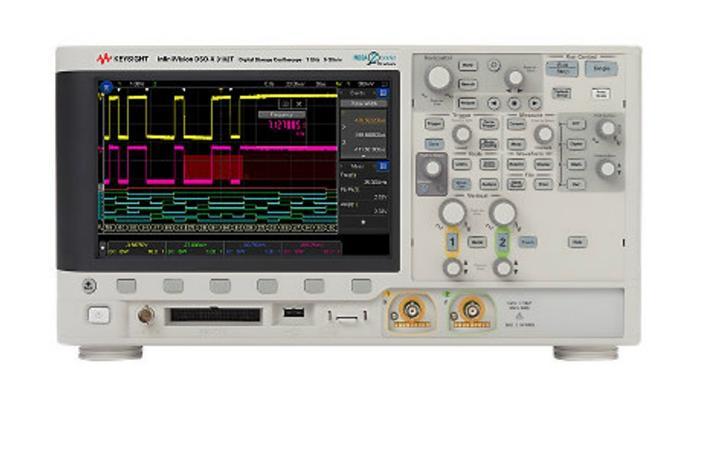

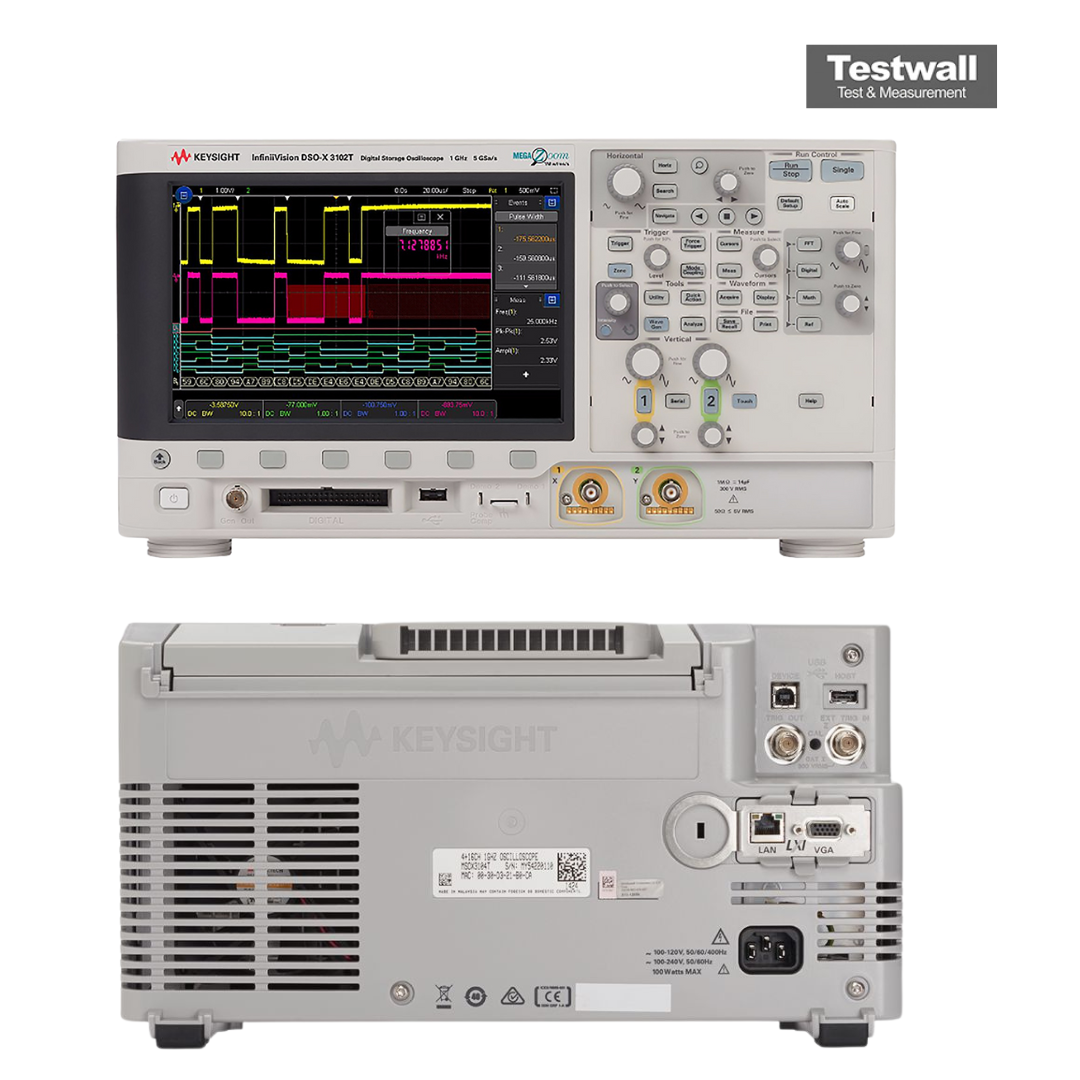

Keysight Technologies DSOX3102T
1 GHz, 2 Analog Channels Oscilloscope
1 GHz Ancho de banda
2 canales analógicos Número de canales
5 GSa/s Tasa de muestreo máxima
4 Mpuntos Profundidad de memoria
1.000.000 formas de onda por segundo Tasa de actualización de forma de onda
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales | 2 canales analógicos |
| Tasa de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 4 Mpuntos |
| Tasa de actualización de forma de onda | 1.000.000 formas de onda por segundo |
| Tamaño de pantalla | 8,5 pulgadas WVGA (800 x 480 píxeles) |
| Resolución vertical | 8 bits |
| Rango de base de tiempo | 1 ns/div a 50 s/div |
| Canales digitales (opción) | 16 canales digitales (MSO habilitado mediante licencia) |
| Interfaz de conectividad | USB, LAN (LXI), salida de pantalla VGA |
Keysight (Agilent) DSOX3102T Options:
- DSOX3102T - DSOXT3MSO - MSO upgrade: add 16 digital timing channels (N2756A MSO cable delivered separately)
- DSOX3102T - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX3102T - DSOX3COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX3102T - DSOXT3SENSOR - Sensor triggering and analysis (SENT)
- DSOX3102T - DSOXT3AUTO - Automotive serial triggering and analysis (CAN/CAN-FD/CAN-dbc/LIN/LIN symbolic)
- DSOX3102T - DSOX3FLEX - FlexRay serial triggering and analysis
- DSOX3102T - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- DSOX3102T - DSOX3AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- DSOX3102T - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- DSOX3102T - DSOXT3DVMCTR - Integrated digital voltmeter and 8-digit counter
- DSOX3102T - DSOX3PWR - Power analysis application
- DSOX3102T - DSOX3MASK - Mask limit testing
- DSOX3102T - DSOX3VID - Enhanced video/TV application package
- DSOX3102T - DSOXEDK - Education and training kit
- DSOX3102T - DSOXT3APPBNDL - SW application bundle license (includes DSOX3AERO, DSOX3AUDIO, DSOXT3AUTO, DSOX3COMP, DSOX3EMBD, DSOX3FLEX, DSOX3MASK, DSOX3PWR, DSOXT3SENSOR, DSOX3VID, DSOX3WAVEGEN, DSOXT3DVMCTR, DSOXEDK)
- DSOX3102T - DSOXT3B1T22 - License only 100MHz to 200MHz upgrade, 2ch
- DSOX3102T - DSOXT3B3T52 - License only 350MHz to 500MHz upgrade, 2ch
- DSOX3102T - DSOXT3B1T32U - Service center 100MHz to 350MHz upgrade, 2ch
- DSOX3102T - DSOXT3B1T52U - Service center 100MHz to 500MHz upgrade, 2ch
- DSOX3102T - DSOXT3B1T102U - Service center 100MHz to 1GHz upgrade, 2ch
- DSOX3102T - DSOXT3B2T32U - Service center 200MHz to 350MHz upgrade, 2ch
- DSOX3102T - DSOXT3B2T52U - Service center 200MHz to 500MHz upgrade, 2ch
- DSOX3102T - DSOXT3B2T102U - Service center 200MHz to 1GHz upgrade, 2ch
- DSOX3102T - DSOXT3B3T102U - Service center 350MHz to 1GHz upgrade, 2ch
- DSOX3102T - DSOXT3B5T102U - Service center 500MHz to 1GHz upgrade, 2ch
- DSOX3102T - DSOXLAN - LAN/VGA connection module
- DSOX3102T - DSOXGPIB - GPIB connection module
| Model | DSOX3102T |
|---|
El Keysight (Agilent) DSOX3102T ofrece un ancho de banda de 1 GHz con 2 canales, ideal para la captura precisa de señales en diseño digital y electrónica de potencia.
Incluye una tasa de actualización de formas de onda mejorada, generador de funciones opcional de 20 MHz, y conectividad USB, LAN y GPIB opcional.
Testwall puede suministrar el Keysight (Agilent) DSOX3102T usado, completamente probado. Con soporte experto y entrega global, Testwall asegura instrumentación de alto rendimiento con fiabilidad y calidad inigualables. Contáctenos directamente si necesita calibración o reparación del Keysight (Agilent) DSOX3102T
