Keysight (Agilent)

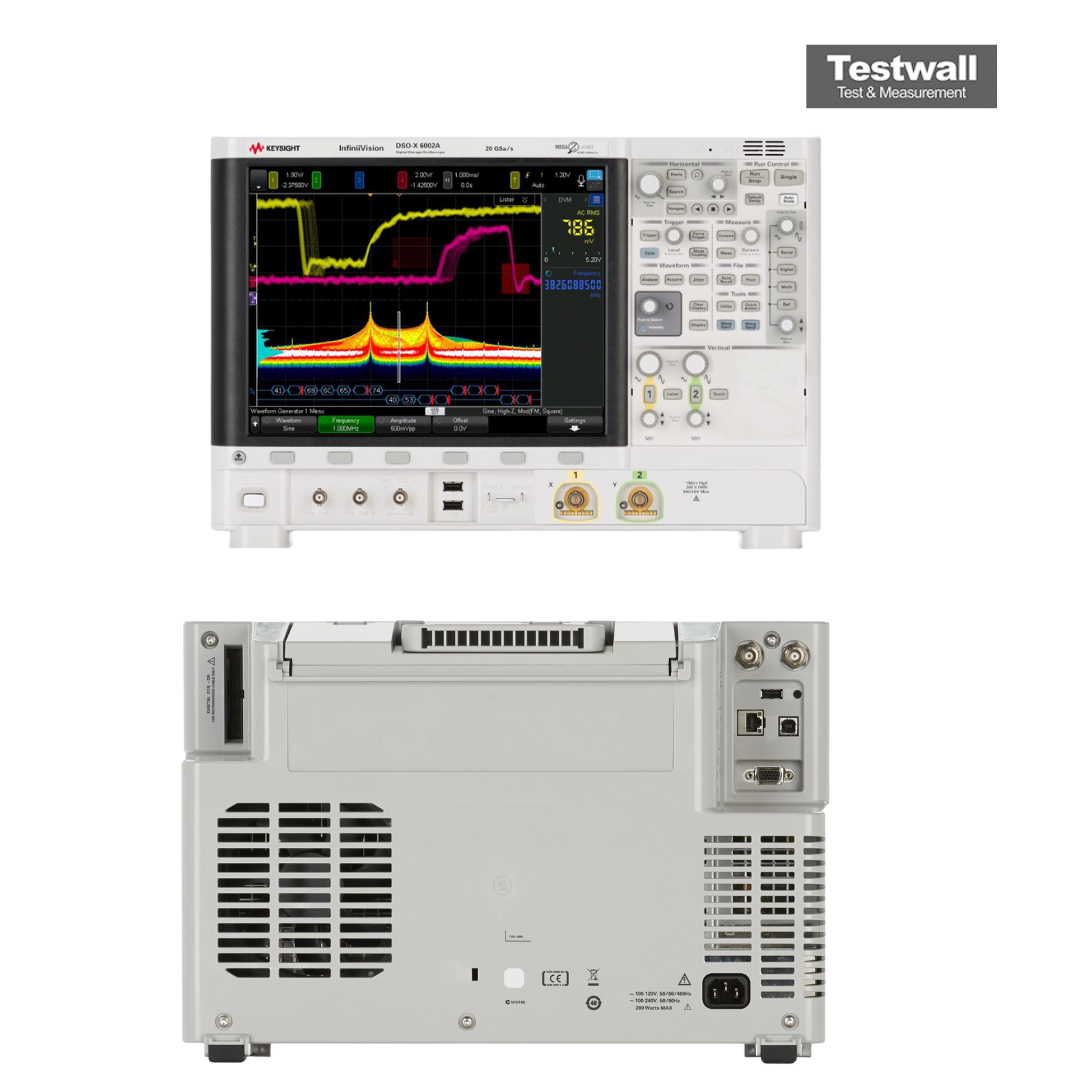

Keysight Technologies DSOX6002A
1 GHz, 2 Analog Channels Oscilloscope
1 GHz Ancho de banda
2 canales analógicos Número de canales
5 GSa/s Frecuencia de muestreo máxima
6 Mpuntos estándar (hasta 12 Mpuntos con opción) Profundidad de memoria
Hasta 1.000.000 formas de onda por segundo Tasa de actualización de forma de onda
| Atributo | Valor |
|---|---|
| Ancho de banda | 1 GHz |
| Número de canales | 2 canales analógicos |
| Frecuencia de muestreo máxima | 5 GSa/s |
| Profundidad de memoria | 6 Mpuntos estándar (hasta 12 Mpuntos con opción) |
| Tasa de actualización de forma de onda | Hasta 1.000.000 formas de onda por segundo |
| Pantalla | Pantalla táctil capacitiva de 12,1 pulgadas WXGA |
| Resolución vertical | 8 bits (hasta 12 bits en modo de alta resolución) |
| Rango de escala vertical | 1 mV/div a 5 V/div |
| Base de tiempos | 500 ps/div a 20 s/div |
| Conectividad e interfaces | USB, LAN (LXI), GPIB (opcional), salida de pantalla DisplayPort |
Keysight (Agilent) DSOX6002A Options:
- DSOX6002A - DSOX6B10T252BW - 1.0 to 2.5 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B10T402BW - 1.0 to 4.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B10T602BW - 1.0 to 6.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B25T402BW - 2.5 to 4.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B25T602BW - 2.5 to 6.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B40T602BW - 4.0 to 6.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6MSO - InfiniiVision 6000 X-Series oscilloscope MSO upgrade (16 digital channels)
- DSOX6002A - DSOX6APPBNDL - Software application bundle (includes all software applications)
- DSOX6002A - DSOX6EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSOX6002A - DSOX6COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX6002A - DSOX6USBFL - USB 2.0 Full/Low Speed serial decode and triggering
- DSOX6002A - DSOX6USBH - USB 2.0 Hi-Speed serial decode and triggering
- DSOX6002A - DSOX6AUTO - Automotive serial triggering and analysis (CAN, CAN-dbc, CAN-FD, LIN)
- DSOX6002A - DSOX6FLEX - FlexRay serial triggering and analysis
- DSOX6002A - DSOX6AUDIO - Audio serial triggering and analysis (I2S)
- DSOX6002A - DSOX6AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- DSOX6002A - DSOX6SENSOR - SENT (Single Edge Nibble Transmission) triggering and analysis
- DSOX6002A - DSOX6JITTER - Jitter and real time eye diagram analysis
- DSOX6002A - DSOX6WAVEGEN2 - Dual channel WaveGen 20 MHz AWG
- DSOX6002A - DSOXDVMCTR - Integrated digital voltmeter and 10 digit counter with totalizer
- DSOX6002A - DSOX6PWR - Power analysis application
- DSOX6002A - DSOX6MASK - Mask limit testing
- DSOX6002A - DSOX6USBSQ - USB 2.0 signal quality test
- DSOX6002A - DSOX6VID - Enhanced video/TV application package
- DSOX6002A - DSOX6FPGAX - FPGA dynamic probe option for Xilinx
- DSOX6002A - DSOXEDK - Education and training kit
- DSOX6002A - N8900A - Infiniium offline oscilloscope analysis software
- DSOX6002A - BV0000A - BenchVue software
| Model | DSOX6002A |
|---|
El osciloscopio Keysight (Agilent) DSOX6002A ofrece 2 GHz de ancho de banda en 2 canales con 20 GSa/s de muestreo. Pantalla táctil de 12,1 pulgadas, análisis lógico avanzado y protocolos serie opcionales.
Ideal para ingenieros de diseño y validación en el análisis detallado de señales digitales y pruebas de conformidad.
Testwall puede suministrar el Keysight (Agilent) DSOX6002A usado, completamente probado. Con soporte experto y entrega global, Testwall asegura equipos confiables y de alto rendimiento. Contáctenos para calibración o reparación del Keysight (Agilent) DSOX6002A.
