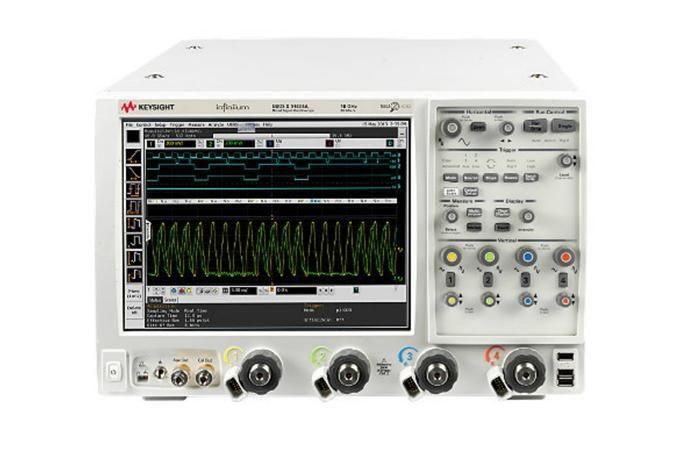

Keysight Technologies DSOX92504A
| Atributo | Valor |
|---|---|
| Ancho de banda | 25 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 80 GSa/s |
| Profundidad de memoria | 2 Gpuntos (estándar), hasta 4 Gpuntos (opcional) |
| Resolución vertical | 8 bits (hasta 12 bits en modo de alta resolución) |
| Pantalla | Pantalla táctil capacitiva de 15,6 pulgadas WXGA |
| Impedancia de entrada | 50 Ω / 1 MΩ |
| Rango de escala vertical | 1 mV/div a 1 V/div |
| Base de tiempos | 5 ps/div a 20 s/div |
| Conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight (Agilent) DSOX92504A Options:
- DSOX92504A - 050 - 50 Mpts/ch memory upgrade (20 Mpts to 50 Mpts)
- DSOX92504A - 100 - 100 Mpts/ch memory upgrade (50 Mpts to 100 Mpts)
- DSOX92504A - 200 - 200 Mpts/ch memory upgrade (100 Mpts to 200 Mpts)
- DSOX92504A - 500 - 500 Mpts/ch memory upgrade (200 Mpts to 500 Mpts)
- DSOX92504A - 01G - 1 Gpts/ch memory upgrade (500 Mpts to 1 Gpts)
- DSOX92504A - 02G - 2 Gpts/ch memory upgrade (1 Gpts to 2 Gpts)
- DSOX92504A - 001 - PrecisionProbe software
- DSOX92504A - 002 - EZJIT jitter analysis software
- DSOX92504A - 003 - High-Speed SDA and clock recovery
- DSOX92504A - 004 - EZJIT Plus jitter analysis software
- DSOX92504A - 007 - I2C/SPI Decode
- DSOX92504A - 009 - InfiniiScan software triggering
- DSOX92504A - 010 - User-defined function
- DSOX92504A - 012 - Serial data equalization
- DSOX92504A - 013 - InfiniiSim basic signal de-embedding
- DSOX92504A - 014 - InfiniiSim advanced signal de-embedding
- DSOX92504A - 015 - RS-232/UART decode
- DSOX92504A - 016 - USB protocol
- DSOX92504A - 017 - PCI-Express protocol
- DSOX92504A - 018 - SATA/SAS protocol
- DSOX92504A - 019 - MIPI D-PHY protocol
- DSOX92504A - 040 - User-defined application
- DSOX92504A - 044 - PCI Express gen 1/2/3 compliance
- DSOX92504A - 045 - DisplayPort source compliance
- DSOX92504A - 046 - 64b/66b 10Gbase-KR Ethernet Decode
- DSOX92504A - 047 - MIPI M-Phy verification
- DSOX92504A - 049 - PCI Express gen3 protocol
- DSOX92504A - 051 - DigRF v4 decode
- DSOX92504A - 052 - Unipro decode
- DSOX92504A - 054 - MHL compliance
- DSOX92504A - 056 - SVID decode
- DSOX92504A - 058 - DDR4 verification
- DSOX92504A - 059 - Thunderbolt compliance
- DSOX92504A - 060 - Energy Efficient Ethernet
- DSOX92504A - 061 - MATLAB Basic digital analysis package
- DSOX92504A - 062 - MATLAB Standard digital analysis package
- DSOX92504A - 063 - CAN/FlexRay decode
- DSOX92504A - 065 - BroadR-Reach compliance
- DSOX92504A - 070 - EZJIT Complete analysis software
- DSOX92504A - 073 - MOST compliance
- DSOX92504A - 077 - HDMI 2.0 compliance
- DSOX92504A - 076 - SAS-3 compliance
- DSOX92504A - A6J - ANSI Z540 Compliant calibration
- DSOX92504A - 1A7 - ISO17025 calibration
- DSOX92504A - 820 - DVD RW
- DSOX92504A - 805 - GPIB card-interface
- DSOX92504A - 823 - PCI Express card-interface
- DSOX92504A - 808 - Performance verification de-skew fixture
- DSOX92504A - 1CM - Rack mount kit option
- DSOX92504A - 801 - Removable solid state drive with Windows 7
| Model | DSOX92504A |
|---|
El osciloscopio Keysight (Agilent) DSOX92504A ofrece un impresionante ancho de banda de 25 GHz en 4 canales analógicos y una velocidad de muestreo de 80 GSa/s, ideal para el análisis preciso de datos en serie de alta velocidad y señales RF. Su interfaz intuitiva y memoria profunda permiten un análisis detallado. El procesamiento acelerado por hardware mejora la respuesta.
Con funciones avanzadas de disparo y decodificación, es perfecto para depurar y validar diseños complejos. Admite múltiples protocolos de señal.
Testwall puede suministrar el osciloscopio Keysight (Agilent) DSOX92504A usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentos de alto rendimiento, fiables y de alta calidad. Contáctenos si necesita calibración o reparación del Keysight (Agilent) DSOX92504A.
