Keysight (Agilent)

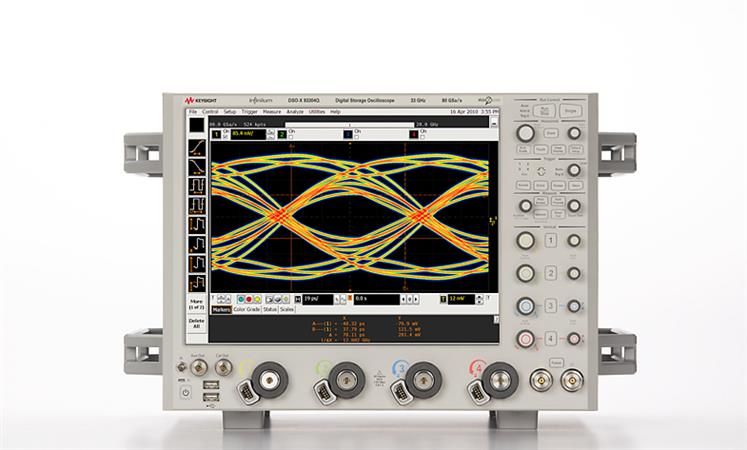

Keysight Technologies DSOX93304Q
Infiniium High-Performance Oscilloscope: 33GHz
33 GHz Ancho de banda
4 canales analógicos Número de canales
80 GSa/s Tasa de muestreo máxima
800 Mpts (estándar) Profundidad de memoria
Hasta 1.000.000 formas de onda por segundo Tasa de actualización de forma de onda
| Atributo | Valor |
|---|---|
| Ancho de banda | 33 GHz |
| Número de canales | 4 canales analógicos |
| Tasa de muestreo máxima | 80 GSa/s |
| Profundidad de memoria | 800 Mpts (estándar) |
| Tasa de actualización de forma de onda | Hasta 1.000.000 formas de onda por segundo |
| Resolución vertical | 8 bits (hasta 12 bits en modo de alta resolución) |
| Impedancia de entrada | 50 Ω |
| Rango de escala vertical | 1 mV/div a 1 V/div |
| Pantalla | Pantalla táctil capacitiva de 15 pulgadas |
| Conectividad | USB, LAN (LXI), GPIB (opcional) |
Keysight (Agilent) DSOX93304Q Options:
- DSOX93304Q - 050 - 50 Mpts/ch memory (standard on DSA models)
- DSOX93304Q - 100 - 100 Mpts/ch memory
- DSOX93304Q - 200 - 200 Mpts/ch memory
- DSOX93304Q - 500 - 500 Mpts/ch memory
- DSOX93304Q - 01G - 1 Gpt/ch memory
- DSOX93304Q - 02G - 2 Gpts/ch memory
- DSOX93304Q - 001 - PrecisionProbe - Characterize and compensate for loss from your input to your oscilloscope to 33 GHz
- DSOX93304Q - 827 - PrecisionProbe Advanced - Characterize and compensate for loss from your input to your oscilloscope to 63 GHz
- DSOX93304Q - 009 - InfiniiScan - Trigger on unique events including using zones on multiple channels and non-monotonic edges
- DSOX93304Q - 002 - EZJIT - Basic jitter analysis with measurement trending, time interval error and many more measurements
- DSOX93304Q - 004 - EZJIT Plus - Get in-depth analysis of your jitter by decomposing your jitter
- DSOX93304Q - 070 - EZJIT Complete - Understand your full real time by decomposing the noise that is impacting your margins
- DSOX93304Q - 003 - Serial Data Analysis - Recover clocks to 120 Gb/s and view real-time eyes; run mask testing
- DSOX93304Q - 012 - Serial Data Equalization - Properly emulate your design equalizers including FFE, CTLE and DFE
- DSOX93304Q - 013 - InfiniiSim Basic - Waveform transformation software to remove or add three elements in your link
- DSOX93304Q - 014 - InfiniiSim Advanced - Waveform transformation software to remove or add 27 elements in your link
- DSOX93304Q - 010 - User-Defined Function - Create custom functions that run live on your oscilloscope with MathWorks MATLAB software
- DSOX93304Q - 061 - MATLAB Basic - Purchase an introductory MATLAB software package to acquire scope measurements into the MATLAB environment
- DSOX93304Q - 062 - MATLAB Standard - Purchase a typical MATLAB software package, signal processing and filter design toolboxes on the same PO as your scope
- DSOX93304Q - 065 - User-Defined Function with MATLAB - Create and execute custom functions that run live on your oscilloscope; includes MATLAB standard software
- DSOX93304Q - 040 - User-Defined Application - Fully customizable automated application for your Infiniium oscilloscope
- DSOX93304Q - 112 - PCI Express Gen 1/2/3/4 Compliance - Guarantee your PCI Express Gen4 designs
- DSOX93304Q - 077 - HDMI 2.0 Compliance - Quickly verify and debug your high-definition multimedia interface
- DSOX93304Q - 043 - SAS-2 Compliance - Automatically execute SAS electrical checklist tests at each of the IT, CT, IR, and CR interface points
- DSOX93304Q - 076 - SAS-3 Compliance - Automatically execute SAS electrical checklist tests at each of the IT, CT, IR, and CR interface points
- DSOX93304Q - 045 - DisplayPort Source Compliance - Verify and debug your DisplayPort interface designs
- DSOX93304Q - 031 - DDR1 Verification - Save time with automated testing based on JEDEC DDR1 and LPDDR1 specifications
- DSOX93304Q - 032 - DDR3 Verification - Save time with automated testing based on JEDEC DDR3 specifications
- DSOX93304Q - 033 - DDR2 Verification - Save time with automated testing based on JEDEC DDR2 and LPDDR2 specifications
- DSOX93304Q - 074 - 10GBASE-KR Compliance - Test to IEEE 802.3 clause 49 over a single backplane lane
- DSOX93304Q - 035 - MIPI D-PHY Verification - Execute D-PHY electrical checklist tests for CSI and DSI architectures
- DSOX93304Q - 047 - MIPI M-PHY Verification - Execute M-PHY electrical tests
- DSOX93304Q - 060 - Energy Efficient Ethernet - Debug your 1000BASE-T, 100BASE-TX, and 10BASE-T Ethernet designs
- DSOX93304Q - 036 - 10-GBASE-T Compliance - Coverage of the 10GBASE-T transmitter electrical specifications
- DSOX93304Q - 030 - XAUI Compliance - XAUI validation with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO support
- DSOX93304Q - 038 - SATA 6G Compliance - Automated compliance testing for 1.5-Gbps, 3.0-Gbps and 6.0-Gbps SATA, and eSATA transmitter
- DSOX93304Q - 029 - USB 2.0 Compliance - USB-IF recognized compliance for low/full and low/full/high-speed USB automated electrical test
- DSOX93304Q - 041 - USB 3.0 Compliance - Validate and debug your USB 3.0 silicon, host, hub or device
- DSOX93304Q - 046 - USB HSIC - Validate and debug USB high speed inter-connect devices
- DSOX93304Q - 054 - MHL Compliance - Validates MHL source designs according to the MHL 1.2 standard
- DSOX93304Q - 059 - Thunderbolt Compliance - Measure the transmitter with the accuracy of the 90000 Q-Series
- DSOX93304Q - 049 - PCI Express Gen3 Protocol - Time-correlated views of physical and transaction layer errors; 128/130-bit decoding on Gen3 traffic
- DSOX93304Q - 048 - Ethernet 10GBASE-KR Protocol - Full protocol analysis for 10GBASE-KR 64/66-bit decoder
- DSOX93304Q - 018 - SATA/SAS Protocol - Simplify the validation of your SATA/SAS designs with full-capability protocol viewer for 3G, 6G and 12 Gbit/s
- DSOX93304Q - 051 - DigRF v4 Protocol - Extend your scope capability with DigRF v4 triggering and decode
- DSOX93304Q - 007 - I2C/SPI Protocol - Extend your scope capability with I2C and SPI triggering and decode
- DSOX93304Q - 015 - RS232/UART Protocol - Easily view the information sent over an RS-232, RS-422, RS-485 or other UART serial buses
- DSOX93304Q - 016 - USB 2.0 Protocol - Trigger on and quickly view USB packets, payload, header and detailed information
- DSOX93304Q - 017 - PCI Express Gen1 and 2 Protocol - Quickly view packets, payload, header, and detailed information
- DSOX93304Q - 019 - MIPI D-PHY Protocol - Easily view the information sent over MIPI serial buses
- DSOX93304Q - 063 - CAN/FlexRay Protocol - View both protocol-layer information and physical-layer signal characteristics for CAN, LIN, CAN-FD, and FlexRay buses
- DSOX93304Q - 042 - JTAG Protocol - Eliminate the difficult task of manually determining JTAG TAP controller states, instruction, and data register decode
- DSOX93304Q - 056 - SVID Protocol - Decode and search on SVID technology
- DSOX93304Q - 052 - Unipro Decode - Decode at the protocol level
- DSOX93304Q - A6J - ANSI Z540 Compliant Calibration
- DSOX93304Q - 1A7 - ISO17025 Calibration
- DSOX93304Q - 820 - DVD RW
- DSOX93304Q - 808 - Performance Verification De-skew Fixture for InfiniiMax III Probe
- DSOX93304Q - 1CM - Rackmount Kit Option
| Model | DSOX93304Q |
|---|
El osciloscopio de alto rendimiento Keysight (Agilent) DSOX93304Q ofrece un ancho de banda líder de 33 GHz, capturando tiempos de subida de señal de hasta 5 ps y tasas de datos de hasta 120 Gbit/s. Basado en la premiada serie Infiniium 90000 X, garantiza una integridad de señal óptima y visualización precisa de formas de onda. La FFT integrada permite un análisis eficiente en el dominio de frecuencia sin un analizador de espectro independiente, mientras que las aplicaciones de cumplimiento y la compensación avanzada PrecisionProbe simplifican las pruebas de alta velocidad.
Diseñado para el análisis avanzado de señales y pruebas de cumplimiento automatizadas, el DSOX93304Q mejora los flujos de trabajo de laboratorio con integración fluida y capacidades de medición precisas, ideal para aplicaciones de alta frecuencia.
Testwall puede suministrar el Keysight (Agilent) DSOX93304Q usado, completamente probado. Con soporte experto y entrega global, Testwall garantiza instrumentación de alto rendimiento con una fiabilidad y calidad de servicio inigualables. Por favor contáctenos directamente si necesita calibración o reparación del Keysight (Agilent) DSOX93304Q.
